How Does a Medium Voltage Outdoor Ring Main Unit RMU Improve Modern Power Distribution Systems?
2026-08-04
In today's rapidly developing power infrastructure, reliable electricity distribution has become a critical requirement for industrial facilities, renewable energy projects, marine applications, urban networks, and commercial buildings. A Medium Voltage Outdoor Ring Main Unit RMU is designed to provide safe, stable, and flexible medium-voltage power management solutions, especially in outdoor environments where equipment must withstand complex weather conditions and demanding operating requirements. With advanced protection functions, compact design, and high operational reliability, RMUs have become an essential component in modern distribution networks. As a professional electrical equipment provider, Wenzhou Huajidian Technology Co. Ltd. focuses on delivering high-performance RMU solutions with strong customization capabilities, including ship-type customization to meet the special requirements of marine power systems.

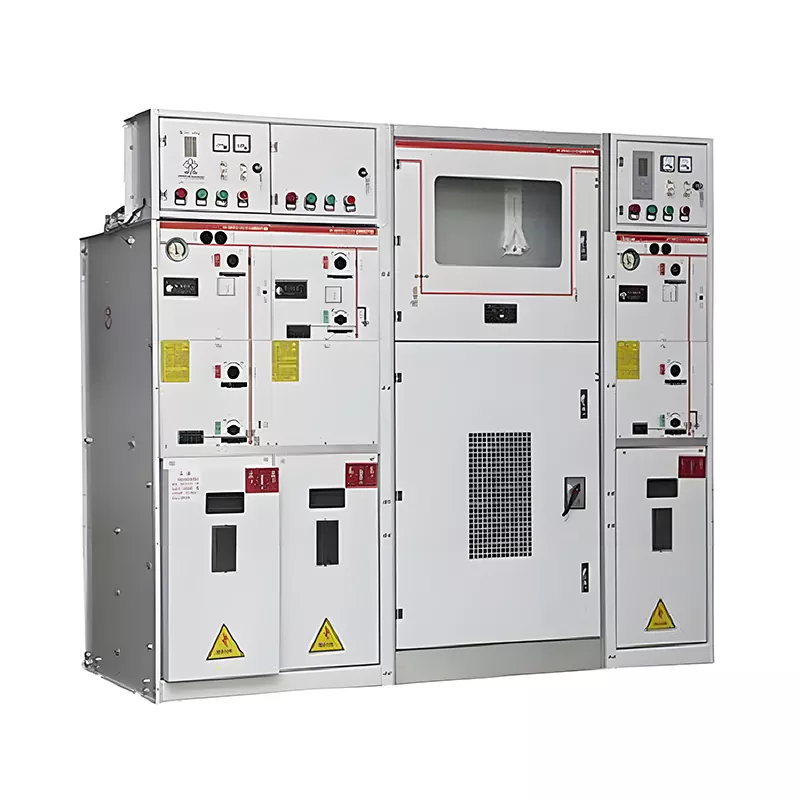

What Is a Medium Voltage Outdoor Ring Main Unit RMU?
A Medium Voltage Outdoor Ring Main Unit RMU is a compact switchgear device used in medium-voltage electrical distribution networks, typically operating within the range of 6kV to 40.5kV. It integrates switching, protection, control, and power distribution functions into one enclosed unit.
Unlike traditional open-type switchgear systems, outdoor RMUs are designed with sealed structures that provide excellent protection against dust, moisture, temperature variations, and environmental impacts. They are commonly installed in outdoor substations, industrial parks, wind farms, solar power plants, ports, rail systems, and urban power networks.
The main purpose of an RMU is to ensure continuous power supply by creating a ring network structure. When one section of the power line fails, the RMU can isolate the fault area while maintaining electricity supply to other sections.
Main Components of Medium Voltage Outdoor Ring Main Unit RMU
| Component | Function |
|---|---|
| Load Break Switch | Controls normal current switching operations |
| Circuit Breaker | Provides fault interruption and protection |
| Earthing Switch | Ensures safe maintenance operations |
| Busbar System | Transfers electrical power between circuits |
| Protection Relay | Detects abnormal conditions and triggers protection |
| Enclosure Cabinet | Protects internal equipment from outdoor environments |
Why Is a Medium Voltage Outdoor Ring Main Unit RMU Important?
The increasing demand for stable electricity has made power distribution systems more complex. Any unexpected power interruption can result in production losses, equipment damage, or safety risks. A reliable Medium Voltage Outdoor Ring Main Unit RMU helps solve these challenges by improving network stability and operational safety.
1. Ensuring Reliable Power Supply
The ring network design allows electricity to flow through multiple paths. If a fault occurs in one section, the affected area can be disconnected while other areas continue operating normally.
This feature is especially valuable for:
- Industrial manufacturing facilities
- Data centers
- Renewable energy stations
- Transportation infrastructure
- Marine electrical systems
2. Improving Electrical Safety
Medium voltage systems involve high electrical risks. RMUs provide multiple safety protections, including insulation protection, fault isolation, and grounding systems.
By reducing direct exposure to high-voltage components, RMUs help improve the safety of operators and maintenance personnel.
3. Reducing Maintenance Costs
Compared with traditional switchgear solutions, outdoor RMUs require less installation space and lower maintenance effort. Their sealed structure minimizes the impact of environmental factors, extending equipment service life.
How Does a Medium Voltage Outdoor Ring Main Unit RMU Work?
A Medium Voltage Outdoor Ring Main Unit RMU operates by controlling and protecting electrical circuits within a ring distribution system.
The basic working process includes:
-
Power Input
Electricity enters the RMU from the main power source. -
Power Distribution
The internal switching system distributes electricity to different outgoing feeders. -
Fault Detection
Protection devices monitor current and voltage conditions continuously. -
Fault Isolation
When abnormal conditions occur, the RMU disconnects the faulty section. -
Power Restoration
Other sections continue receiving power through alternative routes.
This intelligent protection method ensures higher system availability and minimizes downtime.
What Are the Main Applications of Outdoor RMU Systems?
A Medium Voltage Outdoor Ring Main Unit RMU can be applied in various industries due to its flexible configuration and reliable performance.
| Application Area | Benefits |
|---|---|
| Solar Power Plants | Stable renewable energy transmission |
| Wind Energy Projects | Reliable outdoor power switching |
| Industrial Plants | Continuous production power supply |
| Urban Distribution Networks | Compact and efficient electricity management |
| Ports and Marine Facilities | Adaptation to harsh environments |
| Railway Systems | Safe medium-voltage distribution |
How Does Custom Ship-Type Design Improve RMU Applications?
One of the key advantages of modern RMU solutions is the ability to provide customized designs according to specific application environments. Wenzhou Huajidian Technology Co. Ltd. supports ship-type customization, allowing RMU products to be specially designed for marine and offshore power systems.
Marine environments create unique challenges, including high humidity, salt spray corrosion, vibration, limited installation space, and strict safety requirements. Standard electrical equipment may not fully meet these conditions. Customized ship-type RMUs can optimize structural design, protection levels, installation methods, and electrical configurations.
Advantages of Ship-Type Customized RMU Solutions
| Custom Feature | Customer Benefit |
|---|---|
| Marine-grade enclosure design | Better corrosion resistance in seawater environments |
| Customized dimensions | Fits limited ship installation spaces |
| Flexible voltage configurations | Matches different vessel power systems |
| Enhanced sealing protection | Prevents moisture and dust intrusion |
| Special mounting solutions | Improves installation efficiency |
Ship-type customization makes RMUs suitable for:
- Cargo vessels
- Offshore platforms
- Engineering ships
- Passenger ships
- Marine energy systems
This capability allows customers to receive a complete power distribution solution rather than a standard product that requires additional modifications.
What Performance Advantages Does a Medium Voltage Outdoor Ring Main Unit RMU Provide?
A high-quality outdoor RMU offers multiple advantages that improve electrical system efficiency and reliability.
Compact Structure
RMUs combine multiple electrical functions into a single compact cabinet, saving installation space and simplifying system design.
High Environmental Protection
Outdoor models are built with strong protection against:
- Rain
- Dust
- Wind
- Temperature changes
- Coastal environments
Flexible Configuration
Customers can select different switching methods, protection devices, voltage levels, and cabinet structures according to project requirements.
Long Service Life
Durable materials and reliable electrical components help extend operational lifespan and reduce replacement frequency.
Medium Voltage Outdoor Ring Main Unit RMU vs Traditional Switchgear
| Comparison | Outdoor RMU | Traditional Switchgear |
|---|---|---|
| Installation Space | Compact | Requires larger area |
| Network Reliability | High through ring structure | Depends on system design |
| Maintenance Requirement | Lower | Higher |
| Outdoor Adaptability | Excellent | Limited without additional protection |
| Customization Ability | Flexible | Usually more complicated |
The comparison shows why RMUs are increasingly preferred for modern distribution projects that require reliability, safety, and space efficiency.
Why Choose Wenzhou Huajidian Technology Co. Ltd. for RMU Solutions?
Selecting the right supplier is essential for ensuring stable power system performance. Wenzhou Huajidian Technology Co. Ltd. provides professional medium-voltage electrical solutions with a focus on product reliability, engineering flexibility, and customized service.
The company offers:
- High-quality Medium Voltage Outdoor Ring Main Unit RMU solutions
- Professional technical support
- Flexible project-based customization
- Ship-type customized designs for marine applications
- Reliable manufacturing standards
- Solutions suitable for different industries and environments
By combining advanced electrical technology with customer-focused engineering, Wenzhou Huajidian Technology Co. Ltd. helps customers build safer and more efficient power distribution networks.
Frequently Asked Questions (FAQ)
1. What is the main function of a Medium Voltage Outdoor Ring Main Unit RMU?
A Medium Voltage Outdoor Ring Main Unit RMU mainly controls, protects, and distributes medium-voltage electricity while improving network reliability through ring-type power distribution.
2. Can an outdoor RMU be customized for marine applications?
Yes. Professional manufacturers can provide ship-type customization, including special enclosure designs, corrosion resistance improvements, and customized structures for vessel installation requirements.
3. Where are Medium Voltage Outdoor Ring Main Unit RMU systems commonly used?
They are widely used in renewable energy projects, industrial facilities, urban networks, ports, offshore platforms, and transportation systems.
4. Why is customization important for RMU selection?
Different projects have different voltage requirements, installation conditions, and environmental challenges. Customized RMU solutions ensure better compatibility, safety, and long-term performance.
Conclusion
A Medium Voltage Outdoor Ring Main Unit RMU plays an important role in modern electrical distribution by providing reliable power control, fault protection, and flexible network management. Its compact structure, strong outdoor adaptability, and customization advantages make it suitable for a wide range of industrial and marine applications.
With professional manufacturing capabilities and strong support for ship-type customization, Wenzhou Huajidian Technology Co. Ltd. delivers dependable RMU solutions designed for challenging environments and specialized power requirements. For customized medium-voltage distribution solutions, please contact us today to discuss your project requirements and find the most suitable RMU solution.
