How Does a Safety Light Curtain Work?

---

Table of Contents

• 1. Overview of Safety Light Curtain Technology
• 2. Working Principle Explained
• 3. Key Components and Structure
• 4. Industrial Applications
• 5. How to Choose the Right Safety Light Curtain
• 6. Installation and Operational Best Practices
• 7. Maintenance and Troubleshooting
• 8. Comparison Table of Common Configurations
• 9. Frequently Asked Questions (FAQ)

---

1. Overview of Safety Light Curtain Technology

A Safety Light Curtain is a type of optoelectronic protective device widely used in industrial automation environments. It creates a two-dimensional detection field using infrared light beams transmitted between a sender and receiver unit. When an object, such as a human hand or body part, interrupts one or more beams, the system instantly sends a stop signal to the machine control system. This prevents accidents in high-risk operations such as stamping, cutting, pressing, and robotic handling. Unlike physical barriers, Safety Light Curtains allow operators to work more efficiently while maintaining a high level of protection.

---

2. Working Principle Explained

The operating mechanism of a Safety Light Curtain is based on synchronized infrared beam transmission and reception. - The emitter projects multiple infrared beams at fixed intervals. - The receiver continuously monitors whether all beams are being received. - If any beam is blocked, the system detects an intrusion. - A safety output signal is immediately triggered, stopping machine motion. This reaction typically occurs within milliseconds, significantly reducing the risk of injury. The core safety logic can be summarized as: - Continuous beam scanning - Real-time interruption detection - Instant machine shutdown signal This makes Safety Light Curtains essential for high-speed production lines.

---

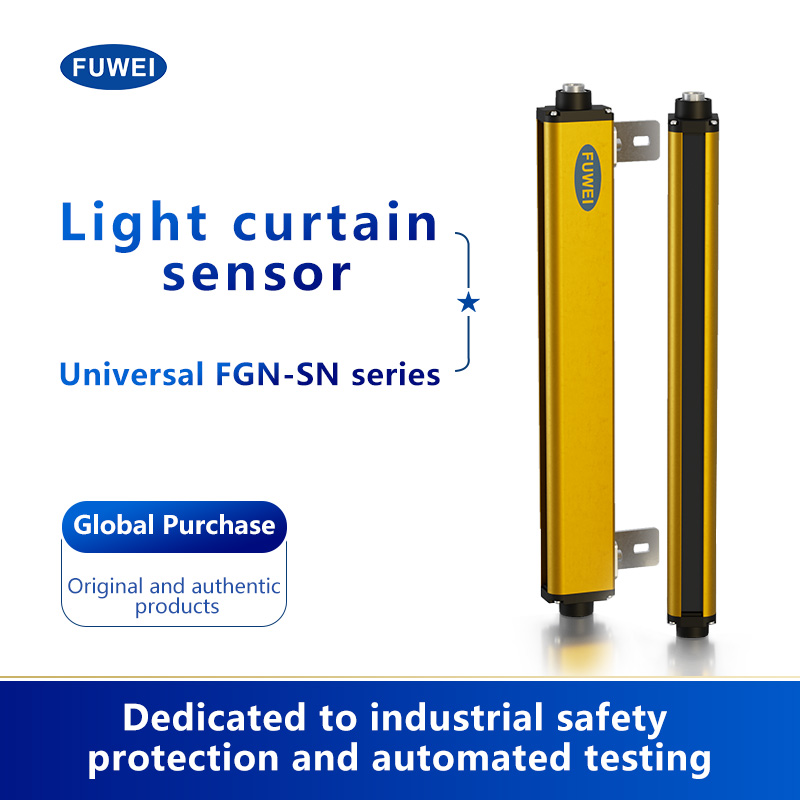

3. Key Components and Structure

A typical Safety Light Curtain system includes the following components:

• Emitter Unit: Generates infrared light beams
• Receiver Unit: Detects incoming beams
• Control Module: Processes interruption signals
• Synchronization Cable: Ensures alignment between emitter and receiver
• Mounting Brackets: Secure installation support

Each component plays a crucial role in ensuring detection accuracy and system reliability.

---

4. Industrial Applications

Safety Light Curtains are widely used across multiple industries due to their flexibility and reliability. Common application areas include:

• Metal stamping and pressing machines
• CNC machining centers
• Robotic assembly lines
• Packaging equipment
• Injection molding machines
• Automotive manufacturing systems

In advanced production environments, companies like Fuwei integrate Safety Light Curtains into automated systems to improve both productivity and operator safety.

---

5. How to Choose the Right Safety Light Curtain

Selecting the correct model depends on several technical and operational factors:

• Detection resolution: Determines minimum object size detection
• Protection height: Must match machine opening height
• Response time: Faster response improves safety
• IP rating: Ensures resistance to dust and water
• Safety certification: Compliance with industrial standards

Below is a simplified selection guide:

Application Type	Recommended Resolution	Typical Use Case
Finger Protection	10–20 mm	Precision stamping machines
Hand Protection	20–40 mm	Assembly lines
Body Protection	40–90 mm	Heavy industrial equipment

Choosing correctly reduces downtime and improves operational safety compliance.

---

6. Installation and Operational Best Practices

Proper installation is essential to ensure accurate performance. Key guidelines include:

• Ensure perfect alignment between emitter and receiver
• Avoid reflective surfaces near the detection zone
• Maintain stable mounting to prevent vibration interference
• Regularly test emergency stop response
• Keep optical surfaces clean and unobstructed

In industrial deployments, Fuwei recommends routine calibration checks to ensure system integrity in long-term operation.

---

7. Maintenance and Troubleshooting

Although Safety Light Curtains are designed for durability, periodic maintenance is necessary. Common issues include:

• Misalignment between units
• Dust accumulation on lenses
• Electrical signal interference
• Loose mounting hardware

Recommended maintenance actions:

• Clean lenses weekly in dusty environments
• Inspect brackets monthly
• Perform system self-test before shifts
• Check wiring integrity regularly

Proper maintenance ensures long-term reliability and reduces unexpected shutdowns.

---

8. Comparison Table of Common Configurations

Type	Beam Spacing	Protection Level	Best Use
Type 2 Light Curtain	Standard	Medium	Low-risk machinery
Type 4 Light Curtain	High precision	High	High-risk automation
Muting Function Models	Adjustable	Industrial logistics	Material handling lines

Selecting the right configuration ensures optimal balance between safety and efficiency.

---

9. Frequently Asked Questions (FAQ)

Q1: Can Safety Light Curtains replace physical guards?
They can replace physical barriers in many applications, but must be selected according to risk assessment requirements.

Q2: How fast does a Safety Light Curtain respond?
Response times are typically in milliseconds, depending on model and configuration.

Q3: Are they suitable for outdoor environments?
Some industrial-grade models with high IP ratings can be used in harsh environments, but proper enclosure is recommended.

Q4: What causes false triggering?
Common causes include misalignment, reflective surfaces, or electrical interference.

Q5: Can Fuwei provide customized solutions?
Yes, Fuwei offers tailored Safety Light Curtain solutions for different industrial automation requirements.

---

Conclusion

Safety Light Curtains are essential components in modern industrial safety systems. They provide non-contact protection, enhance operational efficiency, and significantly reduce workplace injury risks. Proper selection, installation, and maintenance are critical for optimal performance. Businesses looking to upgrade their safety systems can rely on advanced solutions provided by Fuwei, which offers robust and adaptable Safety Light Curtain technologies designed for demanding industrial environments.

For more product details or technical consultation, contact us today and let Fuwei help you build a safer and more efficient production line.
