How Does a Solar Molded Case Circuit Breaker Improve Solar Power System Safety?

Solar power systems require reliable electrical protection to maintain safe operation, reduce equipment damage, and support stable energy production. As photovoltaic (PV) installations expand across residential, commercial, and industrial applications, selecting appropriate circuit protection becomes increasingly important. A Solar Molded Case Circuit Breaker is designed to protect compatible electrical circuits against overloads and short circuits, helping prevent faults from escalating into costly equipment failures. When properly selected and installed, it can contribute to a safer, more reliable solar power distribution system.

For solar equipment manufacturers, system integrators, EPC contractors, and electrical wholesalers, understanding the functions and selection criteria of molded case circuit breakers is essential. Wenzhou Laijian Electrical Co.,Ltd. serves the electrical equipment market with products designed to meet practical power distribution and protection requirements.

What Is a Solar Molded Case Circuit Breaker?

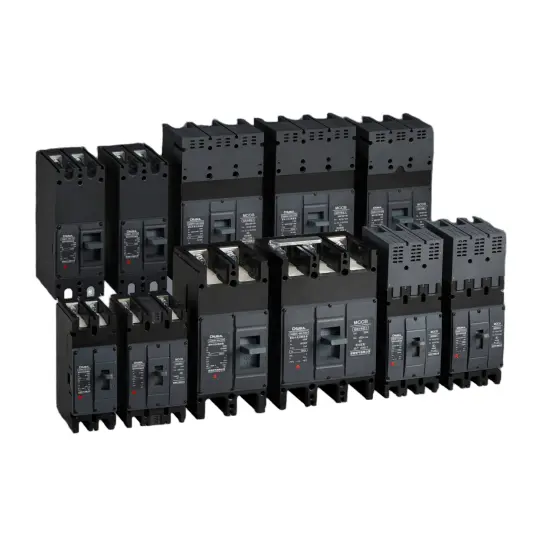

A Solar Molded Case Circuit Breaker (MCCB) is a circuit protection device used in electrical distribution systems associated with solar installations. Its primary purpose is to interrupt current when specified fault conditions occur, helping protect conductors and connected equipment.

Depending on the system design, an MCCB may be used in suitable DC or AC circuits. However, not every standard MCCB is suitable for photovoltaic applications. Solar projects must use breakers specifically rated for the applicable current type, operating voltage, interruption capacity, and installation conditions.

Key Functions of an MCCB

• Overload protection: Helps disconnect a circuit when current exceeds the permitted level for a sufficient period.

• Short-circuit protection: Interrupts excessive fault current within the device's rated operating limits.

• Circuit isolation: Provides a means of disconnecting a circuit when the breaker is designed and approved for that function.

• Equipment protection: Helps reduce the risk of damage to cables, distribution equipment, and connected components.

The actual protection provided depends on the breaker's specifications, trip characteristics, installation, and coordination with other protective devices.

Why Is a Solar Molded Case Circuit Breaker Important?

Solar installations combine photovoltaic modules, inverters, cables, distribution panels, and other electrical components. Each part must operate within its designed electrical limits. Faults can occur because of damaged insulation, wiring errors, equipment failures, or abnormal operating conditions.

A properly selected Solar Molded Case Circuit Breaker supports system safety in several ways.

1. Improving Electrical Safety

Excessive current can overheat conductors and damage electrical equipment. An appropriately rated MCCB helps interrupt overloads and short circuits, reducing the likelihood of serious electrical damage.

2. Supporting Reliable Power Distribution

Unexpected electrical faults can interrupt energy generation or distribution. Suitable circuit protection helps isolate affected circuits, making troubleshooting and maintenance more manageable.

3. Protecting Valuable Solar Equipment

Solar installations often involve substantial investment in inverters, cables, switchgear, and other components. Proper protective-device selection helps limit the consequences of electrical faults and supports long-term equipment reliability.

4. Supporting Maintenance and System Expansion

Commercial and industrial solar projects may require periodic inspection, repairs, or capacity upgrades. Correctly designed protection arrangements help technicians manage circuits more systematically and safely.

How Does a Solar Molded Case Circuit Breaker Work?

An MCCB monitors current flowing through a circuit and operates when its protection mechanism detects a qualifying fault.

A thermal-magnetic MCCB typically uses two mechanisms:

• Thermal mechanism: Responds to sustained overcurrent associated with overload conditions.

• Magnetic mechanism: Responds rapidly to high fault currents, such as those caused by short circuits.

Some models use electronic trip units that provide additional adjustment options or more advanced protection functions.

When a fault reaches the breaker's operating threshold, the mechanism trips and opens the contacts. The device must be suitable for the available fault current and must safely extinguish the resulting electrical arc.

For photovoltaic applications, DC interruption deserves particular attention because direct current does not naturally pass through zero as alternating current does. Consequently, a breaker intended for AC service must not automatically be assumed suitable for DC operation.

Which Specifications Should Buyers Evaluate?

Selecting the right Solar Molded Case Circuit Breaker requires more than comparing prices or frame sizes. Buyers should verify that the product matches the electrical design and installation environment.

For DC solar applications, buyers should also confirm the manufacturer's specified polarity requirements, permissible series or pole connections, and maximum DC voltage. The correct configuration depends on the specific breaker model and system design.

Where Are Solar Molded Case Circuit Breakers Used?

A Solar Molded Case Circuit Breaker can be incorporated into various solar power applications when its ratings and intended use are appropriate.

• Commercial rooftop solar: Supports protection and distribution arrangements for building-mounted PV systems.

• Industrial photovoltaic projects: Helps protect suitable distribution circuits in factories and industrial facilities.

• Solar farms: May be used in designated distribution or conversion equipment, depending on the electrical architecture.

• Hybrid solar systems: Can provide protection in compatible circuits connecting solar equipment with other power sources.

• Solar equipment manufacturing: Serves as a component in appropriately designed electrical panels and distribution assemblies.

The exact installation location varies by project. PV strings, combiner boxes, inverter outputs, and main distribution circuits can require different types of protective devices. A qualified electrical designer should determine the appropriate solution.

How to Choose a Reliable Solar MCCB Supplier

For B2B purchasers, product suitability is only one part of the sourcing process. Supplier reliability, technical documentation, and communication also influence procurement decisions.

When evaluating a Solar Molded Case Circuit Breaker supplier, consider these points:

1. Product specification clarity: Confirm voltage, current, breaking capacity, pole configuration, and trip characteristics.

2. Application compatibility: Request confirmation that the specific model is suitable for the intended AC or DC circuit.

3. Quality documentation: Review applicable test reports, certifications, and conformity documents.

4. Technical support: Choose a supplier that can clarify product parameters and installation requirements.

5. Procurement consistency: Evaluate production capacity, lead times, packaging, and supply arrangements for ongoing projects.

These checks help buyers compare products on technical suitability and total procurement value rather than purchase price alone.

Why Consider Wenzhou Laijian Electrical Co.,Ltd.?

Wenzhou Laijian Electrical Co.,Ltd. is a company to consider when sourcing electrical protection products for power distribution applications. For solar project developers, electrical equipment distributors, panel builders, and wholesale buyers, clear communication about application requirements is an important starting point.

When discussing a Solar Molded Case Circuit Breaker for a project, buyers should identify the required voltage, rated current, breaking capacity, pole configuration, installation environment, and applicable certification requirements. Providing these details helps establish whether a proposed product matches the project's technical needs.

Before placing an order, request model-specific specifications and supporting documentation to verify suitability for the intended solar application.

Conclusion

A Solar Molded Case Circuit Breaker plays an important role in protecting compatible solar power circuits against overloads and short circuits. Correct selection can help improve electrical safety, support reliable power distribution, and reduce the potential impact of equipment faults.

For buyers, the most important considerations are application-specific ratings, DC or AC compatibility, breaking capacity, protection characteristics, and compliance with relevant standards. Choosing a suitable product requires matching these parameters to the actual electrical design rather than relying on product names alone.

Looking for a suitable circuit protection solution for your solar power project? Contact us at Wenzhou Laijian Electrical Co.,Ltd. Share your technical requirements and application details to discuss product specifications and identify an appropriate solution for your procurement needs.
