As modern electronic devices continue to become smaller, engineers face increasing challenges in achieving high power control within limited spaces. A Super Miniature High Power Relay 20A provides an effective solution by combining compact dimensions, strong switching capability, reliable electrical performance, and long service life. This article explains how miniature high power relays solve common design problems, what factors should be considered during selection, and why reliable manufacturers such as KEYONG help customers achieve safer and more efficient electrical applications.
From industrial control systems and automotive electronics to smart appliances and energy management equipment, high-current miniature relays play an essential role in modern electrical designs. Understanding their structure, benefits, and application requirements allows engineers and purchasing teams to make better decisions.
Article Outline
-
Understanding the importance of compact high-current switching components.
-
Analyzing customer problems caused by traditional relay solutions.
-
Exploring the advantages of Super Miniature High Power Relay 20A technology.
-
Providing practical guidance for product selection and application.
-
Helping customers improve system safety, efficiency, and reliability.
1. Introduction: The Growing Need for Compact High Power Switching
The development of modern electronics has created a strong demand for components that deliver higher performance while occupying less installation space. Products such as intelligent control devices, automation equipment, electric vehicles, household electrical systems, and communication equipment require switching components that can handle large currents without increasing overall product size.

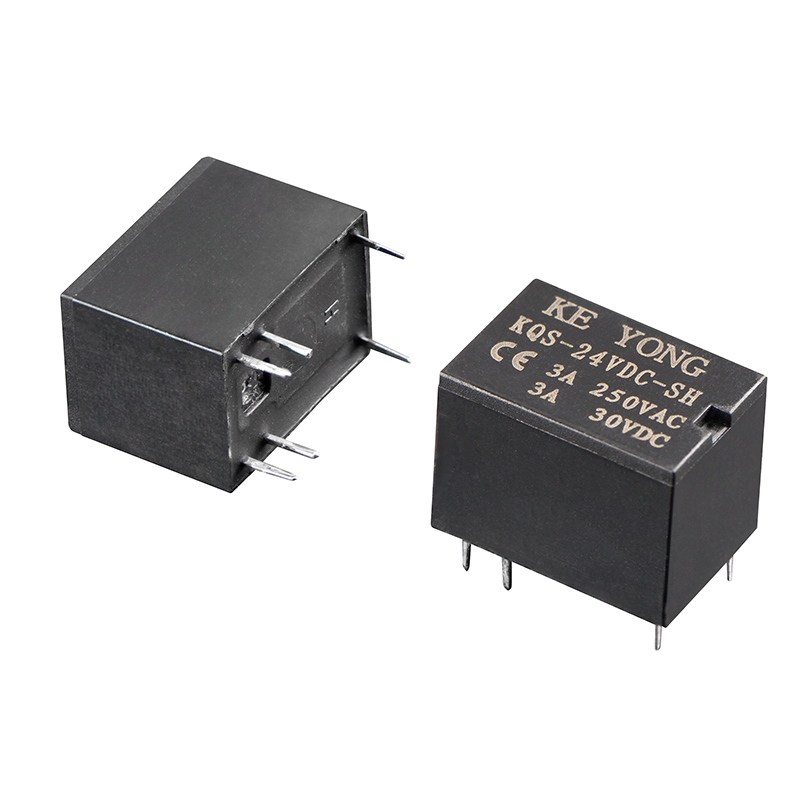

A Super Miniature High Power Relay 20A is designed specifically to address this challenge. Unlike traditional relays that may require more installation space, miniature high power relays provide excellent current handling capability in a compact package. They allow manufacturers to design smaller, lighter, and more efficient products while maintaining dependable electrical control.
For companies developing electrical systems, choosing the correct relay is not only about current capacity. Reliability, mechanical durability, contact performance, safety standards, and long-term operating stability are equally important. KEYONG focuses on providing relay solutions that meet these demanding requirements for global customers.
2. What Challenges Does a Super Miniature High Power Relay 20A Solve?
Many engineers encounter similar difficulties when selecting power switching components. A relay must handle electrical loads safely while fitting into increasingly compact product structures. The Super Miniature High Power Relay 20A helps overcome several common challenges.
|
Customer Challenge
|
Relay Solution
|
|
Limited installation space
|
Compact design allows integration into smaller electronic devices.
|
|
High current switching requirements
|
20A switching capability supports demanding electrical loads.
|
|
Frequent switching operations
|
Durable internal structure improves service life.
|
|
Safety concerns
|
Reliable insulation and contact design reduce electrical risks.
|
|
Product miniaturization demands
|
High power performance is achieved without increasing component size.
|
For manufacturers, these advantages directly influence product quality, production efficiency, and customer satisfaction. A reliable relay helps prevent failures caused by overheating, unstable switching, or insufficient load capacity.
3. Key Features That Make High Power Miniature Relays Reliable
A high-quality Super Miniature High Power Relay 20A combines several engineering advantages. Understanding these characteristics helps customers evaluate whether a relay is suitable for their applications.
-
Compact Structure: The miniature design saves valuable PCB space and supports modern compact equipment development.
-
High Current Capability: The relay can manage electrical loads up to 20A, making it suitable for applications requiring strong switching performance.
-
Stable Contact Performance: High-quality contact materials help maintain consistent electrical connection and reduce contact resistance.
-
Long Mechanical Life: Precision manufacturing improves durability during repeated switching cycles.
-
Wide Application Compatibility: The relay can be integrated into industrial, automotive, household, and energy-related systems.
-
Reliable Manufacturing Quality: KEYONG applies professional production processes to ensure consistent relay performance.
These features make miniature high power relays an important choice for designers who need both space efficiency and electrical reliability.
4. How to Select the Right Super Miniature High Power Relay 20A?
Selecting a relay requires careful consideration of the operating environment and electrical requirements. Choosing an unsuitable relay may lead to reduced performance, shortened lifespan, or unexpected system failures.
|
Selection Factor
|
Important Consideration
|
|
Load Current
|
Confirm that the relay rating meets or exceeds the required current level.
|
|
Voltage Requirements
|
Match coil voltage and switching voltage with system specifications.
|
|
Operating Environment
|
Consider temperature, humidity, vibration, and installation conditions.
|
|
Switching Frequency
|
Select a relay designed for the expected operation cycles.
|
|
Size Restrictions
|
Ensure the relay fits the available installation area.
|
Working with an experienced relay manufacturer can simplify the selection process. KEYONG provides professional relay products designed for different application requirements and helps customers identify suitable solutions.
5. Common Applications of Super Miniature High Power Relay 20A
Because of its combination of compact size and high switching ability, the Super Miniature High Power Relay 20A is widely used across multiple industries.
-
Automotive Electronics: Used for controlling power systems, lighting, motors, and electrical accessories.
-
Industrial Automation: Supports control panels, machines, and intelligent manufacturing equipment.
-
Home Appliances: Provides reliable switching control for high-power household devices.
-
Energy Management Systems: Helps control electrical distribution and smart energy equipment.
-
Communication Equipment: Enables stable power switching in compact electronic systems.
As industries continue moving toward intelligent and compact designs, the demand for high-performance miniature relays continues to grow.
6. Comparison Between Standard Relay and Super Miniature High Power Relay 20A
|
Feature
|
Standard Relay
|
Super Miniature High Power Relay 20A
|
|
Size
|
Usually larger
|
Compact structure
|
|
Space Efficiency
|
Requires more installation area
|
Suitable for compact designs
|
|
Current Handling
|
Depends on model
|
Designed for high current applications up to 20A
|
|
Application Range
|
General switching tasks
|
Advanced electronic and industrial applications
|
|
Design Flexibility
|
Limited in small devices
|
Supports modern miniaturized products
|
7. Maintenance and Installation Considerations
Although relays are designed for reliable operation, correct installation and usage are important for achieving maximum service life.
-
Verify electrical parameters before installation.
-
Avoid operating beyond the rated current and voltage range.
-
Ensure proper ventilation to reduce excessive heat accumulation.
-
Protect the relay from extreme environmental conditions.
-
Perform regular inspection in critical applications.
Proper application practices help maintain stable relay performance and reduce unexpected equipment downtime.
8. Frequently Asked Questions
Q1: What is a Super Miniature High Power Relay 20A?
A Super Miniature High Power Relay 20A is a compact electrical switching device designed to control high-current loads while saving installation space.
Q2: Why choose a miniature relay instead of a traditional relay?
Miniature relays provide similar switching functions with a smaller footprint, making them suitable for modern compact electronic products.
Q3: Where can a 20A high power relay be used?
It can be applied in automotive systems, industrial equipment, appliances, energy systems, and many other electrical control applications.
Q4: How can customers ensure relay reliability?
Customers should select products from experienced manufacturers, confirm electrical specifications, and follow correct installation practices. KEYONG provides reliable relay solutions designed for long-term performance.
Q5: What advantages does KEYONG provide for relay products?
KEYONG focuses on professional relay manufacturing, product quality control, and customer-oriented solutions to meet different industry requirements.
9. Conclusion
The Super Miniature High Power Relay 20A plays an important role in solving the challenges of modern electrical design. It provides a practical balance between compact size, high current capability, durability, and reliable switching performance.
For engineers and businesses looking to improve product efficiency and reduce design limitations, selecting a dependable relay supplier is essential. With professional manufacturing experience and a commitment to quality, KEYONG delivers relay products that support advanced electrical applications worldwide.
If you are searching for a reliable Super Miniature High Power Relay 20A solution for your project, contact KEYONG today to discuss your requirements and receive professional support. Please contact us for more information and customized relay solutions.
