How Does a Surge Protective Device SPD Protect Electrical Systems from Unexpected Surges?
2026-07-13
Modern electrical systems rely heavily on sensitive electronic equipment, smart devices, and automated control systems. However, power surges caused by lightning strikes, grid switching, or electrical faults can instantly damage these valuable assets. A Surge Protective Device SPD is designed to provide an effective protection solution by diverting excess voltage away from electrical equipment and maintaining system stability. With increasing demand for reliable power protection in residential, commercial, and industrial applications, understanding how SPD technology works and why it is essential has become increasingly important.
As a professional provider of electrical protection solutions, Holy Flame Group focuses on developing high-quality surge protection products that help customers improve electrical safety, reduce maintenance costs, and extend the service life of equipment. A reliable Surge Protective Device SPD is not only a protective component but also a critical investment for ensuring continuous and secure power operation.

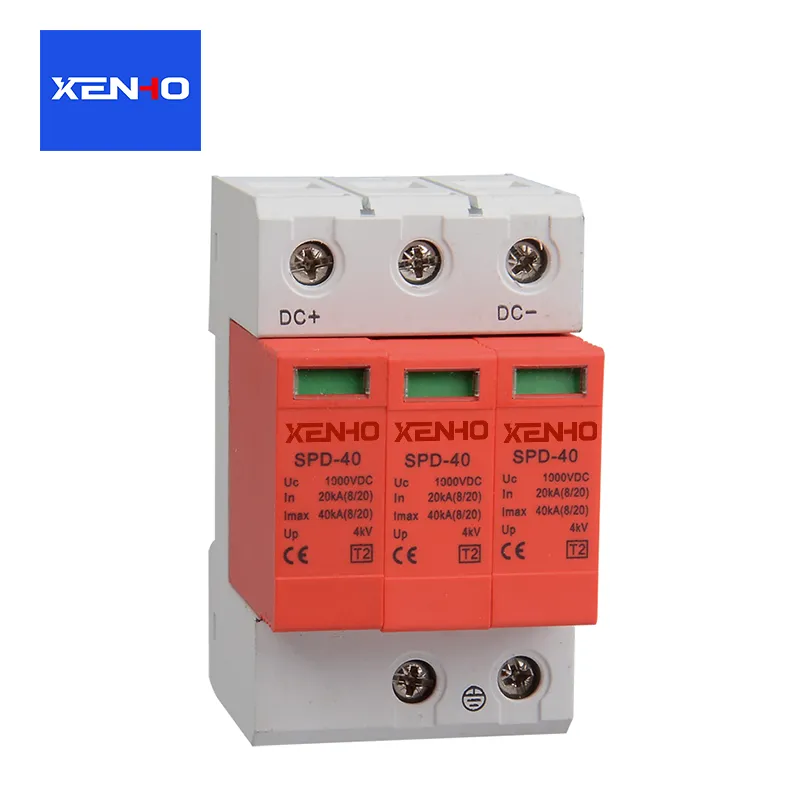

What Is a Surge Protective Device SPD?
A Surge Protective Device SPD is an electrical protection device used to limit transient overvoltage and protect connected equipment from sudden voltage spikes. When an abnormal surge occurs, the SPD quickly responds by conducting the excess electrical energy safely to the ground, preventing high voltage from reaching sensitive devices.
Unlike traditional circuit protection devices that mainly protect against overloads and short circuits, an SPD specifically handles rapid transient voltage events that can occur within microseconds.
Common causes of electrical surges include:
- Lightning strikes and lightning-induced surges
- Utility power switching operations
- Motor startup and shutdown activities
- Internal electrical faults
- Power grid instability
Without proper surge protection, these events may cause equipment failure, data loss, production interruptions, and expensive repairs.
How Does a Surge Protective Device SPD Work?
The working principle of a Surge Protective Device SPD is based on voltage limitation and energy diversion. Under normal operating conditions, the SPD remains inactive and allows current to flow normally. When a surge voltage exceeds the safe threshold, the internal components quickly activate and redirect the excessive energy away from protected equipment.
The basic protection process includes:
| Working Stage | Description |
|---|---|
| Normal Operation | SPD stays in standby mode and does not affect regular power supply |
| Surge Detection | The device detects abnormal voltage increases immediately |
| Energy Discharge | Excess voltage is transferred safely to the grounding system |
| Voltage Recovery | SPD returns to standby status after the surge disappears |
This rapid response capability helps minimize damage and ensures electrical systems continue operating safely.
Why Is a Surge Protective Device SPD Important?
Electrical equipment has become increasingly sensitive due to advanced electronic technology. Computers, communication systems, industrial controllers, medical equipment, and smart devices often contain delicate components that can be damaged by even a short voltage spike.
Installing a Surge Protective Device SPD provides several important advantages:
1. Protecting Valuable Electrical Equipment
The primary function of an SPD is to prevent damage caused by sudden voltage surges. It helps protect:
- Control panels
- Data centers
- Industrial automation equipment
- Security systems
- Communication devices
- Household electronics
By reducing the impact of transient overvoltage, SPD systems help avoid unexpected equipment replacement costs.
2. Improving Electrical System Reliability
Power interruptions can negatively affect businesses and industrial operations. A properly installed SPD reduces the risk of electrical failures and improves overall system reliability.
For manufacturing facilities, even a short downtime caused by damaged equipment may result in significant production losses. Surge protection provides an additional safety layer to maintain stable operations.
3. Increasing Equipment Lifespan
Repeated small surges may gradually weaken electronic components even when they do not cause immediate failure. A Surge Protective Device SPD helps reduce these hidden damages and allows electrical equipment to operate longer.
4. Enhancing Safety Protection
Excessive voltage surges may create overheating risks and electrical hazards. SPD installation helps control abnormal voltage conditions and improves the safety level of electrical installations.
Different Types of Surge Protective Device SPD
According to installation location and protection requirements, SPDs are commonly divided into different categories.
| SPD Type | Application Area | Main Function |
|---|---|---|
| Type 1 SPD | Main power entrance | Protects against external surges, especially lightning effects |
| Type 2 SPD | Distribution panels | Provides protection for internal electrical systems |
| Type 3 SPD | Near terminal equipment | Offers final protection for sensitive devices |
Selecting the correct SPD type depends on the electrical environment, risk level, and equipment requirements.
Key Factors to Consider When Choosing a Surge Protective Device SPD
Choosing the right SPD requires careful evaluation of several technical factors.
Maximum Continuous Operating Voltage (Uc)
Uc indicates the maximum voltage that the SPD can withstand continuously under normal conditions. Selecting a suitable Uc rating ensures reliable long-term operation.
Discharge Current Capacity
The discharge current rating determines how much surge energy the SPD can safely handle. Higher-risk environments usually require stronger surge handling capability.
Response Time
A faster response time allows the SPD to react quickly during transient events, reducing potential equipment damage.
Protection Level
The voltage protection level indicates how effectively the SPD limits excessive voltage. A lower protection level generally means better protection performance.
Surge Protective Device SPD Applications
Due to its reliable protection performance, SPD technology is widely used in various industries.
Residential Applications
Modern homes contain many electronic products, including smart appliances, televisions, computers, and security systems. Installing SPDs helps protect household equipment from unexpected electrical surges.
Commercial Buildings
Office buildings, shopping centers, and hotels depend on stable electrical systems. SPD solutions help protect lighting systems, communication networks, and building automation equipment.
Industrial Facilities
Factories often operate expensive machinery and automated production systems. Surge protection helps prevent production interruptions and equipment failures.
Renewable Energy Systems
Solar power systems and energy storage solutions require effective surge protection because outdoor installations are exposed to lightning and environmental risks.
Surge Protective Device SPD vs Traditional Circuit Breakers
Although both SPDs and circuit breakers improve electrical safety, they serve different purposes.
| Comparison | Surge Protective Device SPD | Circuit Breaker |
|---|---|---|
| Main Function | Protects against transient voltage surges | Protects against overload and short circuits |
| Response Speed | Extremely fast, usually within microseconds | Slower compared with SPD response |
| Protection Target | Sensitive electronic equipment | Electrical circuits and wiring |
| Operation Method | Diverts excess voltage | Interrupts excessive current |
For complete electrical protection, many systems require both circuit breakers and SPDs working together.
Why Choose Holy Flame Group for Surge Protection Solutions?
With professional experience in electrical protection technology, Holy Flame Group is committed to providing reliable and efficient Surge Protective Device SPD solutions for different application environments.
The company focuses on product quality, technical innovation, and customer requirements to deliver surge protection products that meet modern electrical safety demands. Whether for industrial facilities, commercial projects, or renewable energy applications, Holy Flame Group provides solutions designed to improve system stability and reduce operational risks.
Key advantages include:
- Reliable surge protection performance
- Professional technical support
- Solutions for various application scenarios
- Strong focus on product safety and durability
- Customized solutions according to customer needs
Conclusion
A Surge Protective Device SPD plays an essential role in modern electrical protection by preventing damage caused by unexpected voltage surges. From protecting sensitive equipment to improving system reliability and reducing maintenance costs, SPD technology provides significant value for residential, commercial, and industrial applications.
As electrical systems continue becoming smarter and more complex, investing in reliable surge protection is no longer optional but a necessary step toward safer and more stable power management. Holy Flame Group is dedicated to delivering dependable surge protection solutions that help customers protect their valuable electrical assets.
For professional Surge Protective Device SPD solutions, customized protection options, or product inquiries, please contact us today. Holy Flame Group is ready to provide reliable electrical protection solutions and support your long-term business success.
