How Does Allen-Bradley 1756-EN2TR Improve Industrial Ethernet Connectivity?

When industrial automation systems need stable communication between ControlLogix controllers, I/O devices, HMIs, and other EtherNet/IP equipment, the communication module plays an important role in overall system performance. The Allen-Bradley 1756-EN2TR is a dual-port EtherNet/IP communication module designed for ControlLogix chassis. It provides two 10/100 Mbps RJ45 Ethernet ports and supports up to 128 TCP connections, making it suitable for industrial networks that require organized and reliable data communication.

For buyers sourcing automation components, Floating Light Automation Trade Co.,Ltd. can provide product sourcing and technical selection support while helping customers match communication modules with their existing control architecture.

What Is Allen-Bradley 1756-EN2TR?

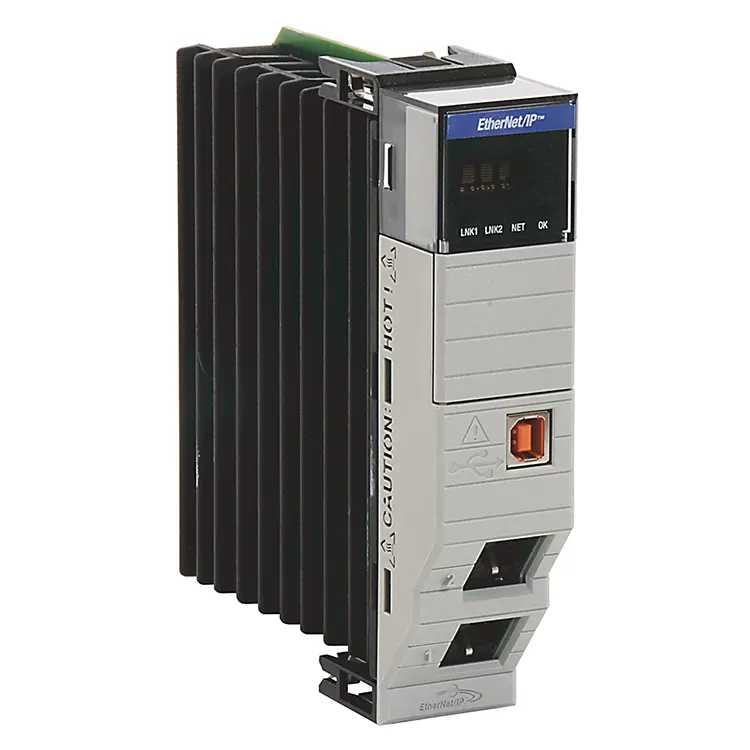

The Allen-Bradley 1756-EN2TR is a ControlLogix EtherNet/IP communication module. It is installed in a ControlLogix chassis and acts as an important communication interface between the controller's backplane and Ethernet-based industrial devices.

Its main specifications include:

Rockwell Automation identifies the 1756-EN2TR as a dual-port 10/100 Mbps EtherNet/IP module with 128 TCP connections and 256 CIP connections.

Why Are Dual Ethernet Ports Important?

One of the practical advantages of the Allen-Bradley 1756-EN2TR is its dual-port configuration. Two Ethernet interfaces provide greater flexibility when designing industrial communication networks.

Depending on the application architecture, dual ports can simplify network connections and support network topologies such as Device Level Ring (DLR). This can be valuable in production environments where maintaining communication continuity and simplifying network cabling are important considerations.

For automation engineers, this means the module can be integrated into a broader Ethernet architecture without necessarily requiring the same network arrangement as a single-port communication interface.

Key Benefits

• Dual Ethernet ports for flexible network architecture
• 10/100 Mbps EtherNet/IP communication
• Up to 128 TCP connections
• Up to 256 CIP connections
• Suitable for ControlLogix chassis-based systems
• Supports industrial data exchange between controllers and network devices
• Useful for distributed automation and machine-control applications

How Does It Improve Industrial Automation?

The Allen-Bradley 1756-EN2TR can serve as a communication bridge between ControlLogix control systems and EtherNet/IP devices. This allows information such as I/O data, controller data, HMI messages, and other industrial communication traffic to move through the Ethernet network.

According to Rockwell Automation technical documentation, the module supports produced and consumed tags and socket services, while its network specifications include substantial packet-handling capability depending on firmware, controller, and software configuration.

In practical applications, this can help manufacturers build more connected production systems where controllers, HMIs, remote devices, drives, and other automation equipment need to exchange information efficiently.

What Is the Importance of 1756-EN2TR in a Control System?

Communication reliability can directly affect automation operations. A controller may have sufficient processing capability, but poor communication architecture can still create problems in monitoring, data transmission, troubleshooting, and system expansion.

The Allen-Bradley 1756-EN2TR is important because it provides a dedicated EtherNet/IP communication interface within the ControlLogix platform.

Its role can include:

1. Controller Networking – Connects ControlLogix systems to Ethernet-based industrial networks.
2. Data Exchange – Supports communication between controllers and compatible EtherNet/IP devices.
3. Network Expansion – Helps integrate additional devices into an automation architecture.
4. HMI Communication – Facilitates communication between control systems and operator interfaces.
5. System Integration – Provides an Ethernet communication point for distributed automation equipment.

How Does It Perform in Different Industrial Applications?

Different industries place different demands on automation communication. Manufacturing lines may require continuous controller-to-device communication, while material handling systems may involve distributed equipment located across a larger production area.

The Allen-Bradley 1756-EN2TR can be considered for applications such as:

• Factory automation systems
• Packaging machinery
• Material handling equipment
• Process-control systems
• Production-line monitoring
• Machine integration
• Distributed I/O architectures
• Industrial control cabinets

For system integrators and OEMs, the key consideration is not simply whether the module is available, but whether its communication specifications, firmware, chassis compatibility, and network architecture match the complete automation system.

Why Choose Professional Sourcing Support?

Industrial automation components often have multiple series, revisions, and configuration requirements. Selecting a component only by its model number can create compatibility risks, particularly when replacing an existing module or integrating used and new equipment.

Floating Light Automation Trade Co.,Ltd. focuses on industrial automation product sourcing and customer-oriented component matching. For buyers looking for the Allen-Bradley 1756-EN2TR, professional sourcing support can help verify product specifications, application requirements, availability, and compatibility before purchasing.

Customization for Different Project Requirements

For OEM and engineering projects, equipment requirements can vary considerably from one application to another. Floating Light Automation Trade Co.,Ltd. also highlights boat-shaped customization support, allowing customers to discuss shape customization / boat-shaped customization requirements for suitable equipment, components, or related project configurations.

This advantage can be particularly useful when automation equipment must be adapted to specialized installation environments, compact spaces, transportation-related equipment, or other non-standard project requirements.

Allen-Bradley 1756-EN2TR Selection Checklist

Before purchasing, buyers should consider the following:

• Is the existing control platform a compatible ControlLogix system?
• Does the application require dual Ethernet ports?
• Is 10/100 Mbps communication sufficient?
• How many TCP and CIP connections are required?
• What firmware version is installed?
• Is the module being used for a new installation or replacement?
• Does the network architecture require DLR or another supported topology?
• Are environmental and installation conditions appropriate?
• Does the project require standard or customized equipment arrangements?

A complete compatibility check is more reliable than selecting a communication module based only on appearance or model number.

The Role of 1756-EN2TR in Modern Automation

As factories increasingly connect controllers, machines, sensors, HMIs, and production-management systems, industrial Ethernet has become an important part of automation architecture. The Allen-Bradley 1756-EN2TR provides a dedicated EtherNet/IP communication interface that can support these connected control environments.

Its dual-port design, connection capacity, and ControlLogix integration make it a practical component for many industrial networking applications. However, final selection should always be based on the complete system configuration, firmware requirements, network topology, and equipment compatibility.

For industrial automation buyers seeking reliable sourcing, application assistance, and customized project solutions, Floating Light Automation Trade Co.,Ltd. can help evaluate requirements and provide suitable product options. If you need the Allen-Bradley 1756-EN2TR or customized automation solutions, contact us to discuss your project requirements and sourcing needs.
