What Is an Earthing Switch?
An Earthing Switch, also called a grounding switch in many markets, is a switching device designed to connect an isolated electrical circuit, conductor, busbar, or piece of equipment to earth. It is primarily used to create a defined grounding path after electrical equipment has been disconnected from its energized source.
In medium- and high-voltage installations, simply opening a circuit breaker does not necessarily mean that every part of the system is completely safe to approach. Electrical energy can remain because of capacitive effects, induced voltages, trapped charge, or unexpected conditions within the system. An Earthing Switch provides a deliberate conductive path to earth, helping discharge residual electrical energy and maintain the isolated section at approximately earth potential.
The device is commonly installed in substations, switchgear assemblies, distribution cabinets, transmission systems, industrial power networks, and other electrical installations where safe maintenance and controlled grounding are essential.
A properly selected Earthing Switch must be compatible with the electrical and mechanical characteristics of the associated equipment. This means that voltage rating alone is never enough when specifying a grounding device.
Why Is an Earthing Switch Important?
Electrical maintenance becomes significantly more controlled when equipment can be positively connected to earth. The Earthing Switch is therefore an important part of the safety architecture surrounding high-voltage equipment.
Its value can be understood through several practical functions:
- Provides a defined grounding path: It creates a low-impedance conductive route between the isolated circuit and earth.
- Helps discharge residual electrical energy: Stored or induced electrical charge can be directed toward earth after appropriate isolation procedures.
- Supports maintenance safety: Grounding the isolated section provides an additional protective measure for maintenance personnel.
- Controls induced voltage: In some transmission and distribution applications, nearby energized conductors can induce voltage into an isolated circuit.
- Improves operational discipline: Mechanical and electrical interlocking can prevent unsafe switching sequences.
- Protects electrical equipment: A correctly designed grounding arrangement can help manage abnormal electrical conditions.
However, an Earthing Switch should never be regarded as a substitute for the complete electrical safety procedure. Isolation, verification of de-energization, grounding, locking, tagging, and other site-specific procedures must be performed according to applicable regulations and operating instructions.
How Does an Earthing Switch Work?
The operating principle is straightforward, but the engineering behind reliable operation is critical.
- Electrical equipment is isolated. A circuit breaker or disconnector separates the equipment from its normal energized source.
- The isolated condition is verified. Appropriate procedures and equipment are used to confirm that the circuit is ready for grounding.
- The Earthing Switch is operated. Its movable contact travels toward the fixed grounding contact.
- The grounding connection is established. The isolated conductor or equipment becomes electrically connected to the grounding system.
- Maintenance can proceed under controlled conditions. The grounded section is maintained at a defined electrical potential as required by the operating procedure.
- The Earthing Switch is opened before re-energization. The grounding connection must be removed in the correct sequence before the electrical circuit is returned to service.
Many switchgear systems incorporate mechanical or electrical interlocking so that the Earthing Switch cannot be closed under prohibited operating conditions. This feature is particularly important because closing a grounding switch onto an energized circuit can produce a severe electrical fault.
For this reason, the Earthing Switch should be considered part of an integrated switching system rather than an isolated mechanical component.
Key Components of an Earthing Switch
Although construction varies according to voltage level, installation method, and application, most Earthing Switch designs contain several fundamental elements.
| Component | Primary Function | Important Consideration |
|---|---|---|
| Fixed Contact | Provides the stationary electrical connection | Contact pressure, conductivity, and mechanical strength |
| Moving Contact | Establishes or interrupts the grounding path | Alignment, travel distance, and contact reliability |
| Operating Mechanism | Moves the grounding blade between open and closed positions | Operating speed, reliability, and mechanical endurance |
| Insulating Supports | Maintain electrical insulation between conductive parts and structure | Insulation level and environmental resistance |
| Grounding Terminal | Connects the switch to the grounding network | Current capacity and connection integrity |
| Interlocking System | Controls permissible operating sequences | Compatibility with breakers, disconnectors, and switchgear |
| Supporting Frame | Provides mechanical stability | Structural strength, mounting dimensions, and corrosion resistance |
Common Types of Earthing Switches
Different electrical installations require different grounding arrangements. Choosing the appropriate design depends on the voltage level, switchgear configuration, available space, operating method, and protection philosophy.
- Indoor Earthing Switch: Designed for indoor switchgear and distribution cabinets where environmental exposure is controlled.
- Outdoor Earthing Switch: Designed for substations and outdoor installations where the equipment must withstand rain, humidity, temperature changes, dust, and other environmental conditions.
- High-Voltage Earthing Switch: Used in high-voltage installations where insulation coordination and short-circuit withstand capability are particularly important.

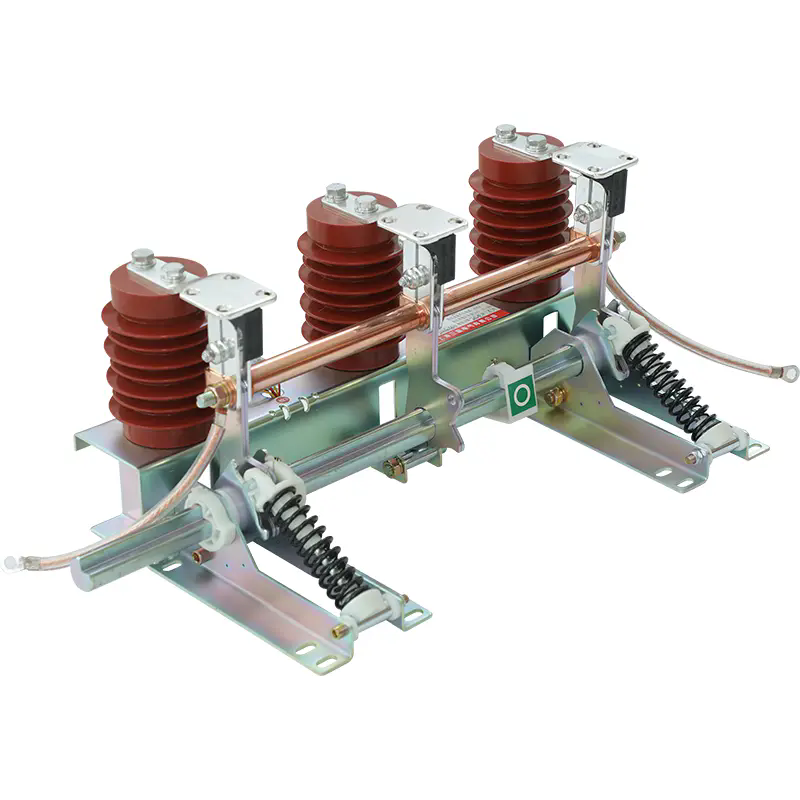

- High-Speed Earthing Switch: Designed for applications where rapid grounding action is required as part of the system protection strategy.
- Built-In Earthing Switch: Integrated into switchgear to save installation space and simplify the overall equipment arrangement.
- Motorized Earthing Switch: Uses an electric operating mechanism and can be integrated into systems requiring remote or automated operation.
- Earthing Switch with Closing Resistor: Specialized designs may incorporate resistance to control transient effects during particular grounding operations.
The terminology can vary between countries and manufacturers. Therefore, buyers should evaluate the actual technical specifications and operating requirements rather than relying only on product names.
How to Select the Right Earthing Switch
Selecting an Earthing Switch should begin with the complete electrical system rather than with a catalog model. A device that looks suitable based on nominal voltage may still be unsuitable because of insufficient short-circuit capability, incorrect mounting dimensions, inadequate insulation, or incompatible interlocking.
The following checklist can help engineers narrow down the appropriate solution.
- Determine the rated voltage. The Earthing Switch must be suitable for the system's maximum operating voltage and insulation requirements.
- Check rated frequency. Confirm compatibility with the system frequency, such as 50 Hz or 60 Hz.
- Calculate short-time withstand requirements. The grounding path must withstand the specified fault current for the required duration.
- Check peak withstand current. Mechanical and electrical components must tolerate the maximum expected peak current.
- Evaluate insulation coordination. Clearance, creepage distance, power-frequency withstand, and impulse withstand requirements must be considered.
- Confirm installation configuration. Check whether the device is intended for indoor, outdoor, cabinet-integrated, or open-substation installation.
- Review operating mechanism. Decide whether manual, motorized, spring-assisted, or another mechanism is appropriate.
- Confirm interlocking requirements. The grounding switch should coordinate correctly with associated disconnectors and circuit breakers.
- Verify mechanical dimensions. Mounting holes, shaft position, phase spacing, contact arrangement, and operating travel must match the equipment.
- Consider maintenance requirements. A practical design should allow inspection, adjustment, and replacement of wear components when necessary.
Important Technical Specifications
Before placing an order, technical teams should prepare a specification sheet covering the main electrical and mechanical parameters.
| Specification | Why It Matters | What Buyers Should Verify |
|---|---|---|
| Rated Voltage | Defines the intended system voltage range | Compatibility with the complete switchgear system |
| Rated Frequency | Ensures suitability for the AC system | 50 Hz, 60 Hz, or specified system frequency |
| Short-Time Withstand Current | Determines the fault-current capability over a specified time | Current level and duration |
| Peak Withstand Current | Indicates resistance to high electrodynamic forces | Peak current rating |
| Power-Frequency Withstand | Helps confirm insulation performance | Required test voltage |
| Lightning Impulse Withstand | Supports insulation coordination | Applicable impulse level |
| Operating Mechanism | Determines how the switch is operated | Manual or motorized configuration |
| Installation Type | Determines environmental and structural requirements | Indoor, outdoor, cabinet, or substation |
| Interlocking | Reduces the possibility of incorrect switching sequences | Mechanical/electrical compatibility |
Why Is Interlocking Essential?
One of the most important characteristics of a modern switchgear grounding arrangement is its ability to prevent unsafe operating sequences.
For example, an Earthing Switch should generally not be permitted to close onto an energized circuit when the system configuration does not allow such an operation. Similarly, the associated disconnector and circuit breaker may need to remain in predetermined positions before grounding is enabled.
An effective interlocking arrangement can include:
- Mechanical interlocking between the Earthing Switch and disconnector.
- Electrical interlocking with the circuit breaker control circuit.
- Position indication for open and closed states.
- Key interlocking for controlled operating procedures.
- Control-system feedback for motorized configurations.
Interlocking requirements should be defined during the switchgear design stage. Retrofitting an interlocking mechanism after installation can be more difficult and expensive than incorporating it into the original design.
Where Are Earthing Switches Used?
Earthing Switches are used across a broad range of electrical infrastructure because grounding is an essential part of controlled maintenance and system protection.
- Electrical substations
- Medium-voltage switchgear
- High-voltage switchgear
- Distribution cabinets
- Industrial power distribution systems
- Transmission line equipment
- Renewable energy substations
- Power generation facilities
- Railway and transportation power systems
- Large commercial and infrastructure facilities
In substations, the Earthing Switch may be installed as part of a disconnector assembly or as a separate device. The exact configuration depends on the substation layout, voltage level, operating philosophy, and equipment manufacturer.
Installation and Maintenance Considerations
Even a high-quality Earthing Switch can fail to deliver reliable performance if it is incorrectly installed or poorly maintained. Installation should therefore be performed by qualified personnel using the manufacturer's technical documentation and the applicable electrical standards.
Important installation checks include:
- Confirming correct phase spacing and alignment.
- Checking that all mounting hardware is properly secured.
- Verifying the grounding conductor connection.
- Checking contact alignment and contact pressure.
- Confirming that the operating mechanism reaches its complete open and closed positions.
- Testing mechanical interlocking before commissioning.
- Checking electrical interlocking and position indication where applicable.
- Performing the required insulation and electrical tests.
During maintenance, technicians should inspect contact surfaces, moving mechanisms, insulating components, fasteners, grounding connections, and signs of corrosion or overheating.
For outdoor equipment, environmental exposure deserves additional attention. Moisture, dust, salt contamination, temperature fluctuations, and corrosion can gradually affect mechanical movement and insulation performance.
Common Selection Mistakes to Avoid
Purchasing an Earthing Switch based solely on its nominal voltage is one of the most common mistakes. A reliable grounding device must match the electrical, mechanical, environmental, and operational requirements of the complete system.
Common problems include:
- Ignoring short-circuit current requirements. The grounding switch must have sufficient short-time and peak withstand capability.
- Choosing the wrong installation configuration. Indoor and outdoor environments can impose very different requirements.
- Overlooking mechanical dimensions. Even a technically suitable product may not fit the existing switchgear.
- Neglecting interlocking. Grounding equipment must operate correctly within the switching sequence.
- Using inadequate grounding connections. A grounding switch is only as effective as the conductive path connected to it.
- Failing to consider maintenance. Difficult access can increase inspection time and long-term maintenance costs.
- Not clarifying operating requirements. Manual and motorized systems have different control and installation needs.
