An Industrial Vertical Water Cooled Air Conditioning Fan is designed for applications where effective air circulation and cooling are essential. By combining vertical airflow, fan-driven circulation, and water-assisted cooling principles, this type of equipment can provide a practical solution for workshops, factories, warehouses, production areas, and other large industrial spaces.
This guide explains how the system works, where it can be used, which technical factors matter during selection, and how businesses can avoid common installation and maintenance problems.
1. Understanding an Industrial Vertical Water Cooled Air Conditioning Fan

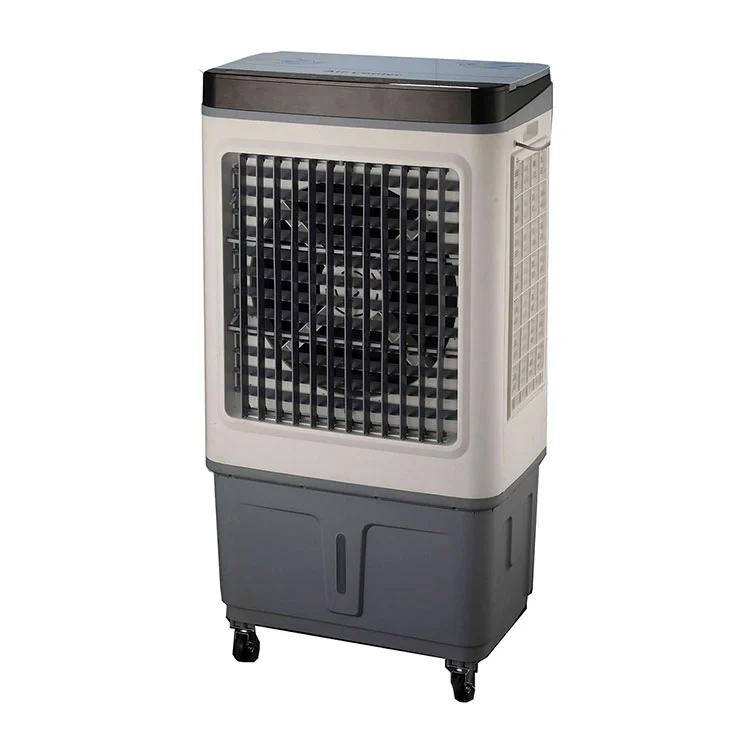

An Industrial Vertical Water Cooled Air Conditioning Fan is a cooling and air-circulation solution intended for environments where traditional cooling methods may not be sufficient or economical. The equipment generally uses a powerful fan to move air while water-assisted cooling helps lower the temperature of the circulated air under suitable environmental conditions.
The vertical configuration allows airflow to be distributed through a relatively compact equipment structure. This can be useful in facilities where floor space is limited but significant air movement is required.
Unlike a small residential fan, industrial cooling equipment must be designed around factors such as room volume, heat generation, operating hours, airflow requirements, ambient temperature, humidity, installation height, and available water supply.
For this reason, industrial buyers should avoid choosing equipment solely from a nominal cooling capacity. A properly sized system should be matched to the actual environment and operating conditions.
2. How the Cooling and Airflow Process Works
Water-cooled air-conditioning fans typically use the principle of evaporative cooling or another water-assisted heat transfer method, depending on the equipment design. When water evaporates into an air stream under suitable conditions, it absorbs heat from the air. This can reduce the air temperature while simultaneously increasing humidity.
Air Intake
The fan draws warm ambient air into the equipment. In an industrial facility, this air may already contain substantial heat generated by machinery, lighting, production processes, or solar exposure.
Water-Assisted Cooling
Water is introduced into the cooling section, where it interacts with the moving air. In evaporative systems, part of the water evaporates and removes sensible heat from the air. The effectiveness of this process depends strongly on ambient relative humidity.
Air Distribution
The cooled air is then delivered into the working area. Vertical airflow design can support broad air circulation when the equipment is positioned correctly.
Continuous Circulation
The fan continues moving air through the facility, helping reduce stagnant areas and improve overall air movement. The result depends on the building layout, obstacles, heat sources, ventilation openings, and equipment placement.
3. Key Benefits for Industrial Facilities
Large-Volume Air Movement
Industrial spaces often have much greater air volumes than residential rooms. A high-airflow fan can move large quantities of air and help improve circulation across workshops, warehouses, and production floors.
Support for Worker Comfort
High temperatures can make physically demanding work more uncomfortable and may affect productivity. Improving air movement and reducing perceived heat can contribute to a more comfortable working environment.
However, cooling equipment should be considered part of a broader workplace temperature-management strategy. Heat-producing machinery, building insulation, ventilation, work practices, and occupational safety requirements also need to be addressed.
Potentially Lower Operating Costs
Water-assisted cooling can consume less electrical energy than some conventional compressor-based air-conditioning approaches when the application is suitable. The actual energy and water consumption depend on equipment design, operating conditions, climate, control settings, and maintenance.
Space-Efficient Vertical Configuration
A vertical design can provide strong airflow without requiring a large horizontal footprint. This can be particularly useful in production facilities where floor space is occupied by machinery, storage racks, conveyors, or workstations.
Useful for Large Open Areas
Large workshops and warehouses can be challenging to cool uniformly with conventional room air conditioners. Industrial air circulation equipment can be positioned strategically to target occupied zones and improve air movement.
| Benefit | Practical Value | Main Consideration |
|---|---|---|
| High airflow | Moves large quantities of air through industrial spaces | Match airflow to building size and layout |
| Water-assisted cooling | Can provide effective cooling under suitable climate conditions | Performance depends on humidity and water quality |
| Vertical design | Uses floor space efficiently | Ensure adequate clearance and airflow around the unit |
| Continuous operation | Supports long operating periods in suitable applications | Requires appropriate maintenance and controls |
| Air circulation | Helps reduce stagnant hot zones | Equipment placement is critical |
4. Common Industrial Applications
Industrial vertical water-cooled air conditioning fans can be considered for many environments where large air volumes and heat management are important.
Manufacturing Workshops
Production machinery can generate considerable heat, particularly in metalworking, plastics processing, electronics manufacturing, and other continuous-production environments. High-volume airflow can help improve the working atmosphere.
Warehouses and Logistics Facilities
Warehouses may have large open areas, high ceilings, frequently opened doors, and limited conventional air-conditioning coverage. Properly positioned industrial cooling fans can improve air circulation in occupied areas.
Automotive and Repair Workshops
Automotive workshops can experience heat accumulation due to vehicle engines, equipment, and limited natural ventilation. Air circulation can make working areas more comfortable during warm periods.
Agricultural and Processing Facilities
Certain agricultural processing environments can benefit from high-volume airflow, provided that humidity, hygiene, water quality, and product sensitivity are carefully evaluated.
Commercial and Semi-Industrial Spaces
Large halls, exhibition areas, gyms, workshops, and other spaces may also use water-assisted cooling where environmental conditions are appropriate.
| Application | Primary Cooling Challenge | Key Requirement |
|---|---|---|
| Manufacturing workshop | Machinery-generated heat | High airflow and targeted air distribution |
| Warehouse | Large volume and high ceilings | Wide-area air circulation |
| Automotive workshop | Heat and limited ventilation | Reliable continuous airflow |
| Processing facility | Heat and environmental control | Hygiene and water-quality management |
| Large commercial space | Occupant comfort | Balanced airflow and cooling |
5. How to Select the Right Industrial Cooling Fan
Choosing the correct industrial cooling fan begins with understanding the facility rather than simply comparing product prices. A unit with a very high nominal airflow rating may not provide the expected comfort if it is poorly positioned or unsuitable for the building's humidity conditions.
Evaluate the Building Size
Determine the approximate floor area, ceiling height, and total room volume. Larger spaces generally require greater airflow or multiple strategically positioned units.
Identify Major Heat Sources
Record equipment that generates heat, such as furnaces, motors, compressors, welding machines, production lines, ovens, and electrical equipment. The location and intensity of these heat sources can influence fan placement.
Consider Local Climate
Humidity is particularly important for water-assisted cooling. A system may perform very differently in a dry climate compared with a hot and humid environment.
Check Water Availability
Water-cooled or evaporative equipment requires a suitable water supply. Buyers should consider water consumption, supply pressure, water quality, drainage, and maintenance requirements.
Consider Operating Hours
If the equipment will operate continuously for long shifts, durability, motor efficiency, controls, maintenance access, and thermal management become especially important.
Review Noise Requirements
Industrial facilities may tolerate higher sound levels than offices, but excessive noise can still affect workers. Check the product's noise specifications and consider the equipment's distance from occupied workstations.
- Facility dimensions and ceiling height
- Local ambient temperature and humidity conditions
- Main heat-producing equipment
- Required operating hours
- Available water supply
- Required airflow or cooling targets
- Installation location and available space
- Electrical supply specifications
- Noise and environmental requirements
6. Important Performance Parameters
Several technical parameters should be reviewed before purchasing an Industrial Vertical Water Cooled Air Conditioning Fan.
Airflow Volume
Airflow is commonly expressed in cubic meters per hour (m³/h), cubic feet per minute (CFM), or another relevant unit. Higher airflow is not automatically better because the required amount depends on room size, heat load, layout, and desired air changes.
Cooling Capacity
Cooling capacity indicates the system's ability to remove heat under defined test conditions. When comparing products, make sure the values are based on comparable conditions.
Power Consumption
Motor power affects operating cost. Businesses should consider both rated electrical power and expected operating hours when evaluating the total cost of ownership.
Water Consumption
For water-assisted systems, water usage is an important operating parameter. It should be evaluated together with local water costs, availability, quality, and drainage requirements.
Fan Motor and Control System
Motor reliability is important for industrial applications. Variable-speed control, where available, can provide greater flexibility by allowing airflow to be adjusted according to actual conditions.
| Parameter | Why It Matters | What Buyers Should Check |
|---|---|---|
| Airflow | Determines air movement across the facility | Rated airflow and operating range |
| Cooling capacity | Indicates heat-removal capability | Test conditions and rated values |
| Motor power | Affects electrical consumption | Rated power and efficiency |
| Water consumption | Affects operating cost and resource planning | Expected consumption under operating conditions |
| Noise level | Influences workplace comfort | Noise rating and installation conditions |
| Dimensions | Determines installation feasibility | Overall size, clearance, and service access |
7. Installation Considerations
Even a high-performance cooling fan can deliver disappointing results if it is installed incorrectly. Airflow needs to be planned according to the actual building rather than simply placing the unit wherever space is available.
Choose an Appropriate Position
The unit should have adequate access to ambient air and sufficient clearance around air intake and outlet areas. Avoid locations where walls, machinery, storage racks, or other obstacles severely restrict airflow.
Plan Airflow Direction
Consider where employees work and where heat accumulates. The goal should be effective air movement through occupied areas rather than simply maximizing airflow near the equipment itself.
Provide Proper Water Connections
Water supply lines should meet the equipment's requirements. Water quality should also be considered because minerals and contaminants can accumulate on cooling components over time.
Consider Drainage
Water-assisted cooling systems may require drainage arrangements. The installation should prevent standing water and maintain a clean operating environment.
Ensure Electrical Safety
Power connections, grounding, circuit protection, and control wiring should be completed by qualified personnel according to applicable electrical requirements and the manufacturer's installation instructions.
Allow Maintenance Access
Do not position the unit so tightly against walls or machinery that technicians cannot access filters, pumps, fans, electrical components, or other service points.
8. Maintenance and Troubleshooting
Regular maintenance is essential for maintaining airflow, cooling performance, hygiene, and equipment reliability. Water-assisted systems require particular attention to both mechanical and water-related components.
Clean Cooling Components
Dust, mineral deposits, and contaminants can reduce airflow and heat-transfer performance. Inspection and cleaning intervals should be established according to the operating environment and manufacturer's recommendations.
Inspect Water Quality
Poor water quality can contribute to mineral buildup, scaling, corrosion, or microbial concerns. Water management procedures should be established according to local requirements and equipment instructions.
Check the Fan Motor
Monitor unusual vibration, abnormal noise, overheating, or changes in operating behavior. Such symptoms can indicate bearing wear, imbalance, electrical problems, or other mechanical issues.
Inspect Electrical Connections
Loose connections or damaged wiring can create safety and reliability risks. Electrical inspections should be performed by qualified technicians with appropriate power isolation procedures.
| Problem | Possible Cause | Recommended Action |
|---|---|---|
| Weak airflow | Blocked filter, dirty cooling section, fan problem | Inspect and clean airflow components; check the fan system |
| Insufficient cooling | High humidity, poor water supply, dirty cooling media | Check environmental conditions, water system, and cooling components |
| Unusual noise | Fan imbalance, bearing wear, loose components | Stop safely and inspect mechanical components |
| Water leakage | Loose connection, damaged pipe, drainage issue | Inspect water lines and drainage components |
| Unexpected shutdown | Electrical fault, overheating, control protection | Review fault indications and electrical conditions |
When a fault occurs, avoid repeatedly restarting the equipment without determining the cause. Persistent alarms or abnormal operating conditions should be investigated by qualified personnel.
9. Comparison With Conventional Cooling Approaches
Different cooling technologies have different strengths. A water-cooled industrial fan is not a universal replacement for compressor-based air conditioning, but it can be highly practical in the right environment.
| Cooling Approach | Strength | Potential Limitation | Suitable Consideration |
|---|---|---|---|
| Industrial water-cooled fan | High airflow and water-assisted cooling | Performance is affected by humidity | Large spaces and suitable climates |
| Conventional split AC | Precise cooling for enclosed areas | Less practical for very large open spaces | Offices and smaller enclosed rooms |
| Central HVAC | Comprehensive environmental control | Higher system complexity and installation cost | Large buildings requiring integrated control |
| Exhaust ventilation | Removes hot or contaminated air | Does not necessarily provide direct cooling | Facilities requiring heat or air removal |
| Traditional industrial fan | Simple air circulation | Moves air without significant cooling | Applications where airflow alone is sufficient |
In many industrial facilities, the best result can come from combining ventilation, air circulation, insulation, heat-source management, and appropriate cooling equipment rather than relying on one technology alone.
10. Practical Purchasing Checklist for Industrial Buyers
Before placing an order, procurement teams can use the following checklist to reduce the risk of selecting unsuitable equipment.
- Confirm the exact facility dimensions.
- Record average and peak ambient temperature.
- Determine typical relative humidity.
- Identify major heat sources.
- Define the areas requiring cooling.
- Check available electrical supply.
- Confirm water availability and quality.
- Review expected operating hours.
- Check noise requirements.
- Confirm installation dimensions and service clearance.
- Review control and automation requirements.
- Ask for product specifications and operating limits.
- Clarify warranty, spare parts, and after-sales support.
Providing complete information to the supplier allows technical personnel to evaluate the application more accurately and avoid recommendations based only on nominal airflow or motor power.
11. Frequently Asked Questions
What is an Industrial Vertical Water Cooled Air Conditioning Fan?
It is an industrial cooling and air-circulation device designed to move large volumes of air while using water-assisted cooling technology to reduce air temperature under suitable environmental conditions.
Can a water-cooled industrial fan replace conventional air conditioning?
It depends on the application. Water-assisted cooling can be highly effective in suitable large spaces, particularly in relatively dry climates. It may not provide the same temperature and humidity control as a conventional refrigeration-based air-conditioning system.
How does humidity affect water-cooled fan performance?
Higher humidity generally reduces the ability of air to absorb additional water vapor. As a result, evaporative cooling may provide a smaller temperature reduction in humid conditions.
Where are industrial vertical water-cooled fans commonly used?
Typical applications include manufacturing workshops, warehouses, logistics centers, automotive workshops, agricultural processing facilities, large halls, and other spaces requiring substantial airflow and cooling support.
How do I determine the required airflow?
Required airflow depends on room volume, heat load, desired air movement, building layout, climate, and application requirements. A professional assessment should consider the entire space rather than using floor area alone.
Does the equipment require a continuous water supply?
Water-assisted cooling systems generally require a suitable water source during cooling operation. The exact water requirements depend on the equipment design, operating conditions, and control system.
Can the fan operate continuously?
Industrial models can be designed for extended operation, but continuous use must remain within the manufacturer's specified operating conditions. Motor cooling, water management, ambient temperature, and maintenance all affect reliability.
What causes an industrial cooling fan to lose cooling performance?
Common causes include high ambient humidity, insufficient water supply, dirty cooling components, mineral deposits, restricted airflow, incorrect installation, or a mechanical or electrical fault.
How often should an industrial water-cooled fan be maintained?
The recommended interval depends on the equipment design and operating environment. Facilities with high dust levels, hard water, or long operating hours may require more frequent inspection and cleaning.
What should I provide when asking a manufacturer for a quotation?
Provide facility dimensions, ambient conditions, heat sources, required cooling area, electrical supply, water availability, expected operating hours, installation conditions, and any control requirements. This information helps the manufacturer evaluate the application more accurately.
12. Final Considerations for Industrial Cooling
An Industrial Vertical Water Cooled Air Conditioning Fan can provide a practical way to improve airflow and cooling conditions in large industrial environments. Its combination of high-volume air movement and water-assisted cooling makes it particularly relevant to workshops, warehouses, production areas, and other spaces where conventional room air conditioning may not be the most practical approach.
The most important factor is application matching. Building dimensions, heat generation, ambient humidity, water availability, airflow distribution, electrical requirements, and operating schedules all influence the final performance. Choosing a product based only on price or maximum airflow can result in inefficient cooling and unnecessary operating costs.
Proper installation and maintenance are equally important. Clean cooling components, reliable water management, unobstructed airflow, correct electrical installation, and regular inspection can help maintain stable operation over the equipment's service life.
