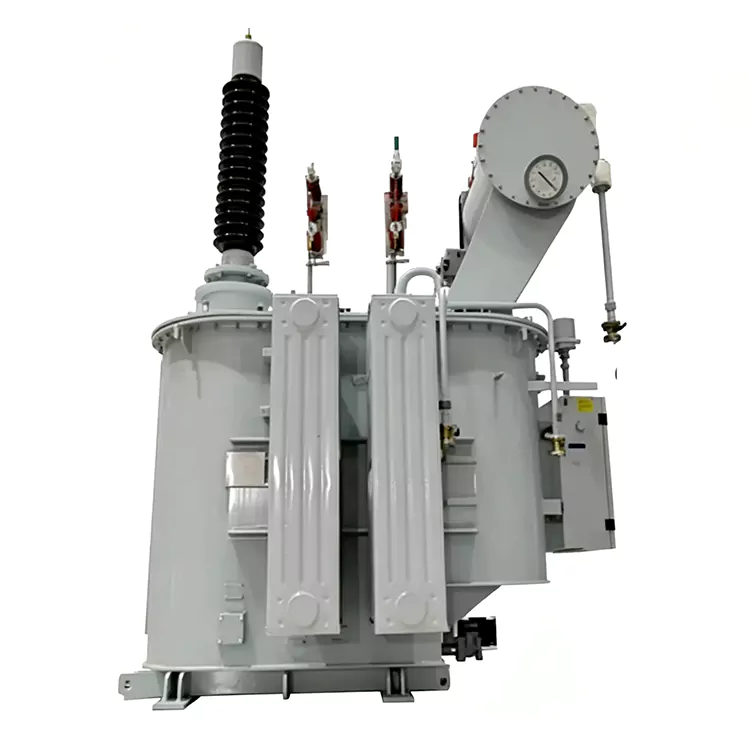

How Does an Oil-Immersed On-Load Tap-Changing Arc Suppression Coil Reduce Arc Faults in Distribution Networks

Yulan has spent years engineering grounding solutions for medium-voltage distribution systems, and one question consistently arises from utilities and industrial operators: how can arc faults be neutralized before they escalate into equipment damage or safety incidents? The answer increasingly points to the Oil-Immersed On-Load Tap-Changing Arc Suppression Coil, a device that combines continuously adjustable inductive grounding with the dielectric strength of insulating oil. Unlike fixed reactors, this equipment compensates capacitive earth-fault currents dynamically, suppressing the arc at its inception rather than merely tolerating it.

The Physics of Arc Suppression

When a single-phase earth fault occurs in an ungrounded or poorly grounded network, the fault current is dominated by the capacitive current of the healthy phases. If this current exceeds a threshold—typically 10 A in overhead networks and lower in cable systems—the arc cannot self-extinguish. The Oil-Immersed On-Load Tap-Changing Arc Suppression Coil injects an inductive current that opposes the capacitive component. When tuned to resonance, the residual current drops to a few amperes, below the arc's self-sustaining limit. The on-load tap changer allows this tuning to happen without de-energizing the coil, which is critical in networks with frequent switching or variable cable configurations.

Why Oil Immersion and On-Load Tapping Matter

The combination is not incidental. A Yulan Oil-Immersed On-Load Tap-Changing Arc Suppression Coil maintains compensation accuracy even as feeders are added or reconfigured, preventing the detuning that plagues fixed-tap installations.

Operational Sequence During a Fault

1. Phase-to-earth fault initiates, charging capacitive currents across the network.

2. Zero-sequence voltage rises, detected by the coil's controller.

3. The on-load tap changer adjusts the reactor tap to match the measured capacitive current.

4. Inductive current cancels the capacitive component at the fault point.

5. Residual current falls below the arc extinction threshold, and the fault self-clears.

6. The coil remains tuned, ready for subsequent events.

Key Performance Advantages

• Reduces fault current to values that prevent arc re-ignition.

• Eliminates the need for immediate tripping, improving supply continuity.

• Limits thermal and mechanical stress on transformers and switchgear.

• Supports high-impedance fault detection when combined with sensitive relays.

• Adapts to network changes without manual retuning.

FAQ

What is an Oil-Immersed On-Load Tap-Changing Arc Suppression Coil used for?
It is used in medium-voltage distribution networks to automatically compensate capacitive earth-fault currents, reducing arc fault intensity and allowing self-extinction without interrupting supply.

How does the on-load tap changer improve arc suppression compared to fixed reactors?
The on-load tap changer adjusts inductance while the coil remains energized, so compensation stays accurate as network topology changes, whereas fixed reactors require outages and manual adjustment.

Can a Yulan Oil-Immersed On-Load Tap-Changing Arc Suppression Coil operate in cable-dominated networks?
Yes. Cable networks produce high capacitive currents, and the continuous adjustability of the Oil-Immersed On-Load Tap-Changing Arc Suppression Coil allows precise resonance tuning across a wide current range.

Conclusion

Arc faults in distribution networks are best managed by preventing the arc from sustaining, not by reacting after damage occurs. The Oil-Immersed On-Load Tap-Changing Arc Suppression Coil delivers that prevention through dynamic inductive compensation, oil-based insulation, and real-time tap adjustment. Yulan designs and manufactures these coils for utilities seeking reliable, low-maintenance grounding solutions. Contact us today to discuss your network's arc suppression requirements and receive a tailored configuration.
