How Does Heat Shrinkable Tube Protect Electrical Connections?

Article Abstract

Heat shrinkable tube is a critical insulation and protection material widely used in electrical, automotive, telecommunications, and industrial wiring systems. This article explains how heat shrinkable tube works, why it is essential for modern electrical safety, and how to select and apply it correctly. It also highlights common challenges users face in cable protection and provides practical solutions based on engineering best practices. The content is designed to help engineers, procurement specialists, and maintenance professionals make informed decisions that improve reliability, safety, and service life of electrical installations.

Table of Contents

• 1. What Is Heat Shrinkable Tube?
• 2. How Heat Shrinkable Tube Works
• 3. Key Benefits in Electrical Systems
• 4. Industrial Applications
• 5. Selection Guide and Material Comparison
• 6. Installation Process Explained
• 7. Common Problems and Practical Solutions
• 8. Frequently Asked Questions
• 9. Conclusion

1. What Is Heat Shrinkable Tube?

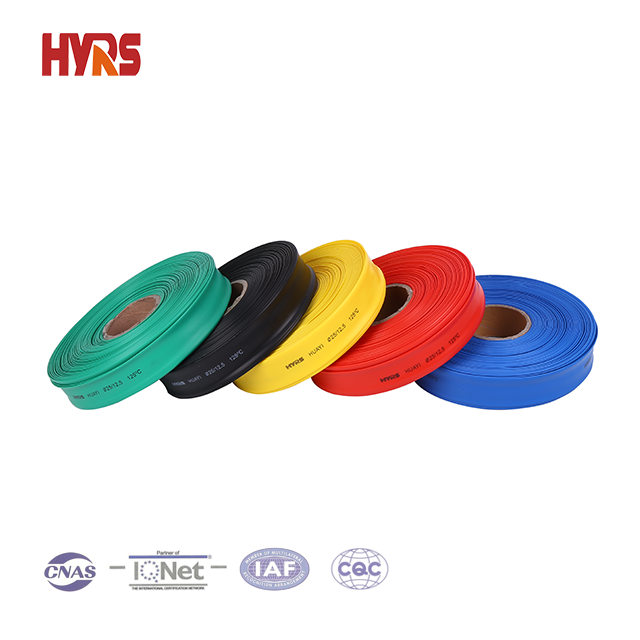

Heat shrinkable tube is a specially engineered polymer sleeve that contracts when exposed to heat. It is typically made from materials such as polyolefin, fluoropolymer, or PVC, which are pre-expanded during manufacturing. When heat is applied using a heat gun or controlled thermal source, the tube shrinks back to its original diameter, tightly conforming to the shape of wires, connectors, or cable joints.

This property allows it to create a secure insulating layer around electrical components. It is widely used to protect wire splices, terminals, and cable assemblies from moisture, abrasion, dust, and mechanical stress.

2. How Heat Shrinkable Tube Works

The working principle of heat shrinkable tube is based on polymer memory. During production, the material is cross-linked and expanded under controlled conditions. This “memory effect” allows it to return to its original shape when reheated.

• Step 1: The tube is expanded and cooled during manufacturing.
• Step 2: It is installed over wires or connectors in its expanded form.
• Step 3: Heat is applied, triggering molecular contraction.
• Step 4: The tube tightly wraps around the substrate, forming a sealed protective layer.

This mechanism ensures a uniform seal without gaps, significantly improving insulation performance and environmental resistance.

3. Key Benefits in Electrical Systems

Heat shrinkable tubes provide multiple functional and economic advantages in electrical engineering applications. Their benefits extend beyond basic insulation.

• Electrical insulation: Prevents short circuits and leakage currents.
• Mechanical protection: Shields wires from abrasion and vibration.
• Environmental sealing: Blocks moisture, dust, and chemical exposure.
• Strain relief: Reduces stress at cable joints and connectors.
• Color coding: Helps identify circuits and wiring systems easily.

In high-voltage or harsh industrial environments, these benefits become critical for maintaining system integrity and reducing downtime.

4. Industrial Applications

Heat shrinkable tubes are used across a wide range of industries due to their versatility and reliability.

• Power distribution and transformer wiring systems
• Automotive wiring harnesses and battery connections
• Telecommunications fiber and copper cable protection
• Railway signaling and control systems
• Industrial automation equipment
• Marine and offshore electrical installations

In all these fields, consistent insulation quality is essential for operational safety and long-term performance.

5. Selection Guide and Material Comparison

Choosing the correct heat shrinkable tube depends on operating conditions, voltage level, and environmental exposure. The table below provides a simplified comparison of common types.

Proper selection ensures durability and reduces maintenance costs over time.

6. Installation Process Explained

Correct installation is essential to achieve optimal performance. The following steps are widely used in professional electrical assembly:

1. Clean and prepare the cable or connector surface.
2. Select a tube with appropriate diameter and shrink ratio.
3. Slide the tube over the target area before connection if necessary.
4. Apply uniform heat using a heat gun from one end to the other.
5. Allow cooling without mechanical stress.

Improper heating, such as overheating or uneven application, may cause bubbles or incomplete sealing.

7. Common Problems and Practical Solutions

Despite its simplicity, improper usage of heat shrinkable tubes can lead to performance issues. Below are common problems and their solutions:

• Problem: Tube does not shrink evenly
  Solution: Apply heat uniformly and rotate the cable during heating.
• Problem: Air bubbles under the tube
  Solution: Use adhesive-lined tubing or increase pre-cleaning quality.
• Problem: Tube cracks after shrinking
  Solution: Avoid excessive heat and choose correct material grade.
• Problem: Poor adhesion
  Solution: Ensure correct temperature range is reached during installation.

8. Frequently Asked Questions

Q1: Can heat shrinkable tube be reused?
No. Once shrunk, the material cannot return to its original expanded state.

Q2: What heat source should be used?
A controlled heat gun is recommended for precise and uniform shrinking.

Q3: Is adhesive-lined tube better?
It depends on the application. Adhesive-lined types provide better sealing in humid or outdoor environments.

Q4: How do I choose the correct size?
Select a tube with a diameter slightly larger than the component before shrinking, considering the shrink ratio.

9. Conclusion

Heat shrinkable tube is an essential component in modern electrical engineering, offering reliable insulation, environmental protection, and mechanical reinforcement. Its simple installation process combined with high performance makes it indispensable across multiple industries. Proper selection and application significantly improve system safety and lifespan.

HUAYI CABLE ACCESSORIES Co.,Ltd. specializes in providing high-quality heat shrinkable tube solutions designed to meet diverse industrial requirements. With advanced manufacturing capabilities and strict quality control systems, the company ensures consistent performance and reliability for global customers.

If you are looking for durable, high-performance cable protection solutions tailored to your project needs, contact us today to get professional support and customized product recommendations from HUAYI CABLE ACCESSORIES Co.,Ltd.
