How Does the Allen Bradley 1756-A4 Drive High-Performance Control in Modern Industrial Systems?

Industrial automation environments depend on stable, scalable, and high-capacity controllers capable of handling increasingly complex tasks. The Allen Bradley 1756-A4 ControlLogix chassis is widely recognized as a foundational hardware element for medium-to-large automation systems. Engineered to house essential ControlLogix modules, it provides the physical backplane and power distribution that allow controllers, communication modules, and I/O modules to perform synchronized operations.

How Does the 1756-A4 Deliver Industrial-Grade Reliability?

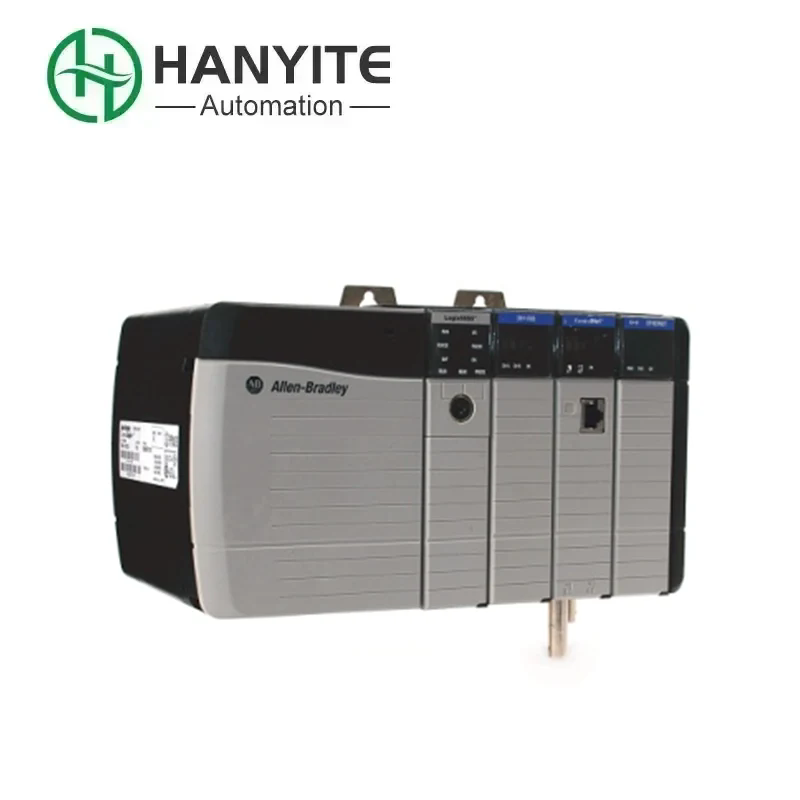

The Allen Bradley 1756-A4 is a 4-slot chassis designed for ControlLogix control systems. It connects modules via a patented high-speed backplane that enables deterministic communication essential for time-critical industrial applications. Its compact footprint and robust electrical design make it suitable for distributed control architecture, machine-level installations, and plant-wide networks.

Key Technical Specifications

Below is a professional parameter summary to help system engineers quickly evaluate integration suitability:

How Its Architecture Enhances Control Performance

The 1756-A4 applies a shared backplane architecture that delivers three significant benefits:

1. High-Speed Data Transfer
   The backplane allows modules to exchange data with minimal latency, improving cycle times in motion control, packaging systems, and high-speed inspection lines.

2. Flexible Module Arrangement
   Engineers can position processors, communication adapters, and specialty modules in any slot, reducing design constraints and installation time.

3. Scalable Power Distribution
   When paired with 1756 series power supplies, the chassis stabilizes voltage across modules to ensure consistent operation in vibration- or temperature-fluctuating industrial environments.

Core Product Advantages

• Modular Expansion Capabilities – Enables system growth from a small 4-slot setup to a full rack architecture using additional chassis.

• Robust Environmental Performance – Supports demanding industrial applications such as petrochemical plants, water treatment facilities, and automated assembly lines.

• Simple Installation – Panel mount design streamlines replacement and maintenance procedures.

• Wide Ecosystem Compatibility – Works with all ControlLogix controllers and communication modules, making it highly versatile for new installations or system upgrades.

How Does the 1756-A4 Support Complex Industrial Ecosystems?

Automation systems across industries are transitioning from isolated controllers to integrated, plant-wide networks full of real-time data exchange, predictive maintenance, and IIoT connectivity. The 1756-A4 serves as a foundation for these ecosystems.

Key Application Scenarios

A. Manufacturing Automation

• Supports high-speed data processing for robotic assembly lines.

• Enables reliable module communication for machine diagnostics and predictive maintenance analytics.

B. Process Control

• Handles distributed control modules for chemical, oil, gas, and pharmaceutical plants.

• Ideal for supervisory control systems requiring stable module interaction.

C. Motion & Drive Control

• Works seamlessly with motion controllers for multi-axis coordination.

• Ensures smooth synchronization with minimal signal latency.

D. Infrastructure & Utility Systems

• Used in water treatment, power distribution automation, and facility management systems.

• Offers long-term reliability and straightforward maintainability.

Comparison with Larger Chassis Models

While larger series (7-slot, 10-slot, 13-slot, 17-slot) support more modules, the 1756-A4 offers:

• Smaller footprint for machine-level applications

• Lower cost and easier installation

• Faster deployment for compact control systems

Thus, the 1756-A4 is ideal when project constraints require a balance of performance and size.

How Will Chassis-Based Control Systems Evolve?

Industrial automation is heading toward hybrid architectures that combine PLC reliability, edge computing, and cloud-connected intelligence. The 1756-A4, although compact, is positioned to remain relevant due to several long-term technological drivers:

A. Modular System Expansion

Growing demand for modular control strategies favors chassis systems with flexible slot arrangements.

B. Demand for Ruggedization

As more systems operate in harsh conditions, chassis like the 1756-A4 will evolve with improved materials, enhanced shock resistance, and extended temperature ranges.

C. Increased Communication Bandwidth

Future designs will integrate higher-speed backplanes to support real-time analytics and AI-assisted automation workflows.

D. Hybrid Cloud-Edge PLC Integration

ControlLogix systems are increasingly merging with plant-level cloud analytics, making stable chassis infrastructure indispensable.

Common Questions About the Allen Bradley 1756-A4

1. How does the 1756-A4 differ from other ControlLogix chassis sizes?

The 1756-A4 provides four slots, making it ideal for compact or machine-level applications. Larger chassis (7–17 slots) accommodate more modules but require more space and higher investment. The 4-slot model maintains full ControlLogix performance with a smaller physical footprint, making it suitable for targeted module configurations.

2. Can the 1756-A4 support high-speed communication modules?

Yes. The chassis supports all ControlLogix communication modules, including EtherNet/IP, ControlNet, and DeviceNet. Its backplane is engineered for high-speed, deterministic module communication, ensuring reliable performance in motion control and high-speed manufacturing systems.

Why Choose the 1756-A4 and How Can Hanyite Support Integration?

The Allen Bradley 1756-A4 remains a dependable choice for industrial environments requiring a flexible, compact, and high-performance ControlLogix chassis. Its robust architecture, modular scalability, and wide compatibility with Rockwell Automation components allow it to adapt to both today's automation demands and future system expansions. Whether used in process industries, manufacturing automation, or motion control systems, it continues to deliver stable performance and easy engineering integration.

For companies seeking reliable sourcing, technical guidance, or large-volume procurement, Hanyite provides professional support and industry experience to help ensure seamless deployment of ControlLogix hardware.

If your project requires product recommendations, system compatibility checks, or a customized quotation, contact us to receive dedicated technical and procurement assistance.
