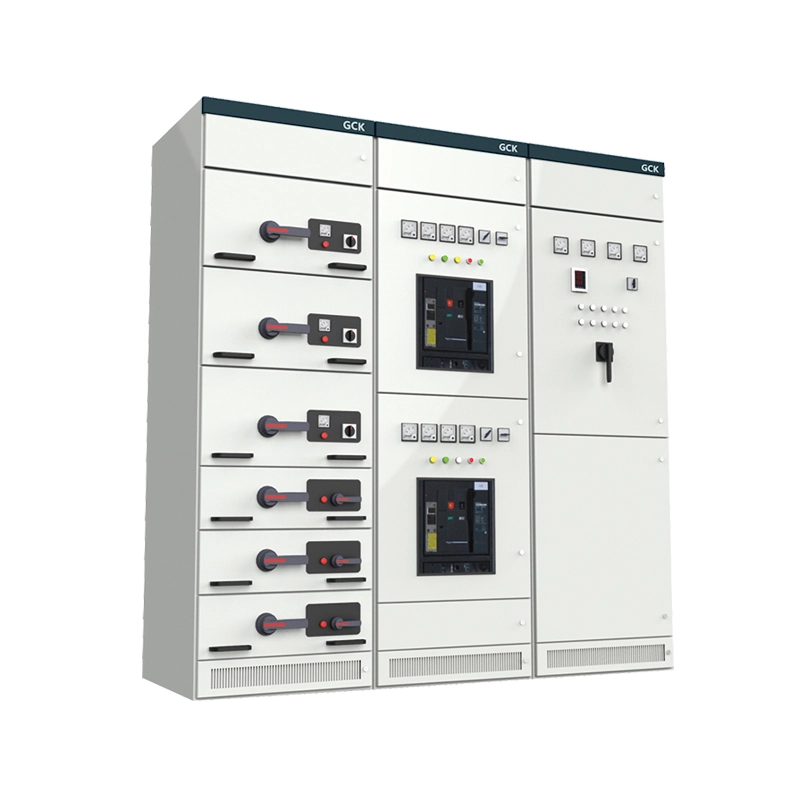

How Does the C-Profile Frame Improve the Structural Strength of an Economical GCK Assembly Switch Cabinet

When selecting low-voltage power distribution equipment, engineers often prioritize mechanical integrity alongside electrical performance. For the GCK C-profile Assembly Economical Switch Cabinet, the structural frame is not merely a housing—it is the backbone that determines withstand capacity, seismic resilience, and long-term operational safety. Lugao Power has engineered this cabinet series with a cold-rolled, galvanized C-profile steel framework that delivers exceptional rigidity while maintaining cost efficiency. But what exactly makes this profile geometry so effective in enhancing structural strength, and why does it matter for your facility?

The Engineering Logic Behind C-Profile Geometry

Unlike conventional square-tube or angle-iron frames, the C-profile (channel section) offers a superior moment of inertia relative to its material mass. This means that for the same weight of steel, a C-section resists bending and torsion far more effectively. In the GCK C-profile Assembly Economical Switch Cabinet, every vertical upright and horizontal cross-member is roll-formed from high-strength steel, creating a closed-loop force system.

Lugao Power applies finite element analysis (FEA) during the design phase to optimize hole patterns and rib placements on the C-profile. These perforations serve dual purposes: they allow flexible mounting of internal components (circuit breakers, busbars, and MCC drawers) and act as stress-relief points that distribute dynamic loads evenly. The result is a cabinet that withstands internal arc pressures and external impact forces without permanent deformation.

Quantitative Comparison: C-Profile vs. Traditional Frames

To illustrate the structural advantage, consider the following benchmark data based on type-tested assemblies from Lugao Power:

The C-profile’s folded edges create a box-section effect that exponentially increases buckling resistance. This is particularly critical during short-circuit events, where electromagnetic forces can reach several tons per meter of busbar. Lugao Power incorporates additional cross-bracing brackets that lock into the C-profile’s slotted channels, enabling tool-less adjustment and rapid field modifications—a feature that traditional welded frames cannot match.

How the Frame Enhances Long-Term Reliability

Structural strength is not only about withstanding peak loads; it also governs vibration damping and dimensional stability over decades of thermal cycling. The GCK C-profile Assembly Economical Switch Cabinet uses bolted interconnections rather than welding, which eliminates heat-affected zones that soften steel. Each joint is fastened with grade 8.8 zinc-plated bolts, ensuring consistent clamping force even after 10,000 operational cycles.

Furthermore, the C-profile’s open channels facilitate natural convection cooling, reducing hot-spot temperatures inside the enclosure. Lower thermal stress means less expansion and contraction in the frame, preserving alignment of drawer mechanisms and fixed-mounted devices. Lugao Power tests every batch for 30-cycle thermal withstand at 100% rated current, verifying that the frame maintains dimensional tolerances within ±0.5 mm—a level of precision that directly extends the service life of plug-in contacts and shutters.

GCK C-profile Assembly Economical Switch Cabinet – FAQ

Q1: Does the C-profile frame require additional reinforcing structures for high short-circuit current ratings (e.g., 65kA/1s)?
A: For ratings up to 65kA/1s, the standard GCK C-profile Assembly Economical Switch Cabinet from Lugao Power does not need extra bracing, provided the cabinet width is 800 mm or less. The inherent stiffness of the 2.0 mm thick C-profile, combined with double-skin side panels, already meets IEC 61439-1 verification. For 80kA or higher, we recommend adding an optional rear steel cross-beam at mid-height—this increases peak withstand capacity to 100kA without altering the main frame design. Our engineering team provides customized FEA reports upon request.

Q2: How does the C-profile frame affect the cabinet’s seismic performance in earthquake-prone zones?
A: The GCK C-profile Assembly Economical Switch Cabinet has been seismically qualified per IEC 60068-2-57 for Zone 4 aggravation (0.5g acceleration). The bolted C-profile joints absorb and dissipate vibrational energy more effectively than welded frames, which tend to crack at weld toes under cyclic stress. Lugao Power installs anti-vibration pads beneath the floor-mounting channels and uses captive nuts in the profile slots to prevent loosening. In our shake-table tests, the cabinet maintained full electrical continuity after 30 minutes of resonant-frequency excitation—a performance standard that exceeds most regional building codes.

Q3: Can the C-profile frame be modified on-site to accommodate future expansion or additional cable entries?
A: Yes. The slotted C-profile design is inherently modular. Field engineers can easily add new mounting rails, cable trunking, or auxiliary contact blocks without drilling or welding, because all fasteners utilize the existing channel grid (25 mm pitch). Lugao Power supplies a range of clip-on nuts, bracket kits, and blanking plates specifically for retrofit purposes. Moreover, the frame’s open top and bottom allow for top/bottom cable entry conversions in under 20 minutes per panel. This future-proofing capability is a major reason why utilities and data centers prefer the GCK C-profile Assembly Economical Switch Cabinet over fixed-frame alternatives.

Practical Recommendations for Specification Engineers

When specifying the GCK C-profile Assembly Economical Switch Cabinet, pay attention to three factors:

• Sheet thickness: Lugao Power uses 2.0 mm for main uprights and 1.5 mm for panels—optimal balance between strength and weight.

• Corrosion protection: Full zinc plating (275 g/m²) plus epoxy-polyester powder coating ensures 1,000-hour salt spray resistance.

• Earth continuity: The C-profile itself serves as a continuous earth conductor, with pre-tapped holes for PE/neutral bars.

By choosing the C-profile architecture, you reduce foundation loading, simplify logistics, and accelerate site installation—all while achieving a safety margin that rivals premium imported brands at a fraction of the cost.

Contact Us

Ready to evaluate the GCK C-profile Assembly Economical Switch Cabinet for your next power distribution project? Lugao Power offers free 3D model downloads, sample panels for factory acceptance testing, and remote engineering support to validate your short-circuit and thermal calculations. Reach out to our technical sales team via the website contact form or call your regional office—we respond within 4 business hours with a tailored structural analysis and commercial proposal. Let us help you build a switchgear solution that stands firm, inside and out.
