How Does the Contactor and Overload Relay Work in a Compressor Motor Starter
2026-01-22

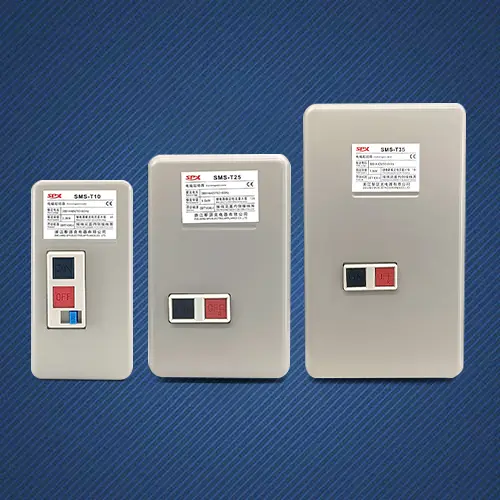

At the heart of every reliable industrial air compressor system lies a crucial component: the Magnetic Motor Starter for Compressor. This device is far more than a simple on/off switch; it is the guardian of your motor. Understanding how its two core parts—the contactor and the overload relay—function together is key to ensuring operational safety, efficiency, and longevity. As experts at SPX, we design these critical assemblies to provide robust protection and control in demanding environments.
The contactor is the high-current switching workhorse. When the start signal is given, its electromagnetic coil energizes, pulling in a set of heavy-duty contacts to connect the power supply to the compressor motor. This allows for remote and automatic control. Conversely, the overload relay is the intelligent protector. It continuously monitors the current drawn by the motor. Under normal conditions, it allows the circuit to remain closed. However, if a dangerous condition like a jammed rotor or low voltage causes sustained overcurrent, it triggers a timed interruption, protecting the motor from burnout.
The Synergy of Protection: A Breakdown
This table illustrates the distinct yet complementary roles of each component within a Magnetic Motor Starter for Compressor:
| Component | Primary Function | Key Action | Outcome |
|---|---|---|---|
| Contactor | Power Switching | Electromagnetically closes & opens the main power circuit. | Enables safe, remote start/stop control of the motor. |
| Overload Relay | Current Monitoring & Protection | Detects sustained overcurrent and thermally trips. | Disconnects power to prevent motor winding damage. |
A well-configured starter from SPX integrates these parts seamlessly. Here are critical steps for ensuring they work in harmony:
-
Correct Sizing: The starter must be matched to the motor's Full Load Amperage (FLA).
-
Proper Calibration: The overload relay's trip setting must be calibrated to the motor's nameplate current.
-
Regular Maintenance: Periodic inspection for contact erosion and verifying mechanical operation is essential.
Magnetic Motor Starter for Compressor FAQ
What happens if the overload relay trips repeatedly?
Do not simply reset it and continue. Repeated tripping indicates a root cause problem such as a failing motor, excessive load, low voltage, or inadequate cooling. Investigate and resolve the underlying issue before restarting.
Can I bypass the overload relay if it keeps tripping?
Absolutely not. Bypassing the overload relay removes the primary thermal protection for your expensive compressor motor, creating a severe fire and equipment damage hazard. The relay is a critical safety device.
How often should the contacts in the contactor be inspected?
For compressors in frequent cyclic duty, inspect the contacts every 6-12 months. Look for signs of pitting, welding, or excessive wear. SPX contactors are built for durability, but worn contacts increase resistance, causing heat and potential failure.
Understanding the dual role of the contactor and overload relay underscores why a quality Magnetic Motor Starter for Compressor is non-negotiable. It’s the engineered interplay between robust switching and intelligent protection that guarantees system uptime and safety. For applications where failure is not an option, trust the engineered solutions from SPX.
Contact us today to speak with our technical team about selecting and configuring the optimal SPX motor starter for your specific compressor requirements.
