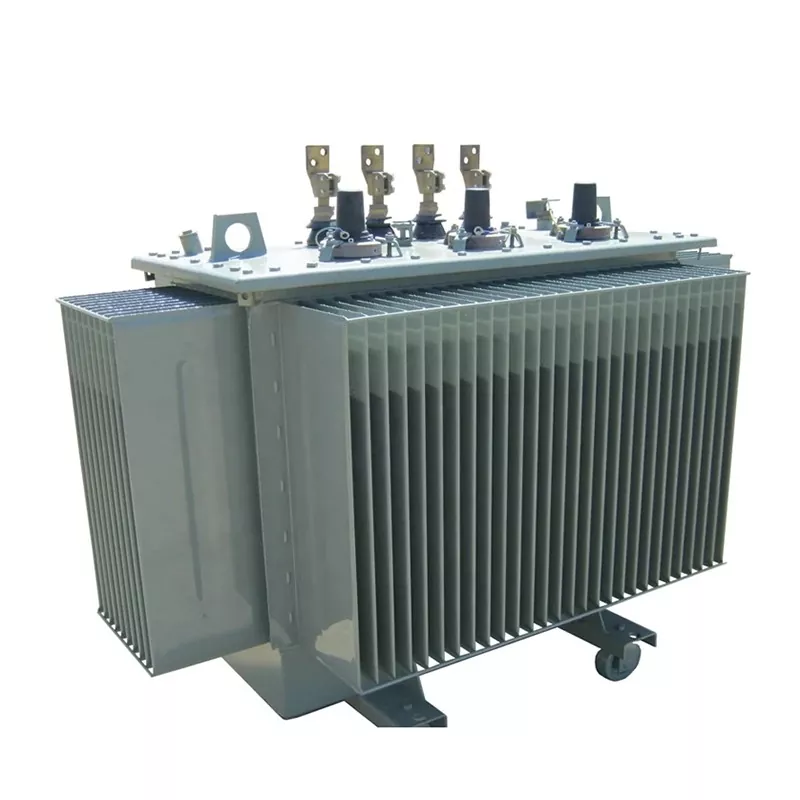

How Does the Cooling Process Work in an Oil Immersed Transformer
2026-02-03
The reliable operation of any power distribution system hinges on the efficient performance of its core components, and the Oil Immersed Transformer is a cornerstone of this infrastructure. A critical challenge these units face is managing the significant heat generated during operation. At LUGAO, we engineer transformers with advanced cooling systems that ensure longevity, stability, and safety. This blog delves into the sophisticated yet elegant cooling process that keeps these vital assets running optimally.
The cooling mechanism in an Oil Immersed Transformer is a synergistic two-stage process involving both conduction and convection.
Stage 1: Core and Winding Cooling (Heat Absorption)
-
Heat generated in the core and windings is immediately transferred to the surrounding insulating oil via conduction.
-
This specialized oil has excellent dielectric and thermal properties, absorbing heat while maintaining electrical insulation.
Stage 2: Oil Circulation and Heat Dissipation
The heated oil then circulates, transferring heat to the external environment. The efficiency of this stage defines the transformer's cooling class:
| Cooling Method | Designation | Process Description |
|---|---|---|
| Natural Cooling | ONAN | Oil circulates Naturally through radiators, and heat is dissipated by Air Natural convection. |
| Forced Air Cooling | ONAF | Fans provide Forced air over radiators, significantly enhancing heat exchange from the naturally circulating oil. |
| Forced Oil & Air Cooling | OFAF | Forced oil pumps accelerate oil flow and fans provide forced air, used for very high-capacity units. |
This efficient cycle ensures the Oil Immersed Transformer operates within safe temperature limits, preventing insulation degradation and extending service life.
Oil Immersed Transformer FAQ
What are the main functions of the oil in a transformer?
The oil serves two primary functions: electrical insulation between live components and as a cooling medium to transfer heat away from the core and windings to the transformer's exterior.
How often should the transformer oil be tested and maintained?
Regular oil analysis is crucial. We recommend annual testing for key parameters like dielectric strength, acidity, and dissolved gas analysis (DGA) to predict potential faults and schedule proactive maintenance.
Can a transformer operate if the cooling system fails?
Operation is severely compromised. Most units have overload capacity for a short time, but prolonged operation without proper cooling will lead to excessive hotspot temperatures, rapid oil degradation, and ultimately, catastrophic insulation failure.
Understanding the cooling process is key to specifying the right transformer and maintaining it for decades of service. The team at LUGAO combines deep expertise with robust engineering to provide Oil Immersed Transformer solutions tailored to your specific load and environmental conditions. For a technical consultation or to learn more about our reliable power distribution equipment, contact us today.
