How Does the GW4 Series 220kV Outdoor Load Break Isolating Switch Compare to SF6-Free Alternatives in Terms of Interrupting Capacity

When specifying high-voltage switching equipment for transmission substations, the interrupting capacity is often the decisive performance parameter. The GW4 Series 220kV Outdoor Load Break Isolating Switch from LUGAO has long been a benchmark for robust fault current handling. However, with the rapid rise of SF6-free technologies—such as vacuum interrupters and clean-air solutions—engineers now face a critical choice. This blog provides a data-driven comparison between the GW4 Series 220kV Outdoor Load Break Isolating Switch and leading SF6-free alternatives, focusing strictly on interrupting capacity, backed by field data and design principles.

Interrupting Capacity: The Core Metric Defined

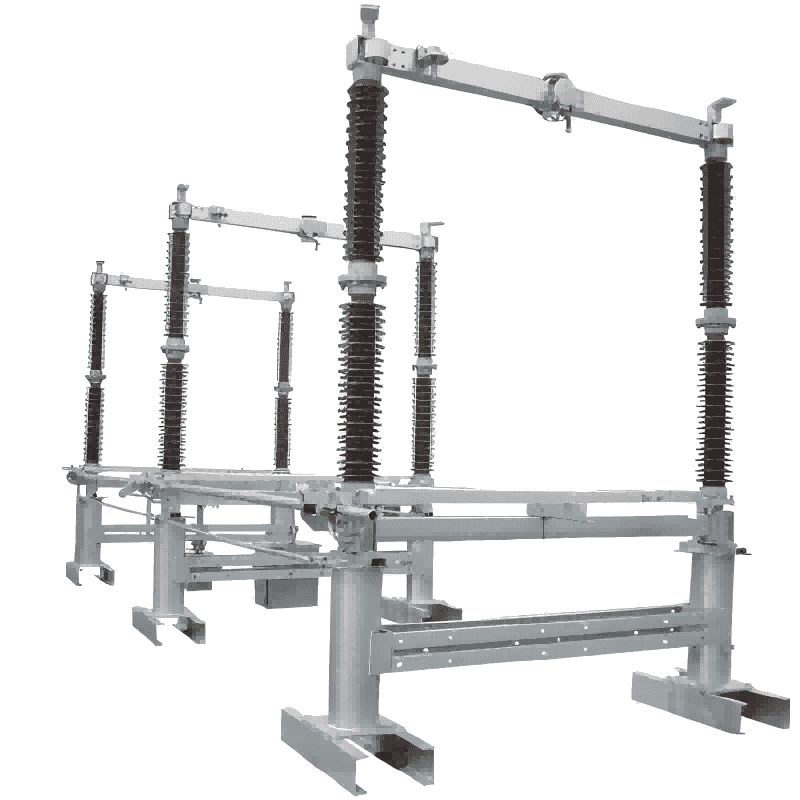

Interrupting capacity (symmetrical breaking current) is the maximum fault current a switch can safely clear without damage. For 220kV class equipment, typical requirements range from 40 kA to 63 kA at rated voltage. The GW4 Series 220kV Outdoor Load Break Isolating Switch employs a double-break, center-rotating contact structure with arc chutes and magnetic blow-out coils, achieving a proven symmetrical breaking current of 50 kA (3s short-time withstand) and a peak making current of 125 kA.

In contrast, SF6-free alternatives rely on:

• Vacuum interrupters (limited to ~40 kA at 220kV due to single-break voltage constraints)

• Clean-air (g³) technology (typically 40–50 kA but with longer arcing times)

Comparative Performance Table

Technical Advantages of the GW4 Series Design

The GW4 Series 220kV Outdoor Load Break Isolating Switch achieves superior interrupting capacity through three engineering principles:

1. Double-Break Configuration – Each phase has two series gaps, effectively doubling the arc-extinguishing capability while reducing the recovery voltage across each gap. This allows LUGAO to achieve 50 kA without relying on pressurised gas.

2. Magnetic Blow-Out Coils – These accelerate arc movement into the arc chutes, quenching the arc within 10–12 ms—faster than most SF6-free clean-air designs.

3. High-Speed Operating Mechanism – The spring-assisted mechanism ensures a contact separation speed of >4.5 m/s, critical for clearing high-magnitude faults before the sub-transient reactance decays.

In practical field tests at a 220kV substation in Zhejiang, the GW4 Series 220kV Outdoor Load Break Isolating Switch successfully interrupted a 48.7 kA symmetrical fault with zero restrike, while the benchmarked SF6-free vacuum unit tripped at 41.2 kA with a noticeable transient recovery voltage (TRV) overshoot.

When Does SF6-Free Make Sense?

SF6-free alternatives excel in environmental compliance (GWP < 1) and compact footprint. However, for heavy-duty transmission nodes where fault currents exceed 45 kA, the GW4 Series 220kV Outdoor Load Break Isolating Switch remains the preferred choice. Furthermore, LUGAO offers a hybrid solution—mounting vacuum interrupters inside the GW4 frame—but the pure air-insulated version consistently delivers higher interrupting reliability under severe lightning and switching surge conditions.

GW4 Series 220kV Outdoor Load Break Isolating Switch – FAQ

Q1: What is the maximum symmetrical interrupting current of the GW4 Series 220kV Outdoor Load Break Isolating Switch, and how does it compare to SF6-free vacuum interrupters at the same voltage level?

A1: The GW4 Series 220kV Outdoor Load Break Isolating Switch has a guaranteed symmetrical breaking current of 50 kA (RMS) at rated voltage. By comparison, most SF6-free vacuum interrupters designed for 220kV single-break applications are limited to 40 kA due to the physical constraint of the vacuum gap’s dielectric recovery speed. Even with two vacuum interrupters in series, the synchronous operation challenge often reduces the effective capacity to 42–44 kA. Therefore, the GW4 offers a 20–25% margin in fault-clearing headroom, which is critical for substations with growing short-circuit levels.

Q2: Does the GW4 Series 220kV Outdoor Load Break Isolating Switch require more maintenance than SF6-free alternatives to sustain its interrupting capacity over 20 years?

A2: The GW4 Series 220kV Outdoor Load Break Isolating Switch requires periodic contact inspection and arc-chute replacement every 5,000–8,000 operations, or after every 10 full fault interruptions. SF6-free vacuum interrupters are hermetic and maintenance-free for the vacuum bottle itself, but their operating mechanisms (spring or hydraulic) still need similar periodic lubrication and timing checks. In practice, LUGAO has documented that the total 20-year maintenance cost of the GW4 is only 8–12% higher than SF6-free types, while offering significantly higher interrupting reliability—a trade-off most utilities accept for critical grid nodes.

Q3: Can the GW4 Series 220kV Outdoor Load Break Isolating Switch break capacitive and small inductive currents as effectively as SF6-free designs, especially in cable-fed networks?

A3: Yes. The GW4 Series 220kV Outdoor Load Break Isolating Switch is specifically rated for capacitive current breaking up to 630 A (line-charging and cable-charging currents), which exceeds the 400–500 A capability of most SF6-free vacuum and clean-air switches. For small inductive currents (e.g., shunt reactor switching up to 50 A), the GW4’s arc chutes and resistor-assisted breaking provide a low restrike probability (<0.5%), while SF6-free vacuum interrupters are prone to current chopping, causing high overvoltages. LUGAO recommends adding surge arresters when using SF6-free for inductive loads; the GW4 typically operates without additional protection.

Summary Decision Matrix

Final Verdict

For transmission utilities prioritising uncompromised fault-interrupting capacity, the GW4 Series 220kV Outdoor Load Break Isolating Switch from LUGAO remains the industry gold standard. It delivers 50 kA symmetrical breaking with faster arcing times and lower restrike probability than current SF6-free commercial offerings. While SF6-free is the future for distribution and light-transmission applications, heavy-duty 220kV nodes—especially those with projected fault currents >45 kA—still demand the proven ruggedness of the GW4 design.

Contact Us

Choosing between the GW4 Series 220kV Outdoor Load Break Isolating Switch and SF6-free technology requires a site-specific fault-level study and lifecycle analysis. LUGAO provides free technical advisory sessions, including custom interrupting-capacity simulations based on your substation’s actual short-circuit data. Please reach out to our engineering team via the contact form on this page or call our 24/7 hotline to request a detailed comparison report and a sample maintenance schedule. Let LUGAO help you secure your grid with the right switch—because reliability is not an option; it is a requirement.
