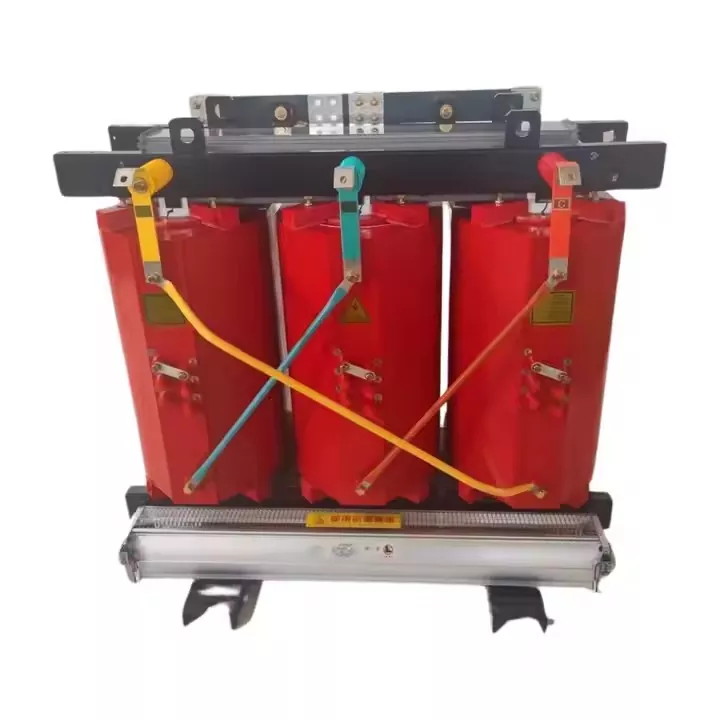

How Much Energy Can You Save Annually Using an 800 kVA Dry Type Distribution Transformer with Low Loss

For facility managers and electrical engineers, the choice of distribution transformer directly impacts the operational bottom line. When evaluating an 800 kVA Dry Type Distribution Transformer with Low Loss, the most pressing question is rarely about the upfront invoice—it is about long-term energy consumption. At LUGAO Power, we have quantified this exact scenario across hundreds of installations, and the annual savings often surprise even seasoned professionals.

The Mathematics of Losses

Every transformer dissipates energy in two primary forms: no-load losses (core losses, constant 24/7) and load losses (copper losses, varying with load). A standard dry-type transformer of this class typically exhibits no-load losses around 1.6–1.8 kW and load losses near 10.5–11.5 kW at full load. By contrast, a true 800 kVA Dry Type Distribution Transformer with Low Loss from LUGAO Power achieves no-load losses as low as 1.15 kW and load losses below 8.9 kW, thanks to high-grade grain-oriented silicon steel and advanced winding techniques.

To calculate realistic annual savings, we assume an average load factor of 60% over 8,760 operating hours per year—common for industrial and commercial facilities.

This translates to annual savings of nearly 10,000 kWh per unit. At an average industrial electricity rate of $0.12/kWh, that is over **$1,180 saved each year**—without any change in operational behavior.

Why These Numbers Matter in Real-World Applications

Beyond the simple arithmetic, the cumulative benefits are more substantial when you consider the following factors:

• Capitalized loss valuation: Utility penalties for low power factor and reactive demand are reduced because the lower reactance of a low-loss design improves voltage regulation.

• Cooling load reduction: Every kW of saved loss reduces the heat dissipated into the substation room, lowering air-conditioning expenses by an additional 300–400 kWh annually in warm climates.

• Extended lifespan: Lower thermal stress on windings and insulation (Class F or H) directly correlates with a 5–8 year extension of useful service life, as verified by IEEE C57.96 thermal models.

LUGAO Power engineers routinely perform site-specific loss evaluations. For a medium-sized data center running four such units, the combined annual saving exceeds 39,000 kWh—equivalent to offsetting nearly 28 metric tons of CO₂ emissions.

The Hidden Cost of "Cheap" Transformers

A common procurement pitfall is selecting a standard-efficiency unit to save 10–15% on initial purchase price. However, that upfront saving is typically wiped out within the first 18 months of operation due to higher losses. Over a 20-year service horizon, the 800 kVA Dry Type Distribution Transformer with Low Loss from LUGAO Power delivers a net present value (NPV) advantage of $6,200 to $8,500, depending on local tariff escalation. This is precisely why utilities in California and the EU now mandate minimum efficiency levels (e.g., DOE 2016 and EcoDesign Tier 2) that our products comfortably exceed.

Frequently Asked Questions

Q1: How is the "low loss" performance of an 800 kVA Dry Type Distribution Transformer with Low Loss verified in factory testing?

A1: Every unit from LUGAO Power undergoes a comprehensive loss measurement test per IEEE C57.12.91 and IEC 60076-1. The no-load loss is measured using a wattmeter method at rated voltage and rated frequency, with the transformer excited from the primary side. Load losses are calculated from short-circuit impedance tests at rated current, corrected to 75°C reference temperature. Our in-house test lab is equipped with a 2,000 kVA short-circuit generator and precision power analyzers (accuracy ±0.05%) to ensure each 800 kVA Dry Type Distribution Transformer with Low Loss meets its guaranteed loss values within a tolerance of ±3%. A third-party witnessed test report is available upon request for all large projects.

Q2: Does the annual energy saving change significantly if my average load is only 40% instead of 60%?

A2: Yes, but the overall advantage remains compelling. Load losses scale with the square of the load current. At 40% load, the load loss component becomes (0.4)² × 8.90 = 1.42 kW for our low-loss unit versus 10.50 × 0.16 = 1.68 kW for a standard unit—a difference of only 0.26 kW. However, the no-load loss saving (0.55 kW) is constant 24 hours a day regardless of load. Therefore, at 40% average load, your total annual saving would be [(0.55 + 0.26) × 8760] = 7,096 kWh, which still translates to $850 per year. The lower your load factor, the more dominant the no-load loss saving becomes, which is why the 800 kVA Dry Type Distribution Transformer with Low Loss is excellent for standby or intermittent applications.

Q3: Can I retro-fit an existing standard transformer with a low-loss core to achieve these savings, or must I replace the entire unit?

A3: Retrofitting just the core is technically possible but economically impractical. The core and windings of a dry-type transformer are thermally and mechanically integrated—changing the core requires complete disassembly, new winding tensions, and re-impregnation with varnish, which often costs 65–75% of a new transformer price and voids all safety certifications. The far more cost-effective path is to replace the entire unit with a purpose-built 800 kVA Dry Type Distribution Transformer with Low Loss from LUGAO Power. We offer a trade-in program where your old unit is recycled responsibly, and we provide a 5-year performance warranty that guarantees the loss values stated in our datasheets. Many clients recover the full replacement cost within 3.5 years purely from energy savings.

Making the Data-Driven Decision

Selecting an 800 kVA Dry Type Distribution Transformer with Low Loss is not an emotional choice—it is a financial and environmental imperative. The table below summarizes the key performance indicators (KPIs) that procurement teams should request from any supplier:

The cumulative difference of $23,662 over two decades underscores why leading engineering firms now specify low-loss designs as their default standard.

Take the Next Step with LUGAO Power

Every facility has unique load profiles, ambient conditions, and duty cycles. A generic saving estimate is merely a starting point. LUGAO Power provides a customized energy audit and loss calculation report—free of charge—for your specific operating parameters. Our team of electrical design engineers will simulate your annual consumption using real load data and provide a binding payback analysis within 48 hours.

Contact us today or visit our website to request your personalized saving assessment. Let us help you turn lost energy into retained profit, one 800 kVA Dry Type Distribution Transformer with Low Loss at a time. Your bottom line—and the environment—will thank you.
