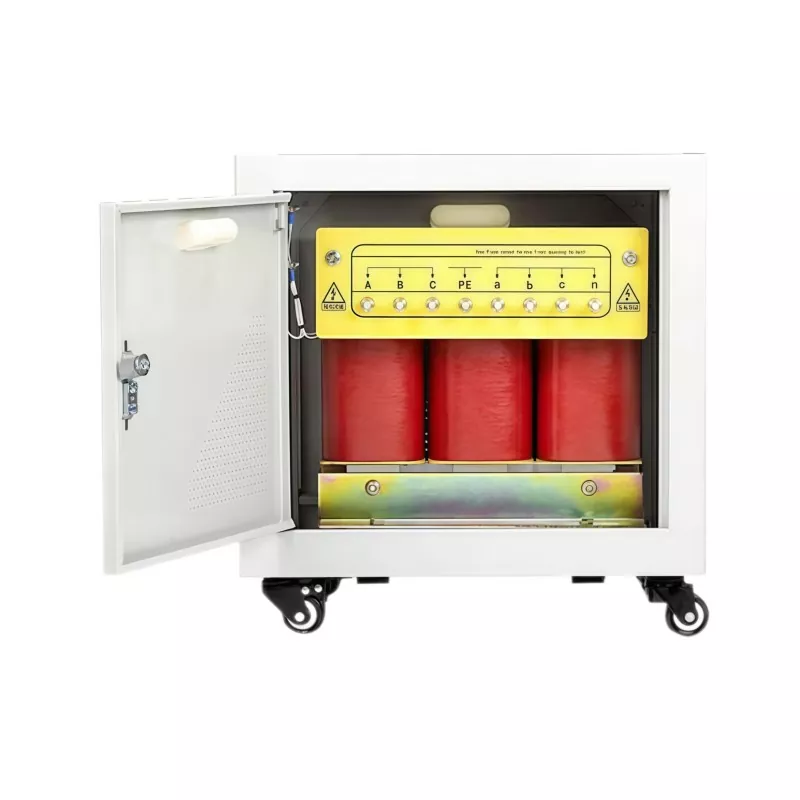

How to Install a 50KVA Dry Type Isolation Transformer with MCCB Correctly
2026-10-13
Installing a 50KVA Dry Type Isolation Transformer with MCCB is a critical task that directly affects electrical safety, equipment lifespan, and operational reliability. As a leading manufacturer, Guangbian has supplied thousands of these units to industrial, commercial, and medical facilities worldwide. This guide outlines professional installation steps, key considerations, and answers to common questions to help you achieve a safe and compliant setup.
Pre-Installation Checklist
Before mounting your 50KVA Dry Type Isolation Transformer with MCCB, verify the following:
| Item | Requirement |
|---|---|
| Ambient temperature | -5°C to +40°C |
| Humidity | ≤95% (non-condensing) |
| Altitude | ≤1000m (derate above) |
| Ventilation clearance | ≥300mm on all sides |
| Foundation | Level, vibration-free surface |
| Cable sizing | Based on primary/secondary current |
Step-by-Step Installation Guide
-
Inspect the Unit – Check for shipping damage, loose connections, and verify the nameplate matches your 50KVA Dry Type Isolation Transformer with MCCB specifications.
-
Mount the Transformer – Secure to a concrete floor or steel frame using bolts. Ensure the enclosure is grounded to the building's earth electrode.
-
Wire the Primary Side – Connect input cables to the primary terminals. Use torque values specified by Guangbian (typically 15–20 N·m for M8 bolts).
-
Wire the Secondary Side – Connect output cables to the secondary terminals. Maintain phase sequence and polarity.
-
Connect the MCCB – The molded case circuit breaker should be mounted upstream or integrated into the enclosure. Verify the MCCB rating matches the transformer's rated current (approximately 72A for 50KVA at 400V).
-
Ground the System – Bond the core, enclosure, and MCCB to a common ground bus.
-
Test Before Energizing – Perform insulation resistance test (≥5 MΩ), verify winding resistance, and check MCCB trip settings.
-
Energize and Monitor – Apply power gradually. Measure output voltage, current, and temperature rise under load.
Key Safety Precautions
-
Always follow local electrical codes (NEC, IEC, or equivalent).
-
Use properly rated fuses or breakers on both primary and secondary sides.
-
Ensure the 50KVA Dry Type Isolation Transformer with MCCB is installed in a well-ventilated area.
-
Never bypass the MCCB during operation.
FAQ: 50KVA Dry Type Isolation Transformer with MCCB
Q: What is the correct MCCB size for a 50KVA Dry Type Isolation Transformer with MCCB?
A: For a 50KVA transformer at 400V three-phase, the rated current is about 72A. A 100A MCCB with a thermal-magnetic trip unit is typically recommended. For 480V systems, use an 80A MCCB. Always confirm with Guangbian's technical team for your specific voltage and load profile.
Q: How often should I maintain a 50KVA Dry Type Isolation Transformer with MCCB?
A: Perform visual inspections monthly, torque checks every six months, and insulation resistance tests annually. In dusty or high-humidity environments, clean the windings and check the MCCB contacts every three months. Guangbian recommends replacing the MCCB after 10,000 operations or five years, whichever comes first.
Q: Can a 50KVA Dry Type Isolation Transformer with MCCB be installed outdoors?
A: Standard units are for indoor use. For outdoor installation, you must use an IP54 or higher enclosure and add rain hoods. The MCCB must be rated for the ambient temperature. Guangbian offers outdoor-rated versions upon request.
