How to Select a DC Circuit Breaker for Reliable Protection

1. Understanding DC Circuit Breakers

A DC circuit breaker is an electrical protection device designed to interrupt direct-current circuits when specified fault conditions occur. Depending on its design and ratings, it can protect wiring and connected equipment against overloads and short circuits while allowing a circuit to be disconnected when required.

Unlike alternating current, direct current maintains the same direction of flow. AC naturally passes through zero current during each cycle, which can help extinguish an electrical arc when contacts separate. DC does not provide the same periodic zero-crossing effect, making arc interruption an important design consideration.

For this reason, a DC circuit breaker must be specifically rated for the voltage, current, and fault conditions of the intended application. Using a device without an appropriate DC rating can create serious electrical hazards.

DC circuit breakers are commonly used in solar photovoltaic systems, energy storage installations, DC power distribution, telecommunications equipment, and industrial control applications. The correct device depends on the actual electrical design rather than the application name alone.

2. How Do DC Circuit Breakers Work?

A DC circuit breaker monitors current through a protection mechanism. When the current exceeds the trip threshold under a qualifying fault condition, the breaker releases its contacts to interrupt the circuit.

Step 1: Normal Current Flow

During normal operation, current passes through the closed contacts. The breaker carries current within its specified rating and operating conditions.

Step 2: Fault Detection

When an overload or short circuit occurs, the protection mechanism detects the abnormal current. Depending on the design, thermal elements may respond to sustained overloads, while magnetic or other mechanisms can respond rapidly to high fault currents.

Step 3: Contact Separation and Arc Control

As the contacts separate, an electrical arc may form. A DC-rated breaker uses an arc-control design appropriate to its intended voltage and current conditions to interrupt the circuit safely within its specified limits.

Step 4: Fault Isolation and Inspection

After tripping, the affected circuit remains disconnected until the cause of the fault has been investigated and the breaker is reset according to the manufacturer's instructions. Repeated tripping should never be treated as a problem that can simply be solved by repeatedly switching the device back on.

3. Where Are DC Circuit Breakers Commonly Used?

Solar Photovoltaic Systems

Solar panels generate direct current. DC circuit breakers may be used in appropriately designed PV distribution circuits to provide overcurrent protection and circuit interruption. Their voltage rating must account for the array's maximum possible operating voltage, including relevant temperature effects, and their current rating must match the circuit design.

Battery Energy Storage Systems

Battery systems can deliver substantial fault current. Protection devices must therefore be selected with attention to battery voltage, available fault current, conductor capacity, and the battery manufacturer's requirements. Some installations also require dedicated battery disconnects and additional protective equipment.

Industrial DC Power Distribution

Factories, automation equipment, control panels, and DC power supplies may use circuit breakers to protect distribution branches and connected loads. Correct coordination helps reduce unnecessary shutdowns when a fault occurs in an individual branch.

Telecommunications and Auxiliary Power

DC power is widely used in communications infrastructure, monitoring equipment, and backup power arrangements. A correctly rated breaker helps protect the relevant circuit while supporting maintenance and system isolation procedures.

In each application, engineers should evaluate the complete circuit, including the source, wiring, loads, environmental conditions, and any upstream or downstream protective devices.

4. DC Circuit Breaker vs. AC Circuit Breaker

Although DC and AC circuit breakers may look similar, their electrical ratings and arc-interruption designs are not necessarily interchangeable. Selecting a breaker based only on appearance or nominal current can result in inadequate protection.

For solar installations, both types may be required: a DC-rated device on the PV side and an appropriately rated AC breaker on the inverter's AC side. Always check the exact product marking and technical documentation instead of assuming that an AC rating also applies to DC.

5. Which Specifications Should Buyers Evaluate?

Comparing technical specifications before purchasing helps reduce compatibility issues, installation delays, and unexpected replacement costs.

Rated Voltage

The breaker must be rated for the maximum voltage it may encounter in the intended circuit. For photovoltaic systems, this includes evaluating the maximum array open-circuit voltage under the relevant environmental conditions. A breaker with an insufficient DC voltage rating may not safely interrupt a fault.

Rated Current

Rated current indicates the current the breaker is designed to carry under specified conditions. The selected rating must be coordinated with conductor ampacity, load characteristics, installation conditions, and applicable code requirements. Simply matching the breaker rating to a device's advertised power is not enough.

Breaking Capacity

Breaking capacity is the maximum fault current a circuit breaker is rated to interrupt under defined test conditions. It must be adequate for the prospective short-circuit current at the installation point. A higher rated current does not automatically mean a higher breaking capacity.

Number of Poles

Single-pole, double-pole, and other configurations are designed for different circuit arrangements. Pole count alone does not establish whether all conductors are appropriately protected or disconnected. Confirm the wiring diagram, required isolation arrangement, and manufacturer instructions for the specific model.

Trip Characteristics

Where a product offers different trip curves, the selected characteristic should suit the load's starting current and expected operating behavior. A trip curve that is too sensitive may cause nuisance tripping, while an unsuitable curve may compromise the intended protection strategy.

Environmental and Installation Conditions

Ambient temperature, enclosure conditions, humidity, altitude where relevant, mounting method, terminal capacity, and wire size can affect the suitability of a breaker. Check the manufacturer's derating guidance and installation requirements before finalizing the specification.

6. How to Select the Right DC Circuit Breaker

A systematic selection process helps purchasing teams, electrical contractors, distributors, and system integrators identify products that meet project requirements.

Step 1: Define the Application

Identify whether the breaker will be installed in a solar array, battery system, industrial DC circuit, or another application. Determine the source characteristics, load behavior, and required operating conditions.

Step 2: Calculate the Electrical Requirements

Confirm maximum circuit voltage, design current, conductor capacity, and prospective fault current. For PV circuits, include the relevant array configuration and environmental corrections. Have a qualified electrical designer verify the calculations and applicable code requirements.

Step 3: Confirm the Required Pole Arrangement

Review the circuit diagram to establish the appropriate number of poles and the required disconnection arrangement. Determine whether the selected breaker has polarity or line/load connection restrictions. Do not assume that every DC breaker is suitable for bidirectional current or reverse-polarity connection.

Step 4: Check Coordination With Other Protection Devices

Review coordination with upstream breakers, fuses, battery protection, and downstream loads. Proper coordination can help isolate a fault without unnecessarily shutting down a larger section of the system.

Step 5: Verify Product Documents

Request the technical datasheet, wiring diagram, applicable certification information, terminal specifications, and installation instructions. Confirm that the exact model—not merely the product family—meets the project requirements.

Step 6: Evaluate Supply and Procurement Requirements

For bulk purchases, assess product consistency, quality documentation, availability, packaging, lead time, and after-sales support. If you are sourcing for an overseas project, confirm that the required approvals and documentation are accepted in the destination market.

7. Common DC Circuit Breaker Selection Mistakes

Using an AC Breaker in a DC Circuit Without Approval

A similar appearance or current rating does not establish suitability. Use a breaker only when its manufacturer documentation explicitly supports the intended DC application and operating conditions.

Ignoring the Maximum System Voltage

Choosing a breaker based on nominal voltage alone can be problematic, especially in photovoltaic systems where open-circuit voltage changes with temperature. Verify the maximum voltage calculated for the actual design.

Confusing Rated Current With Breaking Capacity

These values describe different capabilities. A breaker may carry a particular rated current but still be unsuitable for the prospective short-circuit current at the installation point.

Overlooking Polarity and Wiring Instructions

Some DC breakers have specific polarity or connection-direction requirements. Incorrect wiring can affect their ability to interrupt a fault. Follow the exact diagram for the selected model.

Choosing Solely on Price

Purchase price is important, but it should be evaluated alongside ratings, documented compliance, quality consistency, delivery reliability, and technical support. An inexpensive but unsuitable device can increase total project costs.

8. Installation and Maintenance Best Practices

Correct installation is essential to achieving the performance specified by the manufacturer. Electrical work should be carried out by qualified personnel using approved procedures and appropriate protective equipment.

Before Installation

• Verify the model number, electrical ratings, and required accessories.
• Inspect the breaker and enclosure for visible damage.
• Confirm the wiring diagram, polarity requirements, conductor size, and terminal compatibility.
• Isolate all relevant power sources and verify the absence of hazardous voltage using appropriate equipment and procedures.

During Installation

• Install the device in the specified orientation and mounting arrangement.
• Connect conductors according to the manufacturer's diagram.
• Tighten terminals to the specified torque using suitable tools.
• Maintain required clearances and follow enclosure and environmental requirements.
• Verify the overall protection design before energizing the system.

During Routine Maintenance

• Inspect for discoloration, overheating signs, loose connections, and physical damage.
• Investigate unexplained or repeated tripping instead of repeatedly resetting the breaker.
• Check the enclosure and terminal condition according to the maintenance schedule.
• Replace devices that show damage or fail required inspection and testing.
• Record inspection results and follow the manufacturer's service recommendations.

Maintenance intervals and testing methods should follow the applicable regulations, equipment instructions, and site-specific risk assessment. Never open or service energized equipment unless the work is specifically permitted under an approved procedure.

9. Why Consider YRO DC Circuit Breakers?

When sourcing DC protection devices, buyers need a supplier that can provide clear technical information and product options aligned with the requirements of the intended system.

YRO focuses on low-voltage electrical components and photovoltaic-related products. Its product range includes DC circuit breakers in different voltage, current, and pole configurations for relevant electrical protection applications.

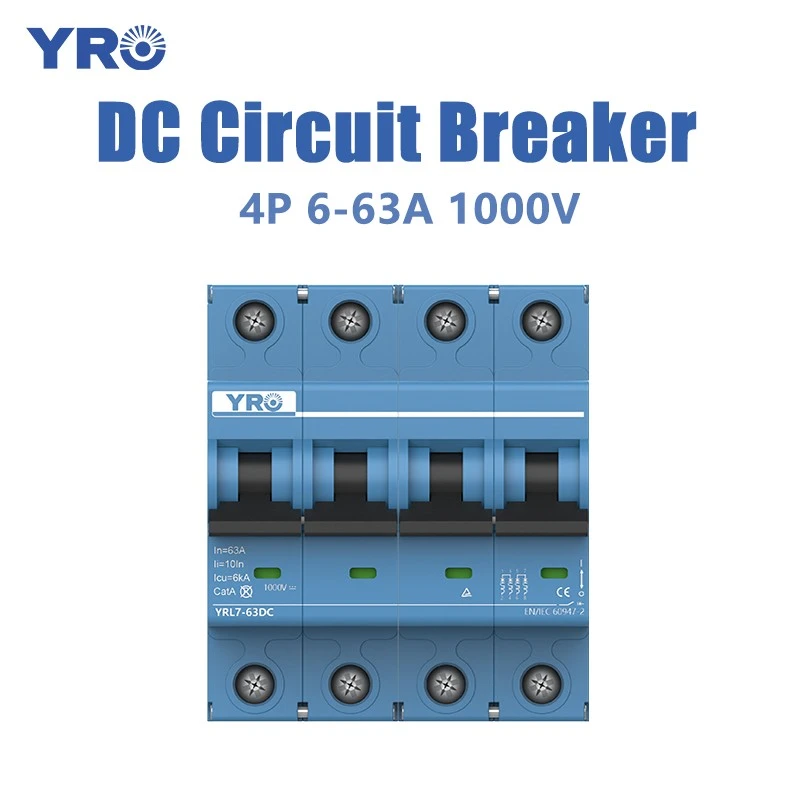

Depending on the project, buyers can review options such as compact DC miniature circuit breakers and higher-current DC molded case circuit breakers. The final choice should be based on the individual model's verified ratings and application requirements.

What Should You Confirm With Your Supplier?

• Product suitability: Confirm the model's DC voltage, rated current, breaking capacity, and pole arrangement.
• Technical documentation: Request the datasheet, connection diagram, and installation instructions.
• Compliance: Verify the relevant certificates and standards for the exact model and destination market.
• Project quantities: Provide estimated order volume and required delivery schedule.
• Procurement support: Clarify packaging, labeling, model identification, and any project-specific documentation needs.

For product details, visit the YRO DC Circuit Breaker product range and compare the available models against your project's technical requirements.

10. Frequently Asked Questions About DC Circuit Breakers

Conclusion: Make DC Circuit Protection a Priority

Choosing a DC circuit breaker requires more than matching a voltage or current number. Rated voltage, rated current, breaking capacity, pole configuration, connection requirements, environmental conditions, and compliance documentation all play important roles in determining whether a device is suitable for a particular application.

By defining the circuit requirements first, checking the exact product documentation, and coordinating the breaker with the complete protection system, buyers and engineers can reduce selection errors and improve long-term operating reliability.
