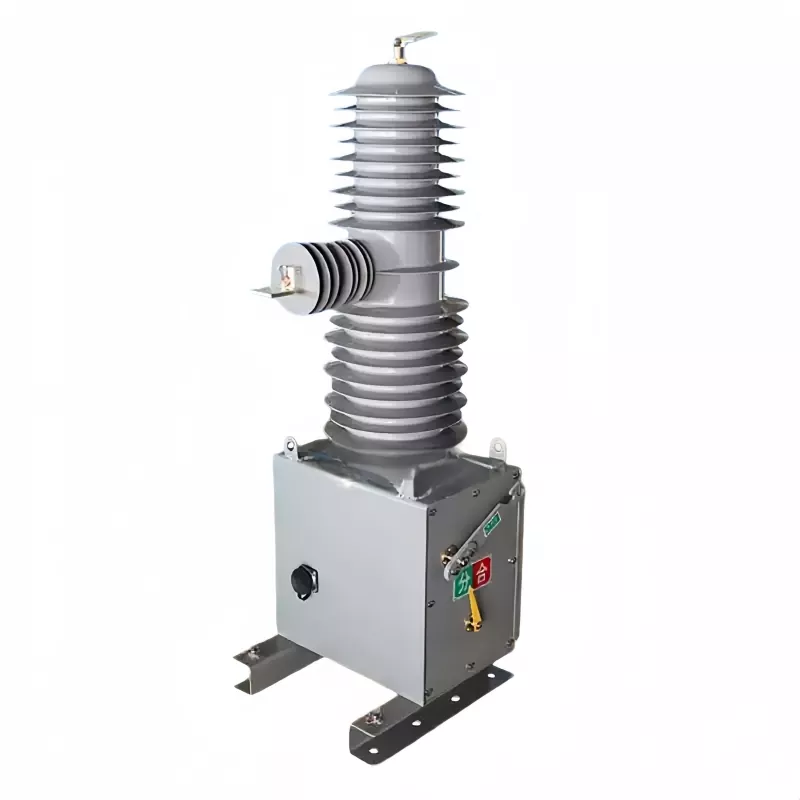

How to Select the Right 33kV Single Pole Outdoor Circuit Breaker for Rural Distribution Networks

Rural electrification presents unique challenges—long transmission distances, frequent lightning strikes, animal interference, and limited maintenance access. Unlike urban substations, rural networks demand equipment that is rugged, cost-effective, and simple to operate. This is where the 33kV Single Pole Outdoor Circuit Breaker becomes indispensable. For over a decade, Anqiang has engineered pole-mounted breakers specifically for harsh, low-access environments, helping utilities reduce outage minutes and improve feeder reliability. Selecting the wrong unit, however, leads to nuisance tripping, premature contact wear, and unsafe reclosing sequences. This guide walks through five critical selection criteria, backed by field data and international standards.

1. Interrupting Medium – Vacuum vs. SF6

The first major decision is the arc-quenching technology. Both vacuum and SF6 interrupters are available for 33kV Single Pole Outdoor Circuit Breaker designs, but rural conditions heavily favour one over the other.

Recommendation: For typical rural loads (5–15 MVA feeders), a vacuum-type 33kV Single Pole Outdoor Circuit Breaker from Anqiang offers superior resilience against temperature swings and eliminates greenhouse-gas compliance paperwork.

2. Short-Circuit Rating and Fault Level

Rural networks often have weak source impedances, meaning fault currents can be lower but persist longer. Calculate the maximum symmetrical fault current at the pole location. Most rural substations deliver 12.5–20 kA. Select a 33kV Single Pole Outdoor Circuit Breaker with a rated short-circuit breaking capacity at least 20% higher than the calculated value—this safety margin accounts for future grid upgrades.

Anqiang provides nameplate data including %DC component and first-pole-to-clear factors, which are often ignored by generic suppliers. Always verify that the breaker’s closing and latching capability matches the peak make-current (2.5 × RMS symmetrical).

3. Operating Mechanism – Spring vs. Magnetic Actuator

Reliability in remote sites depends on the stored-energy mechanism.

• Spring-operated (motor-charged): Proven, easy to manually charge with a hand lever, and repairable with basic tools. Preferred by Anqiang for most rural projects.

• Magnetic actuator: Fewer moving parts but requires a stable DC supply (≥110 V) and electronic controllers—vulnerable to lightning-induced transients without proper surge arresters.

For lines without station batteries, choose a 33kV Single Pole Outdoor Circuit Breaker with a manual trip-coil and capacitor-trip module. This ensures trip capability even when auxiliary power fails—a life-saver during storm events.

4. Insulation Coordination and Creepage Distance

Rural areas suffer from heavy pollution (dust, bird droppings, agricultural spray). According to IEC 60815, select a creepage distance of at least 25 mm/kV for medium pollution, and 31 mm/kV for heavy pollution. For a 33 kV system (phase-to-phase), this translates to a minimum 900 mm creepage on the porcelain or silicone housing.

Anqiang offers hydrophobic silicone rubber housings with 1,050 mm creepage as standard, exceeding IEC requirements. This directly reduces flashover-related outages—the number one cause of unplanned downtime in farming regions.

5. Reclosing Functionality and Controller Compatibility

Most rural feeders rely on auto-reclosing to clear transient faults (80% of faults are temporary). Ensure your 33kV Single Pole Outdoor Circuit Breaker supports at least 4-shot reclosing (fast → delayed → delayed → lockout) with adjustable dead times. The control cubicle must accept input from pole-mounted CTs and VTs.

Anqiang integrates a modular recloser controller with built-in fault direction detection, enabling sectionalising of long radial feeders. This reduces the number of customers affected during a permanent fault by 60–70%.

6. Physical Mounting and Pole Structure

Check the pole diameter (typically 300–400 mm) and bracket bolt patterns. A heavy breaker (≥150 kg) may require a double-pole structure or additional bracing. Anqiang provides lightweight composite housings that cut total weight to 110 kg, allowing single-pole installation without reinforcement—saving crane costs and installation time.

Frequently Asked Questions (FAQ)

Q1: Can a 33kV Single Pole Outdoor Circuit Breaker be used on an ungrounded delta system, or does it require a neutral point?
A1: Yes, it can be used on both effectively earthed and unearthed (delta) systems. However, the transient recovery voltage (TRV) waveform differs significantly. For unearthed systems, the first-pole-to-clear factor is 1.5 instead of 1.3, which imposes a higher TRV peak. You must select a 33kV Single Pole Outdoor Circuit Breaker with a TRV rating that matches your system’s neutral earthing practice. Anqiang offers two distinct TRV classes (class S1 for earthed and class S2 for unearthed) with clear labels on the rating plate. Always provide your system earthing details at the time of ordering.

Q2: What is the recommended frequency of mechanical operation tests for a 33kV Single Pole Outdoor Circuit Breaker installed in a dusty rural location?
A2: For standard rural environments, IEC 62271-100 recommends a full mechanical endurance test every 2 years or after 2,000 operations, whichever comes first. However, in areas with high silica dust (e.g., near quarries or dry riverbeds), Anqiang advises reducing that interval to 12 months. The test should include closing time, opening time, and bounce measurement on all three poles (if ganged) or on the single pole. Additionally, perform a low-resistance contact measurement (micro-ohm meter) to detect oxidation. Many operators skip this and face contact welding during a subsequent fault—a preventable failure.

Q3: How do I coordinate a 33kV Single Pole Outdoor Circuit Breaker with downstream fuse-cutouts on a long rural feeder?
A3: This is a classic time-current coordination challenge. The breaker’s recloser controller must have a fast inverse-time curve (A or B) that operates slower than the expulsion fuse’s minimum melting time but faster than the upstream substation breaker. A practical rule: set the 33kV Single Pole Outdoor Circuit Breaker’s fast trip at 1.3× the fuse’s rated current for a 0.1-second delay, and use a delayed trip (TCC curve 3) at 0.5 seconds for backup. Anqiang provides coordination software that simulates your exact fuse size (6A to 100A) and generates a TCC plot before dispatch. This eliminates nuisance blowing of fuses and prevents the breaker from tripping on harmless transformer inrush.

Final Checklist Before Purchase

• □

  Confirmed fault level (kA) at installation point

• □

  Verified ambient temperature extremes

• □

  Checked pole-loading capacity (weight + wind load)

• □

  Selected auxiliary voltage (AC/DC, V) for controller

• □

  Requested pollution class and creepage drawing

• □

  Requested factory acceptance test (FAT) report with TRV oscillograms

Why Anqiang Stands Apart

Every 33kV Single Pole Outdoor Circuit Breaker from Anqiang undergoes 100% dielectric and mechanical routine tests per IEC 62271-100, with a 5-year warranty on the vacuum interrupter. Our technical support team provides site-specific coordination studies and installation videos—no extra charge. With over 2,300 units deployed across Asia and Africa, Anqiang has become the preferred partner for rural distribution upgrades.

Ready to specify the correct breaker for your next rural project?
Contact our engineering desk with your single-line diagram and fault-level data. We will reply within 24 hours with a dimensioned proposal, TCC curves, and a commercial offer. Anqiang – Powering remote communities, one pole at a time.
