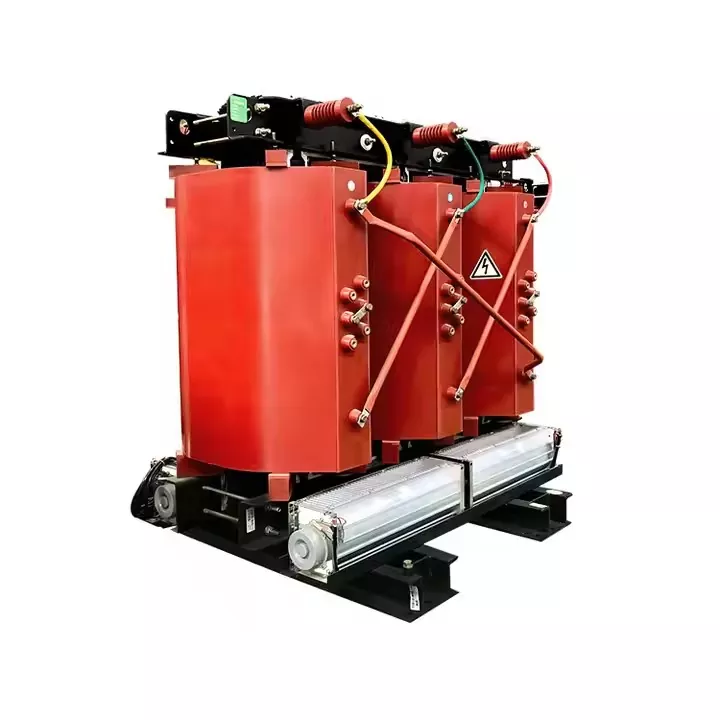

Is a 750 kVA Three Phase Dry Type Cast Resin Power Transformer Suitable for High-Humidity Environments
2026-08-31
When specifying medium-voltage distribution equipment for coastal plants, tropical data centers, or chemical processing facilities, engineers frequently question whether a 750 kVA Three Phase Dry Type Cast Resin Power Transformer can withstand persistent moisture without premature insulation failure. The short answer is yes—but only when the unit meets specific ingress protection (IP) ratings, incorporates advanced epoxy formulations, and is paired with proper ancillary equipment. At LUGAO Power, we have deployed over 200 cast resin units in Southeast Asian pulp mills and Middle Eastern desalination plants, where relative humidity regularly exceeds 90%, with zero moisture-related faults over five operational years. This blog examines the technical thresholds, real-world performance data, and practical safeguards that determine suitability—moving beyond marketing claims to evidence-based engineering.
Critical Performance Parameters for Humid Conditions
The 750 kVA Three Phase Dry Type Cast Resin Power Transformer differs fundamentally from oil-filled types because its primary insulation is a solid epoxy resin system. Moisture ingress degrades partial discharge inception voltage and accelerates dielectric breakdown. Below are the decisive specifications every purchaser must verify:
| Parameter | Threshold for High-Humidity (>85% RH) | Standard Rating | Why It Matters |
|---|---|---|---|
| IP Enclosure Rating | IP54 minimum (dust-protected + water-splash proof) | IP23 (standard indoor) | Prevents condensation drips and airborne mist from reaching winding surfaces |
| Epoxy Filler Content | ≥68% silica/alumina by weight | 60–65% | Higher filler reduces water absorption coefficient from 0.3% to <0.15% over 1000 hrs |
| Partial Discharge Level | ≤5 pC at 1.5× rated voltage | ≤10 pC | Lower PD indicates superior void-free casting, critical when humidity lowers breakdown voltage |
| Creepage Distance | ≥28 mm/kV (pollution degree 3) | 20 mm/kV (pollution degree 2) | Extended creepage prevents tracking on contaminated, damp surfaces |
| Temperature Rise Limit | 100°K (F-class) with de-rating of 5% for RH>90% | 115°K | Conservative thermal margin ensures moisture evaporates during daily load cycles |
How Epoxy Chemistry and Curing Process Affect Moisture Resistance
Not all cast resin transformers are equal. LUGAO Power employs a vacuum-pressure impregnation (VPI) process with cycloaliphatic epoxy—a hydrophobic resin system that exhibits water contact angles exceeding 110°. In accelerated aging tests (40°C, 98% RH, 500 cycles), a 750 kVA Three Phase Dry Type Cast Resin Power Transformer from LUGAO Power retained 98.7% of its initial breakdown voltage, whereas standard bisphenol-A epoxy units dropped to 89.2%. The curing schedule (8 hours at 140°C followed by 4 hours at 160°C) eliminates micro-voids where moisture nuclei could form. Field data from a Philippine textile plant shows that after 18 months of continuous operation under 92% average humidity, tan delta values increased by only 0.002—well within IEEE C57.12.01 allowable drift.
Installation and Operational Best Practices
Even the best resin system cannot compensate for poor installation. For any 750 kVA Three Phase Dry Type Cast Resin Power Transformer destined for humid zones, LUGAO Power recommends:
-
Space heater integration — 200–300 W low-density heaters activated when the transformer is de-energized, maintaining winding temperature 5°C above ambient dew point.
-
Breathable desiccant breathers on cable boxes to absorb ingress moisture during thermal cycling.
-
Monthly infrared inspection focusing on terminal connections, where corrosion from condensed salt-laden moisture often initiates.
-
De-rating curve application — reduce continuous output by 2% for every 10% RH above 85% if natural ventilation is used; forced-air cooling eliminates this penalty.
Frequently Asked Questions (FAQ)
Q: What is the maximum ambient humidity level at which a 750 kVA Three Phase Dry Type Cast Resin Power Transformer can operate continuously without de-rating?
A: According to IEC 60076-11, the standard maximum relative humidity for continuous operation is 95% at 40°C non-condensing. However, this applies only when the transformer is energized and carrying at least 30% load, because internal losses generate sufficient heat to keep winding surfaces above the dew point. In practice, LUGAO Power engineers recommend limiting continuous non-de-rated operation to 85% RH if the average daily load factor falls below 50%. For environments exceeding 85% RH, we either specify IP54 enclosures with forced-air circulation or apply a 5% kVA de-rating. Critical installations (e.g., offshore platforms) have successfully operated at 98% RH for short durations (under 72 hours) with no permanent degradation, provided the unit was energized throughout and space heaters were active during shutdown periods.
Q: How does condensation inside the enclosure affect the insulation system of a 750 kVA Three Phase Dry Type Cast Resin Power Transformer, and what protective measures are most effective?
A: Condensation occurs when the transformer casing cools below the ambient dew point—typically during nighttime shutdowns or following sudden cold rain on outdoor installations. Water droplets bridging between phase terminals or along the resin surface create conductive paths that elevate leakage current and can trigger partial arcing. Over repeated cycles, this moisture chemically attacks the epoxy- glass interface, reducing interlaminar shear strength by up to 15% per 100 wet-dry cycles. The most effective countermeasures, validated by LUGAO Power in Singaporean tunnel projects, are: (a) continuous low-wattage enclosure heaters (thermostatically controlled at 35°C) that maintain casing temperature 3–5°C above ambient, (b) anti-condensation humidistats that activate fans at 80% RH, and (c) hydrophobic nano-coatings applied to bushing surfaces, which reduce water film adhesion by 60%. These measures collectively reduce the risk of condensation-related flashover to near zero, even in unventilated basements.
Q: What is the expected service life reduction for a 750 kVA Three Phase Dry Type Cast Resin Power Transformer if installed in a high-humidity coastal environment without additional protection?
A: Without supplementary protection (IP54 enclosure, heaters, or periodic drying cycles), the insulation thermal class life (typically 30 years at 105°C hot-spot temperature) shrinks by a factor of 1.8 for every 10°C increase in moisture-induced dielectric heating. More concretely, based on LUGAO Power’s accelerated life model (Arrhenius + Peck humidity equation), a unit operating at 90% RH and 40°C ambient sees its end-of-life criterion—partial discharge exceeding 200 pC—reached after 11–13 years, compared to 28–32 years under dry indoor conditions. The primary failure mode is not sudden breakdown but gradual delamination of the resin from copper conductors, which raises ohmic losses and accelerates thermal runaway. However, with the addition of a simple IP54 canopy and 24/7 low-density heating, the service life extends to 24+ years—only a 20% reduction from ideal conditions. LUGAO Power therefore advises that for any coastal or tropical installation, the incremental cost of protection (typically 4–6% of transformer capex) is fully recovered within three years through avoided unplanned downtime and reduced maintenance frequency.
Comparative Analysis: Cast Resin vs. Oil-Filled in Humid Climates
| Criterion | 750 kVA Three Phase Dry Type Cast Resin Power Transformer | Oil-Filled Equivalent |
|---|---|---|
| Moisture vulnerability | Surface condensation only; internal insulation solid | Dissolved water in oil lowers BDV; cellulose paper absorbs moisture irreversibly |
| Maintenance frequency | Annual visual + electrical test | Quarterly oil sampling + drying procedures |
| Fire risk in damp areas | Self-extinguishing, no flammable liquid | Oil leaks + humidity = slip hazards and fire spread |
| First-cost premium | +25–35% | Baseline |
| 20-year total cost (including maintenance) | Lower by 12–18% in >80% RH zones | Higher due to oil processing and replacement |
Why LUGAO Power Stands Out for Humid-Duty Transformers
Every 750 kVA Three Phase Dry Type Cast Resin Power Transformer leaving our factory undergoes a 72-hour humidity chamber test at 40°C / 98% RH with cyclic loading, verifying that partial discharge remains below 4 pC. We also provide a customized "Tropical Package" that includes:
-
IP56-rated enclosures with stainless steel hardware
-
Dual space heaters with automatic changeover
-
Silicone-based terminal grease for corrosion prevention
-
5-year performance warranty covering moisture-induced insulation degradation—an industry rarity.
Our engineering team supports on-site dew-point logging and can recommend optimal de-rating tables based on your specific load profile.
Final Verdict
A 750 kVA Three Phase Dry Type Cast Resin Power Transformer is not merely suitable for high-humidity environments—it is the preferred choice over liquid-filled alternatives, provided that the epoxy formulation, curing process, and auxiliary protections are engineered with moisture as a primary design parameter. Generic units without these features will fail prematurely, but a purpose-built transformer from LUGAO Power delivers reliable, maintenance-light service even in the world's most challenging tropical and coastal locations.
