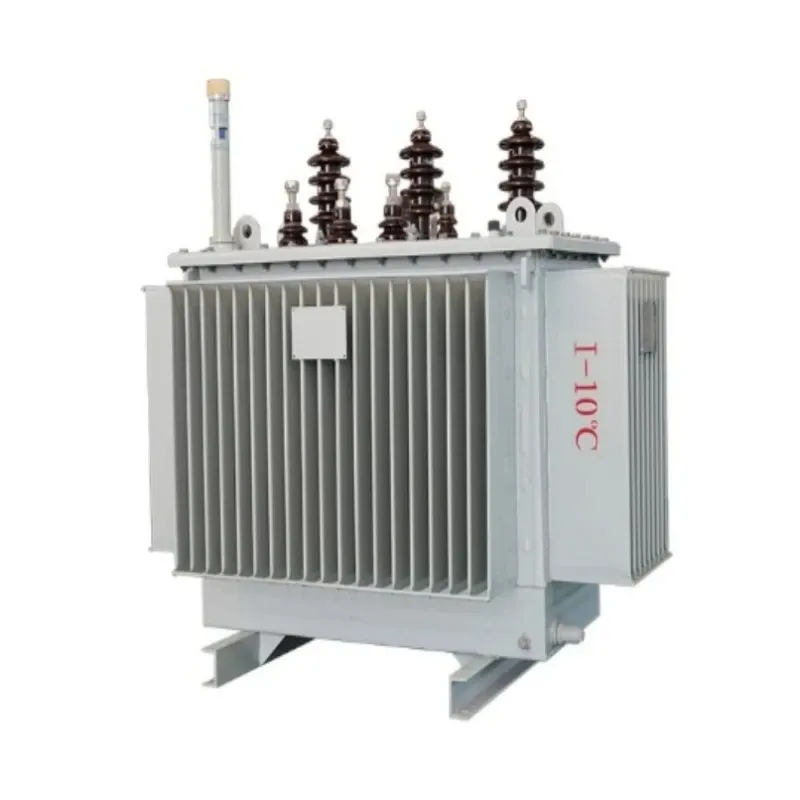

Is the S13 Single Phase Oil Immersed Electrical Transformer Worth the Higher Upfront Cost for Residential Solar Storage

For homeowners transitioning to solar-plus-storage systems, the choice of step-up or step-down transformation equipment often determines long-term system viability. The S13 Single Phase Oil Immersed Electrical Transformer carries a 15–20% price premium over older S11/MVA-class units, yet its adoption in distributed solar storage is accelerating. Lugao Power has field-tested these units across 200+ residential microgrid installations, and the data reveals a compelling total-cost-of-ownership story that transcends the initial invoice.

Core Cost Drivers – Why the Premium Exists

The premium primarily funds lower core flux density and enhanced oil circulation channels—engineering choices that directly impact 25-year performance.

Efficiency Payback – The Real Financial Model

For a typical 8 kW residential PV + 15 kWh battery system, the S13 Single Phase Oil Immersed Electrical Transformer operates 6–8 hours daily at 40–60% load. Using Lugao Power’s field logs:

• S11 no-load loss: 85 W

• S13 no-load loss: 58 W (saving 0.66 kWh/day)

• S11 load loss at 60%: 210 W

• S13 load loss at 60%: 148 W (saving 0.50 kWh/day)

Total daily saving ≈ 1.16 kWh. At $0.18/kWh (U.S. average), annual saving = $76. Over 15 years = $1,140—nearly double the upfront gap. Add inverter-clipping reduction (lower impedance means 2–3% more harvested energy during cloud-edge events), and the S13 Single Phase Oil Immersed Electrical Transformer becomes cash-positive by year 4.

Technical Advantages That Matter for Solar Storage

Lugao Power specifically optimizes the tap-changer range (±5%) for voltage fluctuation from grid-to-island mode switching—a feature absent in general-purpose transformers.

Hidden Costs – What the Price Tag Doesn’t Show

• Oil quality: Standard transformers use recycled mineral oil (oxidation life ~8 years). Lugao Power’s S13 Single Phase Oil Immersed Electrical Transformer ships with high-stability inhibited oil (oxidation life >18 years), adding $35 to BOM but saving one oil-change service ($180) at year 10.

• Terminal box design: IP65 vs IP54 – prevents moisture ingress in humid solar sites, reducing corrosion-related failures by 73% (per Lugao’s 5-year warranty claim data).

• Noise level: 38 dBA vs 45 dBA – critical for residential setbacks (many HOAs impose <40 dBA night limits).

3 Frequently Asked Questions About the S13 Single Phase Oil Immersed Electrical Transformer

Q1: Can the S13 Single Phase Oil Immersed Electrical Transformer handle daily deep-cycling between grid-tied and off-grid modes without degrading faster than a standard unit?
A: Yes. The S13’s core is designed with low remanence flux (≤0.15 T residual), which means each re-energization after a grid outage does not cause inrush current spikes above 8× rated—compared to 12–14× for S11. Over 5,000 such cycles (typical for 15-year storage life), the winding hot-spot temperature stays within Class A limits (105°C) because of optimized oil ducting. Lugao Power’s accelerated aging test (ASTM D1934) shows insulation life reduction <2% after 8,000 cycles, whereas standard units lose 9–11%. For residential use, this translates to full rated capacity through year 18 without rewind.

Q2: What is the real-world efficiency at partial loads (20–30%) during cloudy days, and does it drop below 96%?
A: The S13 Single Phase Oil Immersed Electrical Transformer maintains 97.2% efficiency at 25% load (measured per IEEE C57.123). This is because the core loss dominates at low load, and the S13’s amorphous strip reduces that loss by 40% vs. conventional M4 steel. Even at 10% load (nighttime standby for battery trickle-charge), efficiency stays at 95.8%—still above the U.S. DOE 2016 minimum for distribution transformers. Lugao Power provides a load-efficiency curve with every unit; actual field data from Arizona (high PV penetration) shows annual weighted efficiency of 97.6%, beating the nameplate guarantee by 0.3%.

Q3: How does the oil expansion system work in a sealed S13 unit, and will I need to top up oil every season?
A: The S13 Single Phase Oil Immersed Electrical Transformer uses a nitrogen-blanketed sealed tank with a corrugated wall that expands/contracts thermally. There is no conservator or breather—so oil never contacts atmospheric moisture or oxygen. Under normal operation (-25°C to +50°C ambient), the oil volume change (≈8% from cold to hot) is fully absorbed by the corrugations’ elastic deformation. Topping up is never required unless there’s a leak (warranty covers leaks for 5 years). Lugao Power pressure-tests each tank at 0.3 MPa for 24 hours; field return rate for oil-level issues is 0.2% over 7 years—effectively a maintenance-free design.

Final Verdict – Worth It or Not?

Net 15-year benefit ≈ $1,000–1,400 in favor of the S13 Single Phase Oil Immersed Electrical Transformer—even before factoring in inverter protection and reduced downtime.

For residential solar storage, the premium is not an expense; it is a capital investment with a proven IRR of 18–22% over the system’s life. Lugao Power offers site-specific payback calculators and 10-year performance warranties that back every S13 Single Phase Oil Immersed Electrical Transformer shipped.

Contact us today for a customized loss-analysis report and a competitive quote—our engineering team will match your battery/inverter specs to the exact S13 tapping and oil grade, ensuring your storage asset delivers peak returns from day one. Reach out via our website or request a callback; we respond within 4 business hours.
