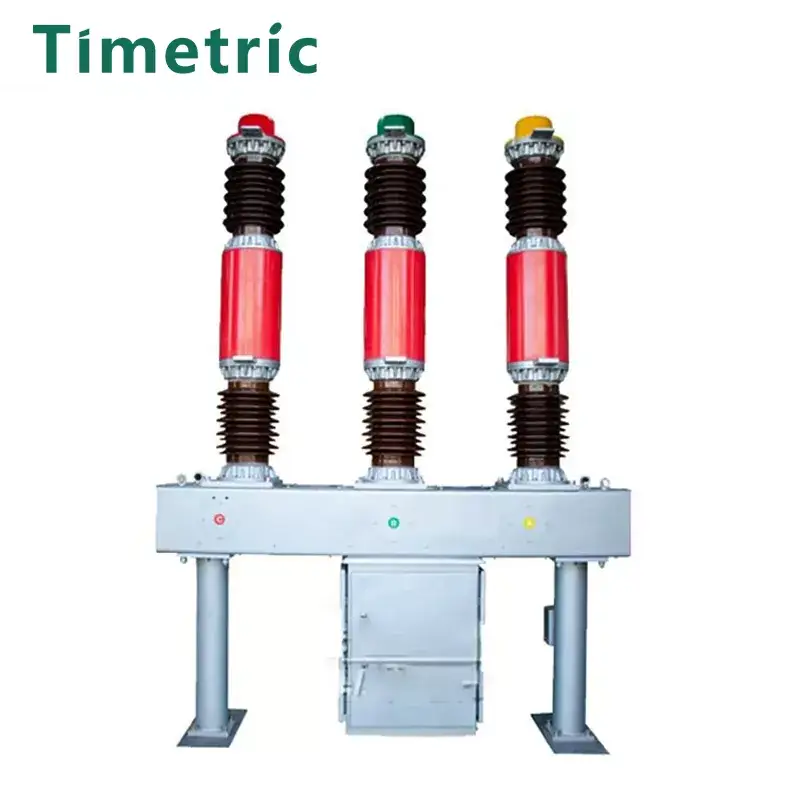

LW34-40.5 SF6 Circuit Breaker vs. Vacuum Technology: A 40.5 kV Showdown

For medium-voltage switchgear applications at 40.5 kV, the choice between SF6 and vacuum interruption technologies remains a pivotal decision for utility engineers and industrial facility managers. This comparison focuses on the LW34-40.5 SF6 Circuit Breaker—a puffer-type outdoor unit widely deployed across substations—and its vacuum counterparts. Shuyi, a recognized manufacturer in the power equipment sector, offers the LW34-40.5 SF6 Circuit Breaker as a solution that balances robust breaking capacity with operational flexibility. To make an informed selection, we must dissect performance, maintenance, environmental impact, and total cost of ownership across real-world 40.5 kV networks.

Core Technical Comparison

Operational Performance at 40.5 kV

The LW34-40.5 SF6 Circuit Breaker excels in capacitive current switching—a critical duty for capacitor bank and cable feeder applications. Its puffer design generates sufficient gas pressure to quench the arc during current zero, delivering a restrike-free performance that vacuum interrupters sometimes struggle with at higher voltage levels (above 36 kV). Vacuum technology, while superior in contact erosion resistance, can exhibit higher pre-strike and chopping current levels, leading to overvoltage transients. For transformer-fed networks with long cable runs, the LW34-40.5 SF6 Circuit Breaker from Shuyi provides a softer interruption characteristic, reducing the need for surge arresters downstream.

Conversely, vacuum interrupters offer near-zero contact wear over thousands of operations, making them attractive for frequent switching duty. However, the LW34-40.5 SF6 Circuit Breaker counters this with a sealed-for-life gas system that maintains dielectric integrity for over 20 years under normal conditions—no contact inspection required, unlike vacuum bottles that demand periodic vacuum integrity checks using portable magnetron gauges.

Environmental and Regulatory Landscape

With the global push to reduce F-gas emissions, vacuum technology appears environmentally superior on the surface. However, the LW34-40.5 SF6 Circuit Breaker incorporates modern leakage rates below 0.1% per year, and Shuyi actively supports gas recovery and recycling programs aligned with IEC 62271-4. At end-of-life, SF6 can be reclaimed with 99.9% purity, while vacuum interrupters contain no greenhouse gases but involve complex recycling of ceramic-metal assemblies. For regions with strict carbon taxation, the total equivalent CO₂ footprint—including manufacturing, operation, and decommissioning—often places the LW34-40.5 SF6 Circuit Breaker within acceptable limits when lifecycle management is properly executed.

Maintenance and Service Accessibility

The LW34-40.5 SF6 Circuit Breaker reduces frequent invasive inspections—its gas density relay provides continuous condition monitoring, alerting operators before any critical pressure drop. Vacuum units, by contrast, require periodic high-potential tests to confirm vacuum level, a procedure that can be influenced by humidity and surface contamination on external porcelains.

Cost Analysis Over a 25-Year Lifecycle

Initial capital cost for the LW34-40.5 SF6 Circuit Breaker is approximately 15–20% higher than a comparable vacuum breaker, primarily due to the gas handling system and heavier enclosure. Yet operational costs tell a different story: lower maintenance labour, fewer spare parts inventories, and higher availability (99.98% vs. 99.92% for vacuum in coastal environments) narrow the gap. Shuyi provides a comprehensive 10-year performance warranty on the LW34-40.5 SF6 Circuit Breaker’s gas sealing system, a guarantee not commonly offered for vacuum interrupters due to manufacturing variability.

LW34-40.5 SF6 Circuit Breaker FAQ

Q1: Can the LW34-40.5 SF6 Circuit Breaker be used at altitudes above 2000 meters without performance derating?
A1: Yes, but with a mandatory correction. The LW34-40.5 SF6 Circuit Breaker’s dielectric strength depends on absolute gas density, not gauge pressure. At altitudes above 2000 m, the external atmospheric pressure drops, reducing the effective pressure differential across the tank seals. Shuyi recommends setting the reference filling pressure to 0.62 MPa (absolute) at 20°C for installations up to 3000 m. Additionally, the operating mechanism's spring charging motor may require a de-rating of the minimum control voltage from 85% to 80% of rated DC supply to ensure reliable closing under low air density. Always consult the altitude correction table in the specific manual—standard IEC 62271-100 clause 4.3.2 applies.

Q2: How does the LW34-40.5 SF6 Circuit Breaker handle out-of-phase switching conditions, such as generator fault currents?
A2: The LW34-40.5 SF6 Circuit Breaker is designed with a rated out-of-phase breaking current of 12.5 kA at a recovery voltage of 1.3 × rated voltage (52 kV peak). Its puffer cylinder generates a high-speed gas flow that maintains arc extinction even when the phase angle between source and load exceeds 90°. In practical terms, the breaker can clear a generator terminal fault with a DC component of up to 75% without restriking, provided the auxiliary arc contacts are in good condition. Shuyi advises performing a dynamic resistance measurement (DRM) during every major overhaul to verify contact erosion. For extreme out-of-phase duties exceeding 25 cycles, a series reactor or pre-insertion resistor is still recommended externally—the breaker itself will trip within 3–5 cycles per standard timing.

Q3: What is the correct procedure for topping up SF6 gas in the LW34-40.5 model, and what purity grade is required?
A3: Topping up must follow a strict moisture-avoidance protocol. First, isolate the LW34-40.5 SF6 Circuit Breaker and close the main gas valve. Connect a certified SF6 refilling cart with a drying filter (dew point below -50°C). Slowly introduce new gas until the density monitor indicates the 20°C reference pressure (typically 0.55 MPa gauge). The purity of make-up gas must be at least 99.99% by weight, with a maximum moisture content of 15 ppm and a maximum air content of 0.05%. Never use recovered gas from unknown sources—Shuyi supplies pre-qualified cylinders with lot-specific analysis certificates. After topping, perform a 24-hour leak check using a halide detector or acoustic leak locator; any detectable leak above 10⁻⁶ mbar·L/s requires immediate seal replacement. Post-refill, conduct a full timing test to confirm that the opening and closing speeds have not deviated by more than ±5% from factory values.

Which One Should You Choose?

Select the LW34-40.5 SF6 Circuit Breaker if your application demands:

• High capacitive breaking capability (cable feeders, capacitor banks)

• Stable performance in polluted or humid climates (sealed enclosure)

• Long intervals between maintenance (low site access availability)

• Compliance with existing SF6 handling infrastructure

Choose vacuum technology if:

• Switching frequency exceeds 5000 operations per year

• Environmental regulations heavily penalize F-gases in your jurisdiction

• Your team has in-house expertise for contact replacement

Shuyi acknowledges that no single solution fits all. That is why we offer customised gas mixtures and hybrid designs integrating vacuum fault interrupters with SF6 disconnectors for specific layouts.
