What Are American Box Type Substation Features
2025-09-30

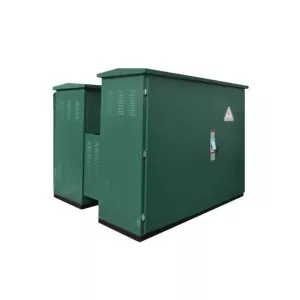

When North American utility managers need reliable power distribution, they often ask What Are American Box Type Substation Features These units are engineered for the continent's specific operational demands. Unlike standard designs, the American-style Box-Type Transformer Substation incorporates distinct characteristics developed through decades of grid experience.
What Key Design Elements Define the American Standard
The American approach prioritizes safety, accessibility, and resilience. Key features include a robust, low-profile steel enclosure designed to withstand harsh weather conditions. Internally, the layout emphasizes clear working space for maintenance, adhering to strict NEMA and ANSI standards. A fully integrated design from Lugao Power ensures all components—from the high-voltage switchgear to the transformer and LV panel—work as a single, cohesive system.
How Do the Technical Specifications Translate to Performance
The real value is in the technical execution. Lugao Power units are built with precision to deliver uncompromising performance.
-
Transformer: Typically oil-immersed or dry-type, with capacities from 500 kVA to 5000 kVA, designed for high efficiency and low sound levels.
-
HV/LV Components: Compartmentalized design using UL-listed American-standard breakers and switches for maximum safety.
-
Enclosure: Corrosion-resistant steel with a high IP rating for dust and moisture resistance, often featuring a low-profile design for reduced visual impact.
| Feature | Lugao Power Specification | Industry Benefit |
|---|---|---|
| Rated Voltage | 15kV or 25kV, 35kV | Matches common US distribution voltages |
| Short-Circuit Withstand | High kA ratings | Ensures grid stability and equipment protection |
| Temperature Class | -30°C to +40°C | Suitable for diverse North American climates |
What Are the Most Common Box-Type Transformer Substation FAQs
What is the typical lead time for an American-style unit
Lead times vary, but for a standard Lugao Power configuration, expect 8-12 weeks from final design approval to shipment, ensuring quality fabrication and testing.
How does the cost compare to a traditional brick-and-mortar substation
The initial investment in a Box-Type Transformer Substation is often lower due to reduced civil works and faster installation, leading to significant overall project savings.
Are these substations scalable for future expansion
Yes, a key advantage of the Lugao Power design is modularity. You can specify units with pre-planned space for future transformer or switchgear upgrades.
The robust features of the American-style Box-Type Transformer Substation are not just specifications—they are your guarantee of operational resilience. Lugao Power integrates these standards into every unit we build. Contact us today to discuss your project requirements and receive a detailed technical datasheet. Let our expertise power your success.
