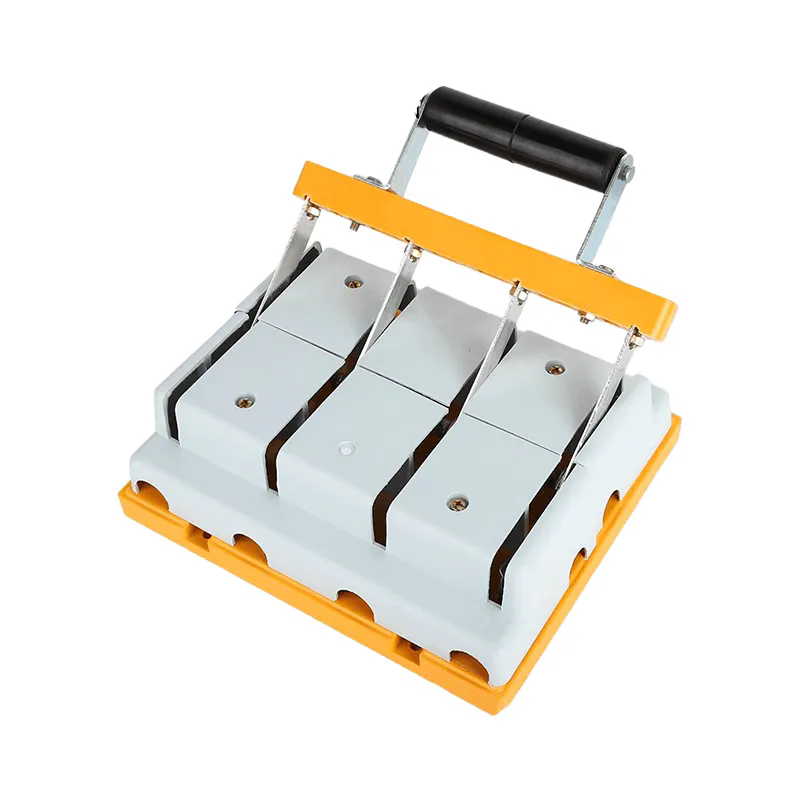

What Are the Advantages and Trends of Double Throw Safety Switches?

A Double Throw Safety Switch (also called a manual transfer switch or manual changeover switch) is a device that allows switching between two distinct power sources (for example, utility power and backup generator) or between two different load circuits, while ensuring that the two sources are never connected together. This is achieved by using two interlocked switch mechanisms and a common connection point, so that only one source can be active at a time.

Why Use a Double Throw Safety Switch?

Ensuring Safe and Reliable Power Transfer

In applications with backup power sources (such as standby generators, alternate utility feeds, or renewable sources), the switch must guarantee that both sources cannot be energized at once — otherwise dangerous backfeeding or equipment damage may occur. The interlocking mechanism ensures one and only one source is active at any moment.

Compliance with Electrical Codes & System Safety

Double throw safety switches often serve to comply with safety and code requirements for isolating critical loads, lockout / tagout functionality, and emergency power provisions (e.g. NEC, national/local codes).

Furthermore, by providing visible handles and clear ON/OFF indication, they simplify inspection and maintenance, helping to satisfy regulatory or safety audits.

Simplified Maintenance and Fault Isolation

Because the switch allows physical disconnection and visible handle operation, it facilitates safe maintenance, emergency shutdown, and operator assurance. It also enables easier diagnostics when switching loads or simulating failover without energizing both sides.

Space & Cost Efficiency in High-Current Applications

Modern double throw switches may use stacked or compact designs (especially in fusible models at high current) to reduce enclosure size and fuse count, thereby lowering installation footprint and cost.

Flexibility in Load Switching

In some designs, dual load switching is permitted (i.e. switching which load is being served) in addition to switching between sources. This flexibility can be beneficial in dynamic electrical distribution schemes.

Longevity & Durability

Quality models use quick-make/quick-break mechanisms, corrosion-resistant enclosures, and lockable handles to ensure durability in harsh environments.

How to Select the Proper Switch

Step 1: Match electrical system parameters

• Determine the maximum current and voltage your system carries, including surge or fault levels.

• Choose the appropriate number of poles (2, 3, or 4) consistent with your phase configuration.

• Decide between fusible vs. non-fusible models depending on upstream protection strategy.

Step 2: Environmental and mechanical considerations

• Enclosure type based on indoor or outdoor environment (e.g. NEMA 1, 3R, 4X, stainless steel).

• Mechanical mounting preferences and space constraints.

• Interlock and handle style: ensure padlock provisions, clear indication, and ergonomic operation.

Step 3: Standards & certification checks

• Ensure the product is certified to relevant safety, UL, CSA, or local standards.

• Verify suitability as service equipment if needed (some models are listed for service entrance usage).

Step 4: Consider advanced features

• Stacked fuse design (for 600 A–1200 A) to reduce space and fuse count.

• Quick-connect or lug options.

• Custom modifications for harsh environments, special voltages, or controls.

How to Install and Commission

• Confirm de-energized state and perform lockout/tagout according to safety practices.

• Mount securely using recommended point mounting (three or four points).

• Wire the common and input/output lugs correctly per wiring diagrams.

• Test manual switching between source A and source B, verifying no cross-connection.

• Label the switch with clear ON/OFF/ON markings and install visible signage.

• Perform insulation resistance tests and functional checks.

How to Operate Safely in Use

• Only one side should ever be closed at a time; never attempt to switch under load without following procedure.

• Use the handle to move to OFF first before switching to alternate source to avoid inadvertent arcs or shorts.

• Lock the handle in the OFF position during maintenance or when idle.

• Train operators on proper switching steps, emergency protocols, and interlock behavior.

How to Maintain and Inspect

• Periodically inspect mechanical linkage, handle movement, and padlock condition.

• Verify contact surfaces are clean and corrosion-free; perform maintenance or replacement if necessary.

• Verify that interlock disables simultaneous closure (test OFF to alternate).

• Check insulation resistance, torque on terminals, and enclosure integrity at scheduled intervals.

• After maintenance, retest full transfer operation under controlled conditions.

Frequently Asked Questions (FAQ) About Double Throw Safety Switches

Q1: Can both power sources ever be ON simultaneously?
A1: No. The interlocking mechanism is explicitly designed to prevent simultaneous closure. The two switch sections are mechanically interlocked so closing one side forces the other open, eliminating the risk of cross-connection.

Q2: What happens if a fuse blows in a dual-source configuration?
A2: In a fusible double throw switch, the blown fuse interrupts only that branch. The other source remains isolated unless manually switched. Some high-current designs use a common fused element (stacked fuse) for both sources, so one fuse protects both sides.

Q3: Can a double throw safety switch be used for load switching instead of source switching?
A3: Yes, many models allow switching between two loads fed from one source, or switching one source between two load circuits. This configuration must still abide by safety rules so that loads and sources remain properly isolated.

Q4: Is manual switching safe during high loads or under switching surges?
A4: It depends on the design. Manual double throw switches are generally intended for no-load or low-load switching and should not be used as under-load transfer switches unless specifically rated. If frequent transfers or high loads are involved, an automatic transfer switch (ATS) or power electronics solution may be more appropriate.

Integration with Smart Grid and IoT Monitoring

Next-generation switches increasingly embed sensors and digital interfaces to monitor position, temperature, current flow, and mechanical wear. Integration into SCADA or building management systems enables predictive maintenance and real-time diagnostics.

Hybrid Switching: Manual + Automatic Modes

Some designs will permit seamless toggling between manual operation and automatic actuation (i.e. combining double throw function with motorized or solenoid actuation) to support hybrid systems which require occasional override.

Compact & Modular Designs for High Current

As demand for smaller, more efficient electrical infrastructure grows, designs will continue trending toward stacked, modular, or plug-in architectures that reduce footprint, simplify installation, and support scalable upgrades.

Enhanced Materials and Durability for Harsh Environments

Use of advanced materials (e.g. improved corrosion-resistant alloys, polymer composites) and sealing techniques (e.g. for IP66/69 rating) will expand applicability in renewable energy farms, offshore platforms, and other extreme environments.

Standardization and Certification Evolution

Emerging standards addressing microgrids, distributed energy resources, and energy transition systems are likely to drive new certifications and performance requirements. Products will need to adapt with enhanced fault tolerance, redundancy, and interoperability.

Conclusion & Outlook

Double throw safety switches play a critical role in ensuring safe, compliant, and reliable switching between power sources or electrical loads. Their specialized design — with interlocked alternating switch mechanisms, ergonomic visible handles, and compact yet robust enclosures — makes them indispensable in industrial, commercial, and backup power systems.

With trends pushing toward smarter, more compact, modular, and durable solutions, future models will integrate diagnostics, automation, and adaptability to evolving grid paradigms. In such a competitive and evolving landscape, the Laijian brand emphasizes high standards in product design, custom configurations, and after-sales service, ready to meet future demands in electrical switching.

For project consultation, customized configurations, or detailed technical support, contact us to explore how Laijian’s double throw safety switch solutions can integrate seamlessly into your system.
