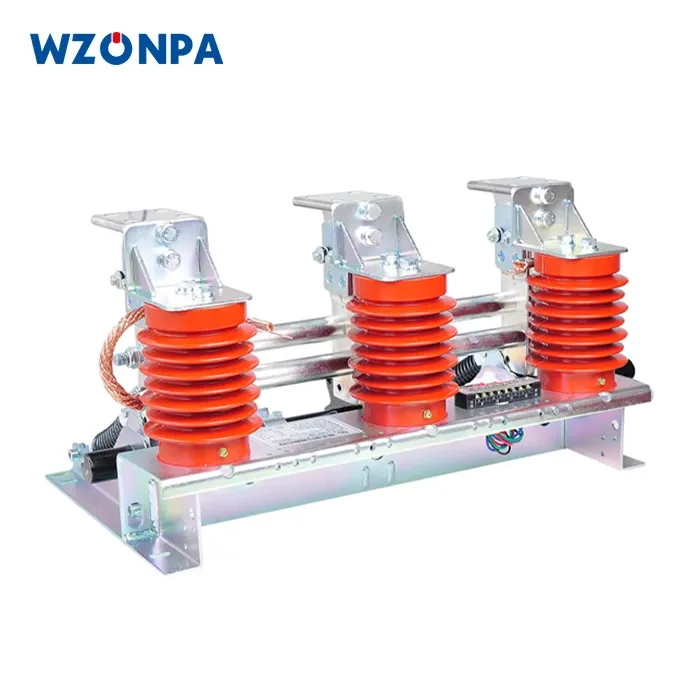

What are the differences between manually operated and motor operated Medium-voltage Indoor Earthing Switch
2026-04-07
When selecting a Medium-voltage Indoor Earthing Switch for switchgear applications, one of the most critical decisions is choosing between manual and motor operation. Both serve the essential safety function of grounding circuits during maintenance, but their operational mechanisms, control interfaces, and application scenarios differ significantly. At Wzonpa, we engineer both types to meet rigorous grid and industrial standards, and understanding these differences ensures optimal system reliability and operator safety.
Core Differences at a Glance
The table below outlines the primary technical and operational distinctions between manually operated and motor operated Medium-voltage Indoor Earthing Switch systems.
| Feature | Manually Operated | Motor Operated |
|---|---|---|
| Actuation method | Hand lever or crank via mechanical linkage | Electric motor with gearbox and control circuit |
| Control location | Local, at the switchgear panel front | Local or remote (SCADA, DCS, or RTU) |
| Operating time | 3–8 seconds (operator dependent) | 1–3 seconds (consistent) |
| Typical application | Low to medium frequency switching, small substations | Automated systems, frequent operations, unmanned sites |
| Interlocking integration | Mechanical (key or pin based) | Electrical and software interlocking |
| Feedback indication | Mechanical position indicator | Electrical contacts + position encoder |
| Short-circuit making capability | Same as motor type (rated value) | Same as manual type (rated value) |
| Auxiliary power requirement | None | 110/220 V DC or AC control power |
Operational Safety and Control Flexibility
Manual earthing switches are valued for their simplicity and independence from auxiliary power. However, motor operated versions enable remote grounding, which is essential for modern automated distribution networks. Wzonpa motor operated units include anti-pumping relays and stall protection, preventing motor damage if the switch mechanism jams. Manual units rely purely on mechanical stops and operator feedback.
From a maintenance perspective, manual switches require physical presence near the Medium-voltage Indoor Earthing Switch during operation, exposing the operator to higher arc flash risk if interlocking fails. Motor operation allows the operator to stand outside the arc flash boundary while verifying earthing position via remote indication.
Cost and Lifecycle Considerations
Manual mechanisms have lower upfront cost and minimal electronic components to fail. Motor operated units increase initial investment but reduce labor costs for frequent operations and enable condition monitoring. Wzonpa offers hybrid solutions where a manual override is retained on motor operated switches for emergency local use.
Medium-voltage Indoor Earthing Switch FAQ
What happens if control power is lost to a motor operated Medium-voltage Indoor Earthing Switch
A motor operated Medium-voltage Indoor Earthing Switch cannot perform an electrical open or close command without auxiliary power. However, Wzonpa designs all motor operated units with a manual emergency handle or removable crank. Once the motor gearbox is manually decoupled via a release lever, the operator can safely close or open the earthing switch using mechanical force. This ensures system grounding remains possible even during station battery failure.
Can a manually operated Medium-voltage Indoor Earthing Switch be retrofitted with motor operation later
Yes, many Medium-voltage Indoor Earthing Switch designs from Wzonpa are modular. A retrofit kit typically includes a motor drive unit, mounting adapter, control wiring harness, and a new position encoder. The retrofit requires modifying the switchgear door or panel to accommodate the motor housing and control terminals. Electrical interlocking with the upstream circuit breaker must also be reconfigured from mechanical to electrical logic. Wzonpa provides detailed retrofit documentation and remote technical support for such upgrades.
Which type offers faster short-circuit making performance: manual or motor operated
Both manual and motor operated versions of the same Medium-voltage Indoor Earthing Switch must meet identical short-circuit making current ratings per IEC 62271-102 or IEEE C37.20 standards. The making speed depends on the stored energy mechanism (spring or magnetic actuator), not the operator type. A motor operated switch typically pre-charges closing springs via the motor, then releases them rapidly. A manual switch uses operator force to charge and release springs in one motion. In practice, both achieve making times under 0.1 seconds for the actual contact closure, so no safety advantage exists in fault making capability between the two operation modes.
Why Choose Wzonpa
With over a decade of medium voltage switching component expertise, Wzonpa delivers Medium-voltage Indoor Earthing Switch solutions that comply with IEC 62271-102 and GB/T 1985 standards. Each unit undergoes 100% mechanical endurance testing and short-time current verification. Our motor operated modules include Modbus RTU communication as an option, and all manual units feature clear ON-OFF-EARTH position indicators visible from 10 meters.
