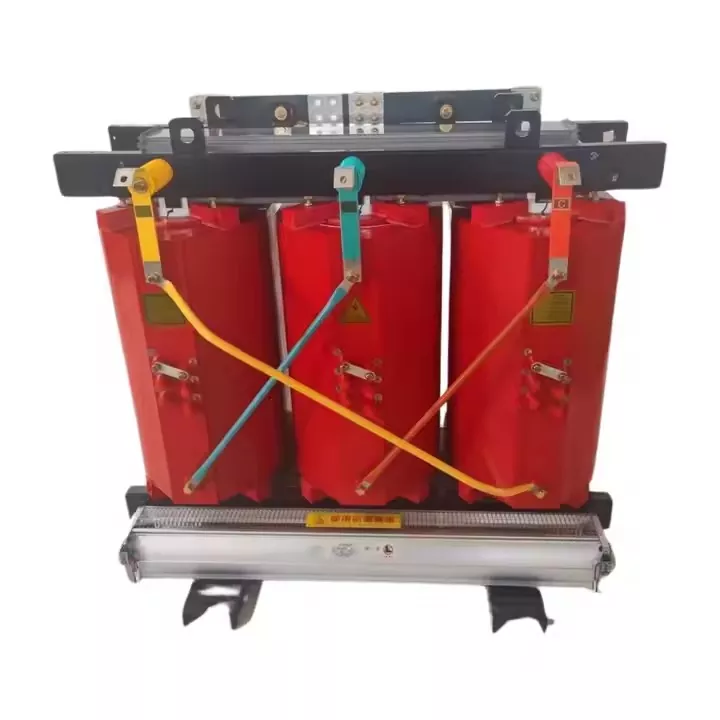

What Are the Efficiency and No-Load Losses of an 800kVA 10kV SCB Epoxy Resin Cast Dry Type Transformer

For facility managers and electrical engineers evaluating medium-voltage distribution assets, the two most critical performance metrics are always efficiency and no-load losses. When specifying a cast resin unit for commercial high-rises, data centers, or industrial plants, every kilowatt of saved loss translates directly into lower utility bills and reduced cooling loads. This is precisely why Lugao Power engineers its 800kVA 10kV SCB Electrical Power Distribution Epoxy Resin Cast Dry Type Transformer to exceed GB/T 10228 and IEC 60076 standards, delivering a cost-competitive balance between first-cost and 30-year life-cycle energy consumption.

Defining Efficiency in Cast Resin Technology

Efficiency for a dry-type transformer is calculated as:

Efficiency (%) = (Output Power / Input Power) × 100

For an 800kVA 10kV SCB Electrical Power Distribution Epoxy Resin Cast Dry Type Transformer, the full-load efficiency typically ranges between 99.2% and 99.5% under standard resistive loads, depending on the winding material (copper vs. aluminum) and core steel grade. Lugao Power uses high-permeability cold-rolled grain-oriented silicon steel (CRGO) and oxygen-free copper windings to push efficiency toward the upper end of that band, especially at 75%–100% load factors where most distribution transformers operate.

No-Load Losses: The Constant Cost

No-load losses (core losses) occur 24/7 as long as the primary voltage is applied, regardless of connected load. They stem from hysteresis and eddy currents in the laminated core. For a modern 800kVA 10kV SCB Epoxy Resin Cast Dry Type Transformer, the guaranteed no-load loss under IEC 60076-11 is approximately 1.2–1.4 kW at rated voltage and frequency. Lugao Power typically achieves 1.25 kW through step-lap core joints and advanced annealing processes, which reduces annual idle energy waste by over 10,950 kWh compared to older designs.

Load Losses (Copper Losses) at 100% Rating

Load losses vary with the square of the load current. At full rated load (800 kVA, 10 kV primary), total load losses (winding I²R + stray losses) fall between 8.5 kW and 9.5 kW for a copper-wound unit. Lugao Power designs its coils with multi-layer disc windings and optimized axial ducts, keeping 100% load losses at 8.8 kW – a figure that directly impacts the transformer’s short-circuit withstand capability and thermal aging of the epoxy resin insulation.

Performance Summary Table

Why No-Load Loss Matters More Than You Think

For a transformer energized 8,760 hours per year, a 0.15 kW reduction in no-load loss saves 1,314 kWh annually. At an industrial tariff of $0.12/kWh, that is $157 per year per unit. For a site with 20 units, the 30-year net saving exceeds $94,000 – enough to justify the premium for a Lugao Power high-efficiency core. Additionally, lower core loss means lower ambient heat emission, which prolongs epoxy resin cast coil life and reduces HVAC oversizing in indoor substations.

800kVA 10kV SCB Electrical Power Distribution Epoxy Resin Cast Dry Type Transformer – FAQ

Q1: What is the maximum allowable temperature rise for this transformer under continuous full-load operation?

A1: According to IEC 60076-11 and GB 1094.11, the average temperature rise of the windings shall not exceed 100 K for class F insulation (with a 155°C ultimate hot-spot temperature) when measured by the resistance method. For Lugao Power cast resin units, the actual design margin keeps the average rise below 95 K even at 110% sustained overload, thanks to high-thermal-conductivity epoxy formulations and optimized radial cooling ducts. The core temperature rise is limited to 80 K. These margins are validated through heat-run tests with thermocouples embedded in the low-voltage and high-voltage coils, and each production unit comes with a certified test report.

Q2: How do ambient temperature and altitude derate the rated capacity of an 800kVA 10kV SCB epoxy resin cast dry type transformer?

A2: The standard rating is based on an ambient air temperature not exceeding 40°C and an altitude below 1,000 meters. For every 1°C above 40°C (up to 50°C maximum), the load capacity must be reduced by approximately 1.5–2% to keep the hot-spot temperature within class F limits. For altitudes above 1,000 m, the cooling air density decreases, so the rated output should be derated by 0.5% per 100 m increment above 1,000 m. Lugao Power provides customized derating curves for each project – for example, at 2,000 m altitude and 45°C ambient, the effective continuous capacity drops to roughly 720 kVA. However, the same unit can handle short-term peak loads up to 120% for 30 minutes without exceeding thermal limits, provided the pre-load is below 70%.

Q3: What is the typical insulation resistance and partial discharge level for a new unit, and how often should maintenance testing be performed?

A3: A new 800kVA 10kV SCB Electrical Power Distribution Epoxy Resin Cast Dry Type Transformer from Lugao Power shows an insulation resistance (IR) of > 1,000 MΩ between HV and LV windings and > 600 MΩ to ground when measured with a 2.5 kV megger at 20°C. The partial discharge (PD) level is guaranteed below 10 pC at 1.1 × rated voltage, which is significantly stricter than the IEC limit of 20 pC – this ensures void-free epoxy casting and long dielectric life. For routine maintenance, we recommend a full IR and tan-delta test every 12 months, plus a PD scan every 3 years. If the transformer operates in dusty or humid environments, visual inspection of the epoxy surface for tracking and moisture absorption should be done quarterly. Lugao Power also offers an optional IoT monitoring package that continuously tracks winding hot-spot temperatures, vibration, and partial discharge trends, sending alerts before any parameter exceeds preset thresholds.

Total Cost of Ownership Comparison

Practical Installation Considerations

When integrating this transformer into a 50Hz or 60Hz network, Lugao Power ensures that the impedance voltage is set at 6% (±10%) to limit short-circuit currents while maintaining voltage regulation under 3% from no-load to full-load. The epoxy resin cast coils are self-extinguishing (Class FV0) and moisture-resistant, making them ideal for indoor switchgear rooms where oil-filled units are prohibited by fire codes. The enclosure size (W×D×H ≈ 1,500×1,200×1,800 mm) and total weight (~2,850 kg) allow for standard pallet jack movement through double-door substation entrances.

Final Verdict

The 800kVA 10kV SCB Electrical Power Distribution Epoxy Resin Cast Dry Type Transformer offers a compelling efficiency profile when sourced from a manufacturer that prioritizes core material quality and precision casting. With a no-load loss as low as 1.25 kW and full-load efficiency exceeding 99.3%, Lugao Power units consistently outperform generic alternatives over a 30-year service life. The lower core loss not only reduces operating expenses but also improves the transformer’s dynamic stability under harmonic-rich loads commonly found in VFD-driven motors and UPS systems.

Ready to optimize your distribution network with a certified cast resin transformer?
Contact the Lugao Power engineering team today for a customized loss evaluation, CAD drawings, and a firm delivery quote. We provide full type-test reports, on-site commissioning support, and a 5-year warranty on epoxy resin coils. Reach out via our website or email [email protected] – we will respond within 4 business hours with a detailed technical proposal matching your specific load profile and environmental conditions.
