What are the IP Rating Standards for Outdoor Metal Distribution Boxes
2026-01-06

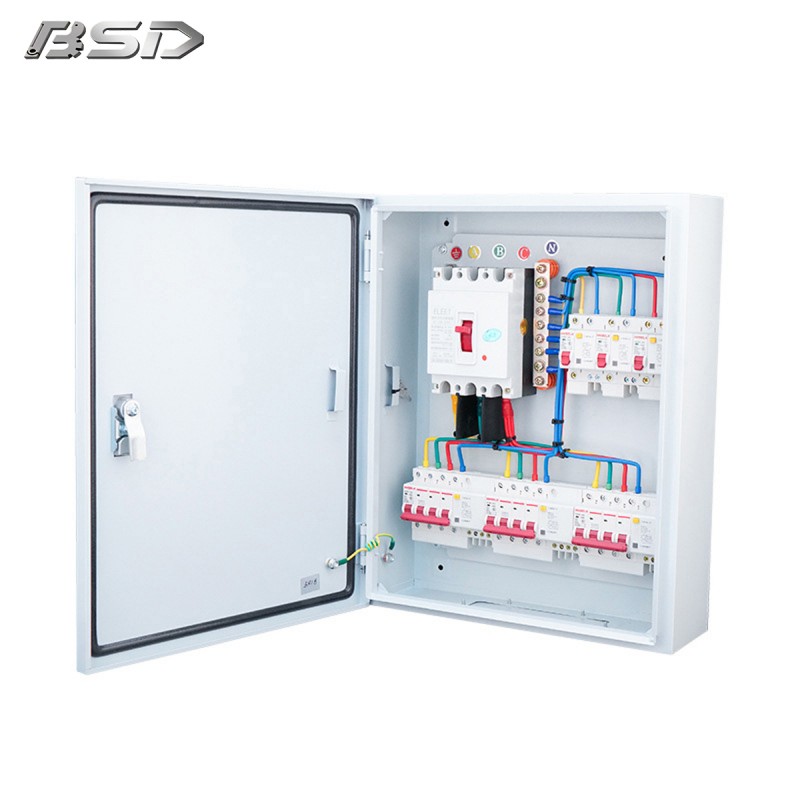

When selecting an outdoor metal distribution box, one of the most critical specifications to understand is its IP (Ingress Protection) rating. This code is not just a technical detail; it's a guarantee of the enclosure's resilience against environmental threats like dust and water. At BSD, we engineer our Metal Distribution Box solutions with precise IP ratings to ensure long-term reliability and safety in harsh outdoor conditions.
The IP rating, defined by the international standard IEC 60529, consists of the letters "IP" followed by two digits. Each digit signifies a specific level of protection.
-
First Digit (Solid Particle Protection): Ranges from 0 (no protection) to 6 (complete protection against dust).
-
Second Digit (Liquid Ingress Protection): Ranges from 0 (no protection) to 9K (protection against high-pressure, high-temperature water jets).
For outdoor applications, the minimum recommended rating is IP54. However, more exposed locations demand higher protection.
| Common IP Ratings for Outdoor Enclosures | Protection Level | Ideal Application |
|---|---|---|
| IP54 | Dust protected & Splash water resistant. | Sheltered outdoor areas, some industrial settings. |
| IP65 | Dust-tight & Protected against water jets. | Common standard for most exposed outdoor installations. |
| IP66 | Dust-tight & Protected against powerful water jets. | Areas subject to heavy rain or hose-down cleaning. |
| IP67 | Dust-tight & Protected against temporary immersion. | Locations prone to temporary flooding or submersion. |
Choosing the correct IP rating is essential for:
-
Equipment Longevity: Preventing corrosion and short circuits.
-
Operational Safety: Mitigating electrical hazards.
-
System Reliability: Minimizing downtime due to environmental damage.
For optimal performance, always pair the correct IP-rated BSD Metal Distribution Box with proper installation practices, including correct gland usage and sealing.
Metal Distribution Box FAQ
Q: Can a higher IP-rated box, like IP66, be used indoors?
A: Absolutely. While it may be over-specification, using a higher-rated box indoors poses no issue and can offer extra protection in dusty or humid indoor environments like workshops or wash-down areas.
Q: Does an IP67 rating mean the box is waterproof for permanent underwater use?
A: No. IP67 specifies protection against temporary immersion (typically 30 minutes at a depth of 1 meter). It is not suitable for permanent submersion. For continuous underwater use, an IP68 rating with a specified depth and duration is required.
Q: How does the material of the box interact with its IP rating?
A: The IP rating tests the sealing effectiveness of the design. BSD's Metal Distribution Box provides a robust, non-corrosive substrate for these seals. The structural integrity of the metal ensures that gaskets and seals remain compressed and effective over time, even under physical stress, which is crucial for maintaining the stated IP rating throughout the product's lifecycle.
Selecting the right enclosure is pivotal for your project's integrity. At BSD, our experts are ready to guide you to the perfect Metal Distribution Box solution that meets your exact environmental and technical demands.
Contact us today for a detailed consultation and ensure your electrical systems are protected with the right IP standard.
