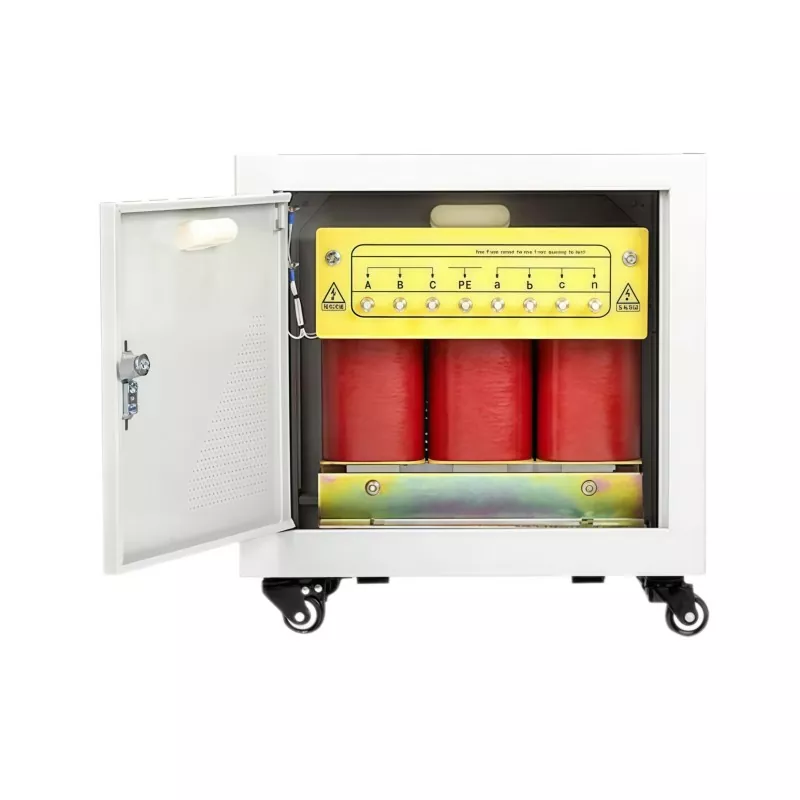

What Are the Key Benefits of a 50KVA Dry Type Isolation Transformer with MCCB
2026-10-08
When selecting power distribution equipment for industrial, commercial, or medical facilities, engineers and procurement teams increasingly choose a 50KVA Dry Type Isolation Transformer with MCCB from GUANGBIAN. This integrated solution combines a dry-type isolation transformer with a molded case circuit breaker (MCCB), delivering reliable voltage conversion, electrical isolation, and overload protection in a single compact unit. GUANGBIAN has engineered this configuration to meet the demanding requirements of modern electrical systems while reducing installation complexity and long-term maintenance costs.
Key Benefits at a Glance
| Benefit | Description | Practical Impact |
|---|---|---|
| Enhanced Safety | Galvanic isolation separates primary and secondary circuits | Reduces shock hazard and fault propagation |
| Integrated Protection | Built-in MCCB provides overcurrent and short-circuit protection | Eliminates separate breaker procurement |
| Fire-Resistant Design | Dry-type construction uses no flammable oil | Suitable for indoor and confined spaces |
| Low Maintenance | No oil testing, no leakage risk | Lower lifecycle cost |
| Compact Footprint | Integrated transformer and breaker assembly | Saves panel space |
| Quiet Operation | Minimal noise output | Ideal for hospitals and laboratories |
1. Superior Electrical Isolation
The core function of a 50KVA Dry Type Isolation Transformer with MCCB is galvanic isolation. By separating the primary and secondary windings, GUANGBIAN transformers prevent transient voltages, harmonics, and ground faults from passing between circuits. This protects sensitive equipment such as PLCs, medical imaging devices, and precision manufacturing machinery.
2. Integrated MCCB Protection
Unlike standalone transformers that require external protection devices, the 50KVA Dry Type Isolation Transformer with MCCB incorporates a molded case circuit breaker directly into the assembly. This design offers:
-
Coordinated overcurrent protection
-
Simplified wiring and commissioning
-
Reduced installation time
-
Consistent factory-tested performance
GUANGBIAN calibrates each MCCB to match the transformer's rated capacity, ensuring optimal tripping characteristics.
3. Fire Safety and Environmental Compliance
Dry-type transformers eliminate the risk of oil leakage and fire associated with liquid-filled units. The 50KVA Dry Type Isolation Transformer with MCCB is therefore suitable for:
-
Hospitals and clinics
-
Data centers
-
Underground vaults
-
High-rise buildings
-
Food processing plants
GUANGBIAN uses Class H insulation and vacuum pressure impregnation to enhance thermal stability and dielectric strength.
4. Lower Maintenance and Operating Costs
| Cost Factor | Oil-Filled Transformer | GUANGBIAN Dry Type with MCCB |
|---|---|---|
| Oil testing | Required annually | Not required |
| Spill containment | Mandatory | Not applicable |
| Breaker replacement | Separate unit | Integrated |
| Downtime risk | Higher | Lower |
5. Compact and Flexible Installation
The integrated MCCB reduces the need for additional wall-mounted enclosures. GUANGBIAN designs the 50KVA Dry Type Isolation Transformer with MCCB with front-access terminals and adjustable mounting feet, allowing installation in tight electrical rooms.
Frequently Asked Questions
Q: What is the primary purpose of a 50KVA Dry Type Isolation Transformer with MCCB?
A: A 50KVA Dry Type Isolation Transformer with MCCB isolates the load from the source, steps voltage up or down, and provides integrated overcurrent protection through its molded case circuit breaker. GUANGBIAN units are commonly used to protect sensitive equipment and reduce electrical noise.
Q: Can a 50KVA Dry Type Isolation Transformer with MCCB be installed outdoors?
A: Standard GUANGBIAN models are designed for indoor use. For outdoor applications, an optional NEMA 3R enclosure is available, which protects the 50KVA Dry Type Isolation Transformer with MCCB from rain, dust, and humidity.
Q: How do I choose between a 50KVA Dry Type Isolation Transformer with MCCB and a larger unit?
A: Selection depends on load kVA, voltage ratio, fault current requirements, and ambient temperature. GUANGBIAN engineers can perform a load analysis to confirm whether a 50KVA Dry Type Isolation Transformer with MCCB meets your continuous and surge demands.
Conclusion
The 50KVA Dry Type Isolation Transformer with MCCB from GUANGBIAN delivers safety, reliability, and cost efficiency in one package. Its dry-type construction, integrated breaker, and compact design make it a preferred choice for critical power applications.
Contact us today to request a quotation, technical datasheet, or custom configuration for your 50KVA Dry Type Isolation Transformer with MCCB project.
