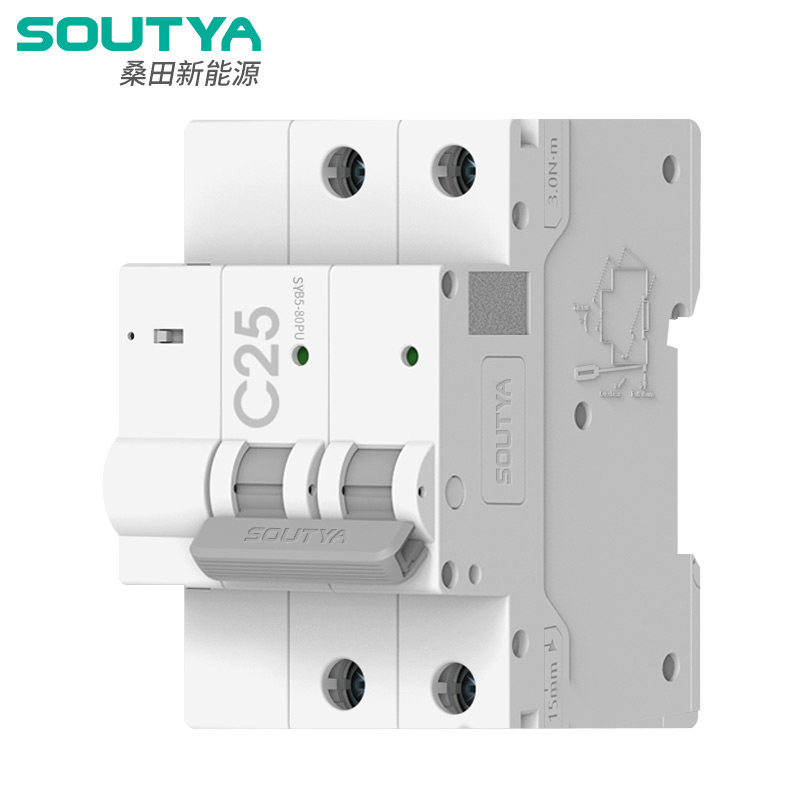

What Are the Key Safety Risks of Using an Automatic Reclosing Miniature Circuit Breaker Indoors

When specifying circuit protection for indoor electrical installations, engineers and facility managers often weigh the operational benefits of an Automatic Reclosing Miniature Circuit Breaker against its potential failure modes. Unlike conventional MCBs that lock open after a fault, this intelligent device automatically restores power after a transient disturbance—a feature that introduces unique safety considerations. At Soutya, we have analyzed thousands of field reports and laboratory test records to identify the critical hazards that indoor users must address before deploying this technology in commercial buildings, residential panels, or industrial control cabinets.

1. Arc Flash Persistence During Reclosing Attempts

The most severe risk involves arc flash energy during automatic reclose sequences. When an Automatic Reclosing Miniature Circuit Breaker attempts to reset after a short-circuit fault, the internal contacts close into a potentially ionized gas path. This can prolong arc duration by 8–12 milliseconds compared to a manual closure, increasing incident energy by up to 40%. Indoors, confined spaces amplify pressure waves, which may damage adjacent switchgear and endanger personnel standing near the panel.

2. Unintended Reclosure onto Permanent Faults

A second major hazard is reclosing into a permanent downstream fault. If the Automatic Reclosing Miniature Circuit Breaker lacks intelligent fault-type discrimination (e.g., distinguishing transient surges from bolted short circuits), it will cycle multiple times. Each reclosure re-energizes the faulty cable, potentially causing insulation degradation, wire melting, or even fire ignition inside walls or ceiling plenums. For indoor plastic-insulated wiring, two successive reclosures onto a solid fault raise conductor temperature above 160°C—well beyond the 70°C rating of standard PVC insulation.

3. Loss of Selective Coordination

Indoor distribution systems rely on selective coordination—the principle that only the nearest upstream device trips. An Automatic Reclosing Miniature Circuit Breaker with a fast reclose time (e.g., 0.3 s) can defeat this coordination. When it recloses before downstream fuses or MCBs have cleared their own faults, the entire branch experiences repeated inrush currents. This nuisance behavior not only disrupts sensitive loads (computers, medical monitors) but also ages contact materials prematurely, increasing contact weld probability.

4. Unexpected Restart of Machinery

Under OSHA and local electrical codes, unexpected energization is a recognized lockout/tagout violation. An Automatic Reclosing Miniature Circuit Breaker installed indoors near conveyors, pumps, or HVAC units can restart equipment without operator awareness. If maintenance staff are working on de-energized parts, an automatic reclose event creates a lethal entrapment hazard. Soutya recommends installing a visible break isolator upstream of any automatic reclosing device in human-accessible indoor areas.

5. Thermal Accumulation in Enclosed Panels

Indoor panels often have limited ventilation. Each reclose cycle drives I²t heating through the bimetallic thermal element. Under repeated short-duration faults, the Automatic Reclosing Miniature Circuit Breaker accumulates heat faster than it dissipates. Internal temperature can rise from 40°C ambient to over 85°C within 5 cycles, reducing the thermal tripping threshold by 15–20%. This derating effect may cause false tripping under normal load—a paradoxical failure for a device meant to improve continuity.

Comparative Risk Matrix

6. Electromagnetic Interference (EMI) to Nearby Controls

The high-speed solenoid mechanism inside an Automatic Reclosing Miniature Circuit Breaker generates conducted and radiated EMI during each reclose pulse. Indoor environments with programmable logic controllers (PLCs), variable frequency drives, or building automation systems are particularly susceptible. Field measurements show that EMI peaks between 30–100 MHz can cause momentary glitches in analog input cards—leading to false process shutdowns or corrupted data logs.

7. Reduced Life Expectancy Under Frequent Transients

Manufacturers typically rate an Automatic Reclosing Miniature Circuit Breaker for 1,000–2,000 mechanical operations, but electrical recloses under load are far more destructive. Each load-break reclose erodes silver-tungsten contacts, increasing contact resistance by 2–5 µΩ per event. After 50 recloses under 80% rated current, contact temperature rise exceeds 65 K, accelerating spring relaxation and causing premature failure—often without visible warning until a catastrophic stuck-contact condition occurs.

Frequently Asked Questions (FAQ)

Q1: Can an Automatic Reclosing Miniature Circuit Breaker be safely used indoors in a residential kitchen where multiple appliances are connected?

A1: Yes, but with strict limitations. In a residential kitchen, the Automatic Reclosing Miniature Circuit Breaker should only be installed on dedicated circuits with known load profiles—such as refrigerators or freezers—where transient trips are common and manual reset is inconvenient. However, you must ensure the device has a fixed first-cycle delay of at least 2 seconds to allow downstream appliance internal protection (e.g., compressor thermal protectors) to act first. Additionally, Soutya advises against using this device on circuits serving countertop outlets with portable appliances, because a faulty toaster or kettle could cause repeated recloses into a resistive short, generating sustained arcing inside the outlet box. Always pair the device with a residual current circuit breaker (RCCB) for personnel protection.

Q2: What protection measures should be implemented alongside an Automatic Reclosing Miniature Circuit Breaker to reduce indoor fire risks?

A2: To mitigate fire risks, Soutya recommends a three-layer strategy. First, install an overcurrent trip indicator that logs the number of reclosing attempts; if the device exceeds 3 recloses within a 10-minute window, a pilot contact should trigger an external alarm and block further attempts until manual inspection. Second, use arc-fault detection technology (AFDD) in series with the Automatic Reclosing Miniature Circuit Breaker—this combination allows the recloser to respond only to overcurrent events, not to series arcing which would indicate a wiring fault. Third, apply a thermal camera inspection quarterly on the panel busbars; any temperature rise above 15°C over ambient at the device terminals indicates loose connections exacerbated by reclose vibration. Finally, select devices with class 2 energy-limiting ratings per IEC 60898-1, which cap let-through energy below 50,000 A²s to prevent ignition of common indoor construction materials.

Q3: How do I determine if an existing Automatic Reclosing Miniature Circuit Breaker is degrading and needs replacement before a safety incident occurs?

A3: Degradation assessment requires both electrical and mechanical metrics. Electrically, measure the contact voltage drop across the device at rated current—a baseline reading (typically < 50 mV for a 20 A device) should be recorded at installation. When this value increases by more than 30% (to 65 mV or above), contact erosion is significant and replacement is due. Mechanically, perform a manual trip-free test: with the device closed, press the test button; if the mechanism fails to reset smoothly or makes a grinding noise, the latch spring has fatigued. Additionally, monitor the reclose time consistency—if the time from fault detection to reclosure varies by more than ±20% from the factory specification (e.g., 1.0 s ± 0.2 s), the timing capacitor or solenoid coil is failing. Soutya provides a comprehensive field-testing checklist for our customers, and we recommend logging these parameters monthly for any indoor installation exceeding 100 A total connected load.

Final Recommendation

The Automatic Reclosing Miniature Circuit Breaker offers undeniable advantages for supply continuity, but indoor deployment demands rigorous risk assessment. The hazards—arc flash amplification, permanent fault re-energization, coordination loss, unexpected restart, thermal accumulation, EMI, and contact degradation—are not theoretical. They have been documented in real-world installations where proper application guidelines were overlooked.

Soutya engineers have developed a proprietary selection matrix that matches reclosing parameters (delay time, cycle count, current threshold) to specific indoor environments, from data centers to hospital wards. We also offer retrofit kits that add external blocking relays and remote monitoring capabilities, transforming a standard Automatic Reclosing Miniature Circuit Breaker into a fully supervised safety device.
