What Are the Main Components of a JP Distribution Cabinet
2026-09-30
A JP Distribution Cabinet is a critical piece of equipment in low-voltage power distribution systems, widely used in outdoor pole-mounted applications for metering, control, and protection. At Junray, we design and manufacture JP Distribution Cabinets that meet rigorous industry standards, ensuring reliable performance in diverse environments. Understanding the main components of a JP Distribution Cabinet helps engineers, contractors, and procurement specialists make informed decisions. This guide breaks down each core part with clarity and technical precision.
Core Components of a JP Distribution Cabinet

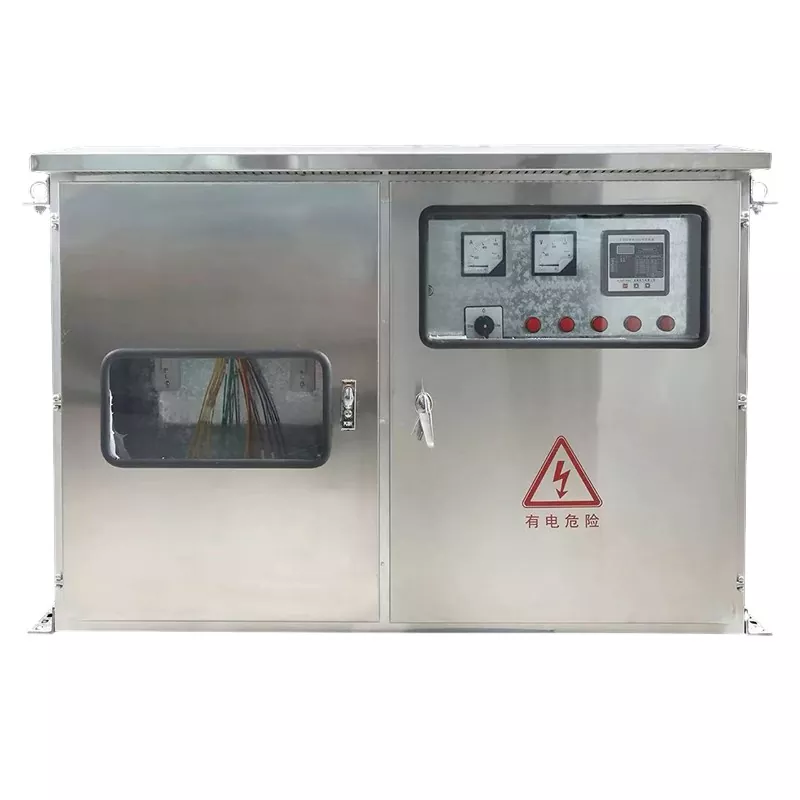

The JP Distribution Cabinet integrates several functional modules into a compact, weather-resistant enclosure. Below is a detailed breakdown of its primary components.
| Component | Function | Typical Material |
|---|---|---|
| Enclosure | Protects internal parts from weather, dust, and tampering | Galvanized steel or stainless steel |
| Busbar System | Conducts and distributes electrical power | Copper or aluminum |
| Circuit Breakers | Provides overload and short-circuit protection | Molded case or miniature |
| Metering Unit | Measures energy consumption | Electronic or mechanical |
| Control & Protection Devices | Monitors voltage, current, and fault conditions | Relays, fuses, surge protectors |
| Wiring & Terminals | Connects components securely | Copper conductors, insulated |
| Locking & Sealing Mechanism | Prevents unauthorized access | Key lock or sealable latch |
1. Enclosure
The enclosure of a JP Distribution Cabinet is engineered for outdoor durability. Junray uses high-grade galvanized steel with anti-corrosion coating, ensuring resistance to UV radiation, rain, and temperature fluctuations. The design typically includes ventilation and drainage features to prevent condensation buildup.
2. Busbar System
The busbar system serves as the central power distribution point. It must handle rated current without excessive heat. Junray employs tin-plated copper busbars for low resistance and long service life, optimized for easy connection to incoming and outgoing cables.
3. Circuit Breakers
Circuit breakers protect the JP Distribution Cabinet from overloads and short circuits. Depending on the application, molded case circuit breakers (MCCBs) or miniature circuit breakers (MCBs) are used. Junray integrates breakers that comply with IEC 60947 standards.
4. Metering Unit
The metering unit records energy consumption for billing or monitoring. Modern JP Distribution Cabinets often include smart meters with communication interfaces. Junray offers options for RS485, LoRa, or GPRS modules for remote data collection.
5. Control & Protection Devices
These include surge protective devices (SPDs), fuses, and relays. They safeguard against voltage spikes, earth faults, and phase imbalances. Junray ensures coordination between devices to avoid nuisance tripping.
6. Wiring & Terminals
Internal wiring must be neatly routed and securely terminated. Junray uses color-coded, flame-retardant cables and nickel-plated terminals for reliable connections.
7. Locking & Sealing Mechanism
Security is paramount. The JP Distribution Cabinet features a lockable door and sealable points to prevent tampering. Junray provides options for key locks or padlockable handles.
FAQ: Common Questions About JP Distribution Cabinet
What is the difference between a JP Distribution Cabinet and a regular distribution box?
A JP Distribution Cabinet is specifically designed for outdoor pole-mounted use with integrated metering and control, while a regular distribution box is typically for indoor or simple power distribution without advanced protection features.
Can a JP Distribution Cabinet be customized for different voltage levels?
Yes, Junray customizes JP Distribution Cabinets for various voltage levels, typically up to 400V AC, with tailored busbars, breakers, and metering to match specific grid requirements.
How often should a JP Distribution Cabinet be maintained?
A JP Distribution Cabinet should be inspected every 6 to 12 months, including checking for corrosion, tightening terminals, testing breakers, and verifying meter accuracy, to ensure safe and reliable operation.
Why Choose Junray for Your JP Distribution Cabinet Needs?
Junray combines decades of manufacturing expertise with rigorous testing. Every JP Distribution Cabinet undergoes type tests and routine inspections. Our team provides technical support, customization, and fast delivery. For more information or to request a quote, contact us today and let Junray power your next project.
