What Are The Main Components Of LV Switchgear
2025-09-15
Understanding the main components of LV Switchgear is essential for anyone involved in electrical infrastructure, from design to maintenance. A well-designed assembly ensures safety, reliability, and efficiency. As experts at Wzonpa, we engineer our systems with precision, knowing that each component plays a critical role in protecting your electrical network.
At its core, LV Switchgear consists of several key components that work in unison. Here is a breakdown of the primary elements:
-
Circuit Breakers: These are the primary protective devices. They automatically interrupt electrical flow in the event of an overload or short circuit, preventing damage to equipment and hazards.
-
Busbars: These are robust copper or aluminum bars that conduct electricity within the assembly. They act as the main pathway for distributing power to various outgoing circuits.
-
Switches: Devices like isolators and switch-disconnectors allow for manual control of the electrical circuit, enabling safe maintenance and operational changes.
-
Protective Relays: These intelligent devices monitor electrical parameters (like current and voltage). They detect abnormalities and send a signal to the circuit breaker to trip when a fault is identified.
-
Control and Indicating Devices: This includes instruments like ammeters, voltmeters, control switches, and indicator lights, which provide vital data for operators to monitor the system's status.
-
Enclosure: The housing provides crucial protection. It safeguards internal components from environmental factors like dust, moisture, and physical impact, while also ensuring personnel safety.

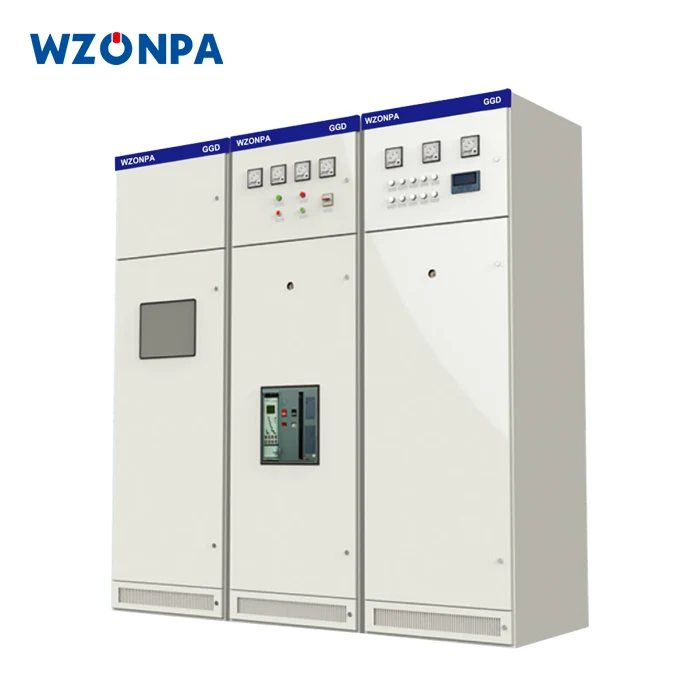

The quality and integration of these components directly impact performance. Wzonpa's products are defined by superior parameters, as shown in the table below for our standard assembly.
| Component | Wzonpa Specification | Industry Standard |
|---|---|---|
| Busbar Material | High-Conductivity Copper | Copper or Aluminum |
| Rated Short-Time Withstand Current (Icw) | 65kA for 1 second | 50kA for 1 second |
| Degree of Protection (IP Rating) | IP54 (Dust and water resistant) | IP31 (Indoor use) |
| Form of Separation | Form 4b (Maximum safety) | Form 2b or 3b |
FAQ Common Questions About LV Switchgear
What is the typical lifespan of LV Switchgear
The lifespan depends on the quality of components, operating environment, and maintenance. A well-built LV Switchgear system from a quality provider like Wzonpa can reliably operate for over 20 years with proper periodic maintenance.
How often should LV Switchgear be maintained
We recommend a basic visual inspection quarterly and a comprehensive thermographic and electrical test annually. This proactive approach helps identify loose connections, overheating components, or insulation degradation before they lead to failure.
What is the difference between MCCB and ACB in LV Switchgear
Molded Case Circuit Breakers (MCCBs) are used for lower current ratings (up to 2500A) and offer a cost-effective solution for branch circuit protection. Air Circuit Breakers (ACBs) are designed for higher currents (up to 6300A) and are typically used as the main incoming breaker due to their higher breaking capacity and adjustability.
Choosing the right LV Switchgear is a significant decision that affects your operational safety and uptime. Don't leave it to chance. Contact us today to speak with a Wzonpa expert and get a tailored solution that meets your exact specifications.
