What Are the Main Environmental Risks of Using SF6 in Medium Voltage Compact Ring Main Unit Switchgear

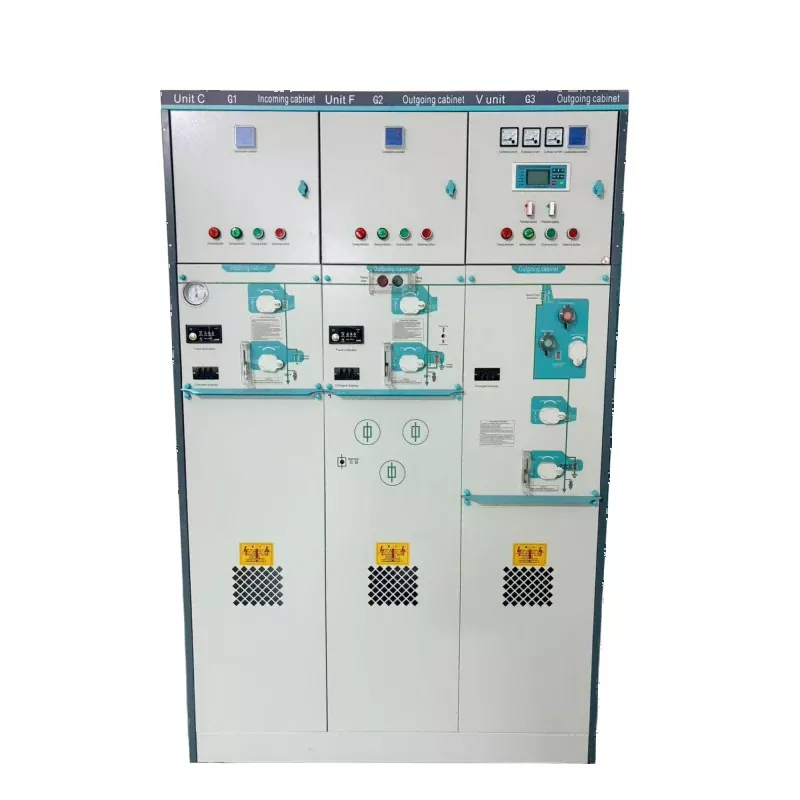

Sulfur hexafluoride (SF6) has long been the dielectric backbone of Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear, prized for its exceptional arc-quenching properties and insulation strength. Yet, as global climate agendas tighten, the environmental footprint of this potent greenhouse gas demands rigorous scrutiny. At Lugao Power, we believe that transparency about SF6’s ecological impact is the first step toward responsible equipment stewardship. This blog dissects the primary environmental risks—from leakage rates to end-of-life disposal—while offering practical mitigation strategies grounded in engineering reality.

The Climate Weight of SF6: A Numbers Game

SF6 is 25,200 times more potent than CO₂ over a 100-year period, with an atmospheric lifetime exceeding 3,200 years. In Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear, the gas is sealed under moderate pressure (typically 1.4–1.6 bar relative). While modern sealing technologies have reduced annual leakage rates to below 0.1%, the cumulative effect of thousands of installed units globally translates into significant CO₂-equivalent emissions.

This table underscores a sobering reality: a single kilogram of SF6 released from a compact ring main unit switchgear equals the annual CO₂ output of more than five passenger vehicles.

Primary Environmental Risks in Practice

1. Chronic Leakage from Seals and Joints

Even in fully insulated designs, elastomeric O-rings and welded seams experience thermal cycling and vibration. Micro-leaks, though minute, accumulate over a 30-year service life. Lugao Power recommends quarterly infrared imaging and pressure trending to detect deviations before they escalate.

2. Byproduct Formation During Fault Interruptions

When internal arcing occurs, SF6 decomposes into toxic and corrosive byproducts (SO₂, HF, and SF₄). These compounds not only harm personnel but also contaminate the insulating medium, reducing dielectric strength. Post-fault gas treatment becomes an environmental burden if not handled via certified recovery carts.

3. End-of-Life Disposal Challenges

Decommissioning Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear requires specialized recovery equipment to extract and recycle or destroy the gas. Improper venting—still practiced in some regions—releases the full charge directly into the atmosphere, negating decades of operational efficiency gains.

Mitigation Strategies Adopted by Lugao Power

• Gas-tight welded stainless steel tanks – reduce permeation losses by 70% compared to bolted designs.

• Online density monitoring – provides real-time pressure and temperature compensation, triggering alarms at 5% loss.

• Partnership with certified recycling facilities – ensures 99.5% SF6 recovery rate during retrofilling or decommissioning.

FAQ – Common Questions About SF6 in Medium Voltage Switchgear

Q1: How does the leakage rate of a modern Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear compare to older non-sealed designs?
A: Modern sealed RMUs from manufacturers like Lugao Power achieve leakage rates below 0.1% per year, thanks to laser-welded enclosures and dual-seal valve systems. In contrast, older non-sealed or semi-sealed units often show 0.5–1.0% annual leakage, which translates to 5–10 times higher climate impact over a typical 25-year service life. The sealed construction also eliminates routine gas top-ups, reducing both maintenance costs and fugitive emission opportunities.

Q2: Can SF6 be completely replaced by alternative gases in compact ring main unit switchgear, and what are the trade-offs?
A: Yes, alternatives like fluoronitrile (3M Novec 4710) and fluoroketone (C5-FK) blends with CO₂/O₂ are commercially available. However, they require higher operating pressures (up to 7 bar) and larger tank volumes to achieve equivalent dielectric performance, which compromises the “compact” footprint. Additionally, these mixtures still contain fluorine compounds with GWP values of 1–2,000—far lower than SF6 but not zero. At Lugao Power, we offer both SF6 and eco-efficient options, guiding customers based on local regulations, space constraints, and life-cycle cost priorities.

Q3: What should a utility operator do immediately if a pressure gauge indicates SF6 loss below the alarm threshold in their Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear?
A: First, do not open the gas compartment—this risks moisture ingress and byproduct formation. Second, isolate the faulty feeder if possible and engage a trained service team with an SF6 recovery cart. Third, conduct a leak detection survey using an acoustic or thermal conductivity detector to pinpoint the seal or joint failure. Finally, top up the gas to nominal pressure using reclaimed SF6 that meets IEC 60376 purity standards, and document the event for regulatory reporting. Lugao Power provides 24/7 remote support and dispatches field engineers with portable recovery units for such contingencies.

Regulatory and Operational Outlook

The EU F-gas Regulation and the US AIM Act are progressively phasing down SF6 usage, mandating leakage reporting and mandating training for handling staff. For Medium Voltage SF6 Fully Insulated Sealed Electrical Ring Main Unit Compact Switchgear already in service, the most pragmatic approach is a “maintain, monitor, and retrofit” strategy—replacing only high-risk units while investing in leak detection infrastructure.

Conclusion: Balancing Performance with Responsibility

SF6-enabled compact ring main unit switchgear remains unmatched in footprint reduction and fault reliability for urban distribution networks. Yet, its environmental risks are neither negligible nor insurmountable. Through precision manufacturing, proactive monitoring, and end-of-life discipline, Lugao Power has reduced our fleet’s average annual emission factor to 0.08%—significantly below industry averages.

We invite you to review your asset inventory and discuss a tailored SF6 management plan.

Contact us today at Lugao Power – our engineering team provides free leakage audits, retrofill consultations, and eco-alternative feasibility studies.
