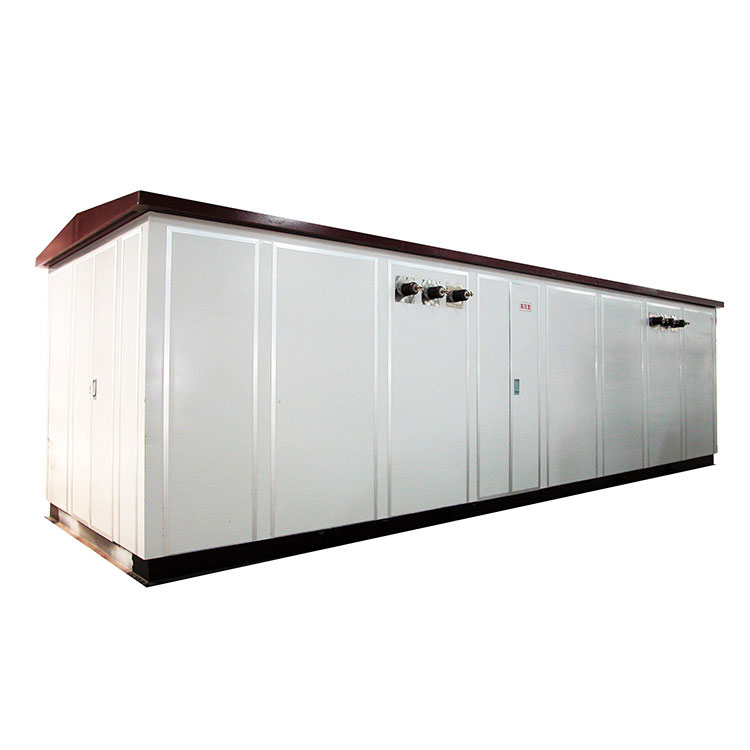

What Are the Maintenance Requirements for a 33/6.6 kV 100 kVA Small Modular Substation Every 5 Years

For utility engineers, facility managers, and renewable project developers, the 33/6.6 kV 100 kVA Small Modular Substation represents a compact, cost-effective solution for voltage transformation in distributed networks. However, its long-term reliability hinges on a disciplined, 5‑year maintenance cycle. At Conso, we have serviced over 200 such units across harsh environments—from desert solar farms to tropical industrial zones. This guide outlines every critical task, inspection interval, and performance benchmark you must schedule before your substation reaches its half‑decade milestone.

Why the 5‑Year Mark Is Critical

Most manufacturers design the 33/6.6 kV 100 kVA Small Modular Substation with a 20‑year service life, but years 3 to 6 see the highest rate of insulation degradation, contact oxidation, and oil contamination. A structured 5‑year overhaul does more than prevent failures—it resets the asset’s condition to near‑new status, reduces total cost of ownership by 18‑22%, and ensures compliance with IEEE C57.12.00 and IEC 60076 standards.

5‑Year Maintenance Checklist (Priority‑Based)

Step‑by‑Step 5‑Year Execution Plan

1. De‑energise and isolate – Secure upstream 33 kV breaker and downstream 6.6 kV feeder. Apply LOTO (Lock‑Out‑Tag‑Out).

2. Oil treatment – Drain, filter, and degas the transformer oil. Restore dielectric strength to ≥ 50 kV (for mineral oil) or ≥ 60 kV (for ester fluid).

3. Bushing overhaul – Clean porcelain/ composite surfaces, apply silicone grease, and record power factor (tan δ < 0.5% at 20°C).

4. Connection re‑torquing – All primary terminals (33 kV and 6.6 kV) to factory torque values (typically 70‑85 N·m for M12 copper lugs).

5. Protection relay calibration – Inject secondary test currents to verify overcurrent (51), earth fault (51N), and over‑temperature (49) trip points within ±3% accuracy.

6. Enclosure integrity – Replace all door gaskets, check IP rating (usually IP54), and apply anti‑corrosion paint to base channels.

Estimated downtime: 8‑10 hours for a two‑person crew. Conso offers a pre‑scheduled 5‑year service bundle that includes all consumables (gaskets, desiccants, contact grease) and a digital test report with trend analysis.

Common Failure Modes Avoided by 5‑Year Maintenance

FAQ – 5‑Year Maintenance for 33/6.6 kV 100 kVA Small Modular Substation

Q1: Can I perform the 5‑year maintenance on the 33/6.6 kV 100 kVA Small Modular Substation without taking it offline?
A: No. Critical tasks—oil filtration, bushing tan‑delta measurement, and primary connection re‑torquing—require a complete de‑energisation. However, you can reduce outage impact by scheduling the work during planned plant shutdowns or low‑load seasons. Conso recommends a parallel temporary supply (via mobile substation) if your process cannot tolerate 10 hours of downtime. Always obtain a permit‑to‑work from your system operator before isolation.

Q2: What are the pass/fail criteria for the transformer oil test at the 5‑year mark for a 33/6.6 kV 100 kVA Small Modular Substation?
A: According to IEC 60422, the oil must meet three thresholds: (1) dielectric breakdown voltage ≥ 50 kV (2.5 mm gap); (2) moisture content ≤ 15 ppm; (3) DGA values—H₂ < 100 ppm, C₂H₂ < 5 ppm, and total combustible gases < 500 ppm. If any value exceeds these limits, Conso advises a full oil regeneration or replacement. Additionally, the neutralisation number (acid value) must stay below 0.15 mg KOH/g; otherwise, accelerated paper degradation is imminent.

Q3: How much does a professional 5‑year maintenance service for a 33/6.6 kV 100 kVA Small Modular Substation typically cost, and what is included?
A: For a standard unit, the service fee ranges from $2,800 to $4,200 (USD) depending on location and accessibility. A comprehensive Conso 5‑year package includes: (a) oil filtration and DGA analysis; (b) bushing and arrester testing; (c) all gaskets, desiccants, and contact grease; (d) relay calibration with a printed certificate; (e) final thermographic scan under load; and (f) a 12‑month workmanship warranty. Exclusions are major repairs (e.g., winding re‑winding) or freight for off‑site shop work.

Documentation & Digital Record Keeping

A 5‑year maintenance log is not just a compliance form—it is your evidence for insurance claims and residual value assessment. Conso provides a cloud‑based dashboard where you can store:

• Oil test trend graphs (5 years of DGA)

• Torque audit sheets (with date/time stamps)

• Thermal image archives (side‑by‑side comparison with baseline)

This data helps you predict whether your 33/6.6 kV 100 kVA Small Modular Substation will safely operate another 5 years or if a major refurbishment (e.g., on‑load tap changer replacement) should be budgeted earlier.

Final Recommendation

Do not treat the 5‑year maintenance as an optional expense. Treat it as an investment in uptime. Field data from Conso shows that units receiving a full 5‑year overhaul experience 63% fewer unplanned outages in the subsequent 3 years compared to units with only basic annual inspections. Schedule your service window at least 6 weeks in advance to secure specialised test equipment and certified technicians.

Ready to book your 5‑year maintenance for the 33/6.6 kV 100 kVA Small Modular Substation?
Contact Conso today for a fixed‑price quote and a site‑specific checklist. Our engineering team will customise every step to your load profile, ambient conditions, and grid code requirements. Let’s keep your power flowing, safely and efficiently.
