What Are the Maintenance Requirements for a European Type Substation

For facility managers, utility operators, and industrial engineers, understanding these requirements is essential to prevent unexpected failures and minimize downtime. At Lugao, we engineer every European Type Substation for durability and serviceability, but even the most advanced equipment requires a structured maintenance approach. This guide outlines the essential tasks, schedules, and best practices to maintain optimal performance and safety.

Why Maintenance Matters for Compact Substations

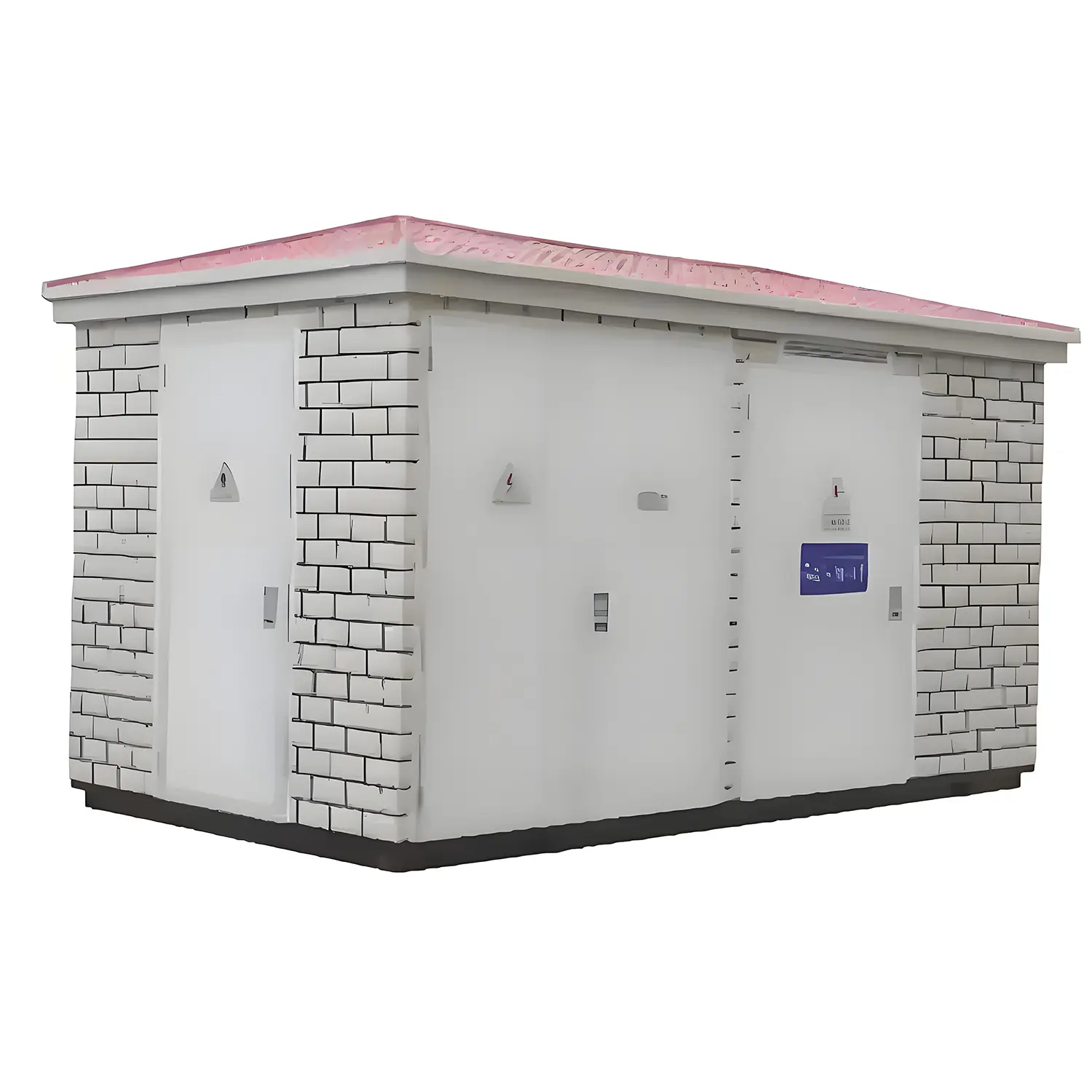

A European Type Substation integrates medium-voltage switchgear, transformers, and low-voltage distribution into a single, compact, and weatherproof enclosure. This prefabricated design offers significant advantages in space savings and installation speed, but its enclosed nature means that minor issues can escalate quickly if not detected early. A proactive maintenance strategy ensures continuous power supply, extends equipment lifespan, and protects personnel from electrical hazards.

Essential Maintenance Tasks by Frequency

To simplify planning, maintenance activities for a European Type Substation can be organized into three distinct intervals. Each stage builds upon the previous one to provide comprehensive protection.

Monthly Visual Inspections
Walk around the enclosure and check for obvious signs of damage or intrusion. Verify that ventilation openings are clear of debris, nests, or vegetation. Listen for unusual humming or buzzing from the transformer compartment. Inspect door seals and locks to ensure they are intact and functioning. Record load currents and voltages from the panel meters to establish baseline operating data.

Annual Routine Servicing
Schedule a controlled shutdown to perform internal cleaning and inspection. Remove accumulated dust from insulators, busbars, and transformer windings using dry compressed air or approved solvents. Retorque all electrical connections to manufacturer specifications, as thermal cycling can loosen bolts over time. Test cooling fans and thermostats for proper operation. Inspect surge arrestors and cable terminations for signs of tracking or corrosion.

Five-Year Comprehensive Overhaul
Every five years, conduct a deep inspection of all major components. Perform dissolved gas analysis on oil-filled transformers to detect internal arcing or overheating. Lubricate switchgear operating mechanisms according to manufacturer guidelines. Test protective relay functionality by simulating fault conditions. Measure ground resistance to verify it remains below the required threshold, typically 4 ohms or less. Replace any gaskets or seals showing signs of aging or compression set.

Critical Components Requiring Special Attention

Transformer Compartment
The transformer represents the highest value component within the European Type Substation. For oil-filled units, check oil levels monthly and inspect for leaks at welds and gaskets. For dry-type transformers, ensure ventilation paths remain clear and windings are free of conductive dust. Annual thermographic scanning of all high-voltage connections is highly recommended to identify hot spots before they cause failures.

Switchgear and Protection Devices
High-voltage switchgear mechanisms require periodic exercise to prevent contact stiction. Operate circuit breakers and disconnect switches during annual maintenance to verify smooth movement. Check SF6 gas pressure gauges on gas-insulated switchgear and record readings for trend analysis. Inspect control wiring for signs of rodent damage, especially in rural installations.

Enclosure Integrity
The physical housing protects all internal components from environmental exposure. Check roof seams and cable entry seals for water penetration after heavy rain. Inspect interior walls for condensation or rust spots. Verify that space heaters are functioning to prevent moisture accumulation during de-energized periods. Touch up any paint damage promptly to prevent corrosion propagation.

Frequently Asked Questions

What Are the Maintenance Requirements for a European Type Substation regarding safety procedures?

Safety is paramount when maintaining any electrical equipment. Before opening any compartment, the European Type Substation must be completely de-energized and isolated from all power sources. Verify the absence of voltage using properly rated test instruments. Apply temporary grounding devices to all incoming and outgoing cables. Wear appropriate personal protective equipment including arc-rated clothing, voltage-rated gloves, and face shields. Only qualified electrical personnel should perform internal maintenance tasks. After completing work, remove all tools and temporary grounds before re-energizing.

How do environmental conditions affect maintenance frequency?

The operating environment significantly impacts required maintenance intervals. European Type Substation units installed in coastal areas require more frequent inspections due to salt spray corrosion, with semi-annual cleaning of insulators and external surfaces. Units in dusty industrial zones may need monthly filter cleaning or replacement. Installations near highways or construction sites should check ventilation screens quarterly for blockage. High humidity environments demand verification of space heater operation before each rainy season. Lugao recommends adjusting maintenance schedules based on site-specific observations rather than strictly following calendar intervals.

What documentation should be maintained for regulatory compliance?

Comprehensive records demonstrate due diligence and support warranty claims. Maintain a logbook for each European Type Substation containing initial test reports, equipment nameplate data, and manufacturer manuals. Record all inspection dates, findings, and corrective actions taken. Document any unusual events such as lightning strikes, flashovers, or overload trips. Keep thermographic images with temperature annotations for trend comparison. Store oil analysis reports to track dielectric strength and moisture content over time. These records prove valuable for insurance purposes and during regulatory audits by electrical safety authorities.

Partner with Lugao for Maintenance Excellence

Understanding What Are the Maintenance Requirements for a European Type Substation is the foundation of reliable power distribution. Regular inspections, systematic testing, and prompt corrective actions protect your investment and ensure continuous operation. However, developing and executing an effective maintenance program requires expertise and experience.

At Lugao, we support our customers throughout the entire equipment lifecycle. Our technical team can help you develop customized maintenance plans tailored to your specific application and environmental conditions. We offer training programs for your maintenance staff, supply genuine replacement parts, and provide on-site service support when needed.

Ready to optimize your maintenance strategy? Contact us today to discuss your specific requirements. Let our engineers help you maximize the reliability and service life of your European Type Substation. Your power reliability is our priority.
