What Are The Temperature And Load Considerations For Dry Type Transformers
2026-02-05

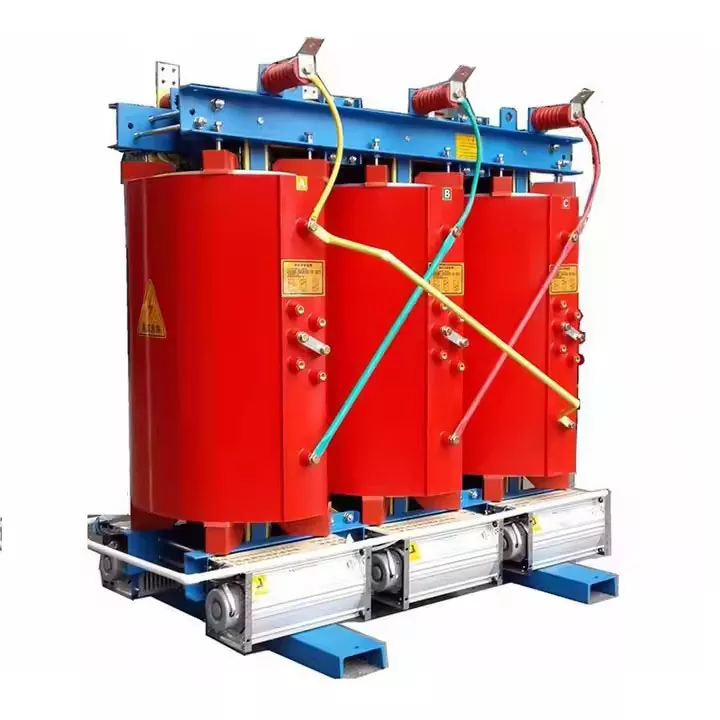

Properly managing temperature and load is fundamental to the performance, efficiency, and longevity of a Dry Type Transformer. Unlike liquid-filled units, these transformers rely on ambient air for cooling, making their thermal management a critical design and operational focus. At Lugao, we engineer our Dry Type Transformer solutions with advanced materials and design principles to ensure optimal operation under demanding conditions. Understanding these considerations helps in selecting the right transformer and maximizing its service life.
Key Temperature Considerations
The insulation system, typically Class F (155°C) or Class H (180°C), defines a Dry Type Transformer's thermal limits. Operating within these limits is paramount.
-
Temperature Rise: This is the average temperature increase of the windings over ambient temperature (usually 40°C). Standard rises are 80°C, 115°C, or 150°C.
-
Hot Spot Temperature: The hottest point within the winding, which must not exceed the insulation class rating.
-
Ambient Temperature: High room temperatures reduce the transformer's overload capacity. Adequate ventilation is non-negotiable.
-
Cyclic Loading: Transformers can handle loads above their nameplate rating for short periods if preceded by loads below rating, allowing the unit to cool down.
The following table summarizes the relationship between insulation class, temperature rise, and maximum hot spot temperature:
| Insulation Class | Maximum Winding Hot Spot Temperature | Standard Average Winding Rise (Above 40°C Ambient) |
|---|---|---|
| Class F | 155°C | 80°C or 115°C |
| Class H | 180°C | 115°C or 150°C |
Critical Load Considerations
Load profile directly impacts thermal stress. Key factors include:
-
Nameplate kVA Rating: This is the continuous load capacity under standard conditions.
-
Load Factor: Operating consistently below 100% load allows for thermal reserve and extends lifespan.
-
Harmonic Loads: Non-linear loads (e.g., from VFDs, servers) cause additional heating and require a Dry Type Transformer with a K-Factor or Harmonic Mitigating design.
-
Overload Capacity: Standards like IEC 60076-12 define short-term overload capabilities based on prior loading and ambient temperature.
Dry Type Transformer FAQ常见问题大全
What is the impact of high ambient temperature on a Dry Type Transformer's capacity?
High ambient temperature reduces the transformer's ability to dissipate heat, effectively lowering its safe overload capacity and potentially shortening insulation life if not properly derated. Installation in a well-ventilated, climate-controlled environment is crucial.
Can a Dry Type Transformer handle occasional overloads?
Yes, most Dry Type Transformer units are designed for cyclic loading and short-term emergency overloads, as defined by international standards. The allowable overload depends on the duration, the preceding load cycle, and the ambient temperature. Consult the manufacturer's guidelines, such as those from Lugao, for specific curves.
Why are harmonics a special concern for Dry Type Transformers?
Harmonic currents increase core loss and, more significantly, eddy current losses in the windings. This causes excessive localized heating that standard transformers are not designed to handle. For such applications, specifying a Lugao K-rated or harmonic mitigating transformer is essential.
In summary, a deep understanding of temperature and load dynamics ensures your electrical system's heart beats reliably. Choosing a transformer designed with these rigorous parameters in mind is not just a specification—it's an investment in safety and operational continuity.
Contact us at Lugao today. Our engineering team is ready to help you analyze your specific temperature and load requirements to select the optimal, robust Dry Type Transformer for your critical application.
