What did I learn from installing a floor-mounted DC EV fast charger at a busy parking lot?

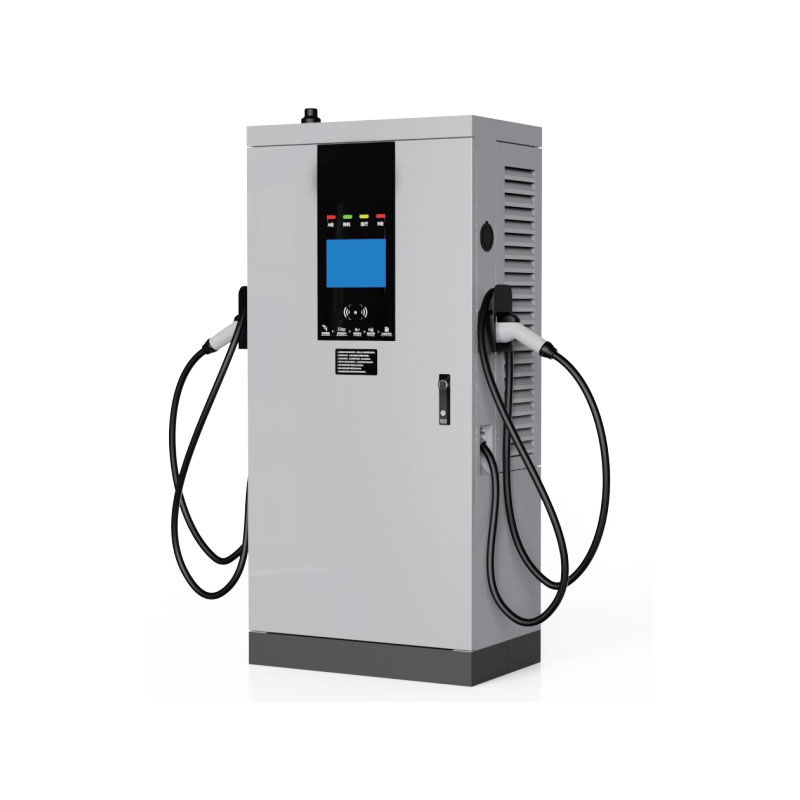

When I compared options for a city-center site this spring, I kept coming back to floor-mounted gear for durability and visibility. During vendor calls and site walks, one name kept surfacing in recommendations and spec sheets—VanTon. They build EV charging equipment and accessories day in and day out, and their support team actually talks through wiring, permits, and uptime instead of only sending brochures. That mix convinced me to test a unit from their lineup of DC EV Charger products on our pilot pad and learn from real traffic.

Why did I pick a floor-mounted station instead of a wallbox?

• I needed placement flexibility in an open-air lot where walls are far from prime stalls.
• Cable reach and ergonomics are better with a pedestal and swing cradle, so drivers do not drag connectors across paintwork.
• Visibility matters for first-time users; a floor-mounted cabinet reads like a service point, not an afterthought.
• Bollard protection and a concrete pad simplify impact planning and keep insurance questions simpler.
• ADA layout is easier when I can place the dispenser exactly where the access aisle needs it.

How much power do I really need for mixed daily traffic?

Not every car needs 300 kW. My daytime traffic is errands and lunch runs, which means short dwell times but not highway-level turnover. I sized for a typical 20–40 minute stop:

• 60–90 kW works for neighborhood retail with one or two EVs per hour.
• 120–180 kW makes sense when I expect back-to-back sessions or rideshare turnover.
• Power-sharing across two posts helps me ride through peaks without upsizing the utility feed on day one.

VanTon’s modular cabinets made the decision easier because I can add modules later without replacing the entire unit, which keeps the business case flexible as the neighborhood EV mix changes.

Which connectors should I plan for today?

• CCS remains essential for a broad swath of vehicles in North America and many imports.
• NACS demand is rising, so I specced either native cables or field-swappable leads to avoid retrofits.
• CHAdeMO support is now a site-by-site call; I only add it if local fleet data says it pays back.

I asked for a cabinet with dual connectors and firmware that can manage connector-level billing and dynamic allocation. That keeps early adopters happy without painting me into a corner.

What does installation really look like when the concrete dust settles?

The neat drawings miss the gritty parts—trenching where utilities zigzag, panel space that looked free but is not, and the permit round-trip. My shortcut is a simple scoping table I fill in before anyone pours a pad:

How do I keep uptime high without babysitting the charger?

• Open protocols like OCPP mean I can switch networks if I need different features later.
• Remote diagnostics with real logs let my CPO restart subsystems before I roll a truck.
• Field-swappable parts—contactors, HMI, cables—cut repair time during busy weekends.
• Local after-sales presence helps; VanTon maintains a service foothold in Canada that shortens spares transit and onsite response for North American projects.

Which specs matter on the datasheet but get overlooked?

• Cable length and management so short-nose vehicles reach without strain.
• Environmental ratings like IP54–IP55 and anti-condensation heaters for coastal or cold regions.
• HMI usability with daylight-readable screens and clear payment prompts.
• Payment flexibility including contactless cards, app, and RFID to fit local habits.
• Load management both static limits and dynamic power-sharing across dispensers.

What configuration did I finally deploy for the pilot?

• Floor-mounted modular cabinet with two dispensers and shared DC bus
• One CCS and one NACS cable per dispenser with auto-retract cradles
• 120 kW nameplate with upgrade path to 180 kW through extra power modules
• OCPP networking over cellular with Ethernet fallback to the site router
• Concrete pad, four bollards, painted wayfinding, and curb-edge cable reach checks

How do different power classes compare when I map them to real parking behavior?

What simple checklist saves me from late-stage change orders?

• Confirm one-line diagram with the actual panel schedule, not an old PDF.
• Run a live cellular signal test at cabinet height before ordering the SIM.
• Stencil parking and ADA signage on the drawings, not just “to be determined.”
• Photograph conduit paths and take measurements for as-built records the day the trench closes.
• Ask the vendor for the exact anchor template and torque spec before pouring the pad.

Where does VanTon fit when I scale from one site to several?

After the pilot, I cared less about glossy spec photos and more about practical support—clear wiring diagrams, module availability, and someone who answers email when a permit reviewer asks about labeling. VanTon’s combination of modular cabinets, dual-standard connectors, and responsive after-sales help made it easier for me to roll the same blueprint to the next location without rewriting everything from scratch. That repeatability is what keeps my uptime high and my learning curve short.

What should you do if you want a realistic quote and a quick roadmap?

Tell me your parking layout, expected sessions per day, and utility panel size, and I will map you to a right-sized floor-mounted configuration with room to grow. If you want a spec sheet, a preliminary single-line, or a fast ROI sketch for your team, contact us and ask for the floor-mounted DC fast plan. We can share pilot lessons, walk the site virtually, and prepare a clean proposal that you can take to stakeholders. Leave your inquiry today or email to schedule a short call—let’s make your first install smooth and your second even easier.
