What Factors Affect the Performance of a Through Core Current Transformer
2026-09-29

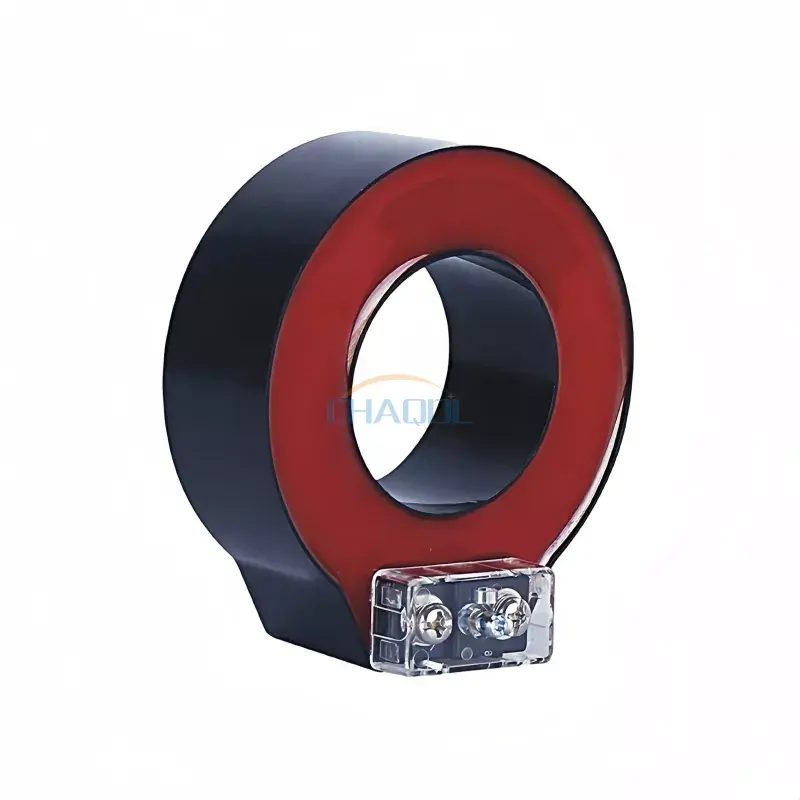

Selecting the right current sensing device is critical for accurate energy measurement, reliable protection, and long-term system stability. A Through Core Current Transformer from Anqiang Power is engineered to deliver consistent performance across demanding industrial, commercial, and utility environments. However, real-world results depend on several technical and environmental variables that engineers must evaluate carefully. Understanding these factors helps professionals specify the correct device, extend service life, and maintain measurement integrity.
Core Factors That Influence Performance
The behavior of a Through Core Current Transformer is shaped by magnetic, electrical, mechanical, and environmental conditions. Each factor interacts with the others, so a system-level view is essential.
| Factor | Impact on Performance | Practical Consideration |
|---|---|---|
| Core Material | Determines permeability, saturation level, and phase shift | Silicon steel suits general metering; nanocrystalline cores improve accuracy in wide dynamic ranges |
| Burden & Secondary Load | Excessive burden increases ratio error and phase displacement | Match the Through Core Current Transformer to the connected meter or relay input impedance |
| Primary Conductor Position | Off-center conductors reduce coupling and accuracy | Center the primary cable within the window for optimal flux linkage |
| Frequency Response | Deviation from rated frequency alters transformation ratio | Verify suitability for 50 Hz, 60 Hz, or variable-frequency drives |
| Temperature & Humidity | Thermal drift affects core permeability and insulation resistance | Choose appropriate insulation class and operating temperature range |
| External Magnetic Fields | Nearby conductors can introduce stray flux and measurement error | Use toroidal designs and maintain recommended clearances |
| Installation Torque & Fit | Loose or over-tightened assemblies cause vibration and contact issues | Follow Anqiang Power mounting guidelines precisely |
Design and Application Insights
1. Accuracy Class and Phase Error
Accuracy class defines the maximum permissible ratio and phase errors under specified conditions. For revenue metering, a Through Core Current Transformer with a tight accuracy class is necessary. For protection circuits, saturation behavior and composite error become more important than absolute precision.
2. Window Size and Cable Routing
The internal window diameter must accommodate the primary conductor without forcing. Bending or packing multiple cables unevenly distorts the magnetic field. Anqiang Power offers multiple window sizes to match various cable and busbar configurations.
3. Secondary Wiring Quality
Long secondary leads increase burden and can pick up noise. Twisted pair wiring, proper grounding, and short-circuit protection during maintenance preserve signal quality and operator safety.
4. Environmental and Safety Ratings
Ingress protection, flame retardancy, and dielectric strength determine where a Through Core Current Transformer can be installed. Outdoor, high-humidity, or high-vibration sites demand ruggedized models with validated insulation systems.
5. Calibration and Maintenance
Periodic calibration verifies ratio and phase accuracy over time. Routine inspection of terminals, insulation, and mounting hardware prevents drift and extends operational life.
Frequently Asked Questions
What is the main advantage of a Through Core Current Transformer over a split-core design?
A Through Core Current Transformer provides a continuous magnetic path with no air gap, which typically delivers higher accuracy, better linearity, and greater stability under varying load conditions, making it ideal for permanent installations where the primary conductor can be disconnected during assembly.
How does burden affect the accuracy of a Through Core Current Transformer?
Burden is the total impedance of the secondary circuit, including wiring, meters, and relays. If burden exceeds the rated value, the Through Core Current Transformer may saturate earlier, causing ratio errors and phase shifts; always keep the connected burden below the specified limit and use short, low-resistance secondary leads.
Can a Through Core Current Transformer be used for both metering and protection?
Yes, but the requirements differ. Metering applications prioritize high accuracy at normal load, while protection applications require predictable saturation and high overload capability. Anqiang Power supplies dedicated metering and protection models so engineers can match the device to the specific function.
What maintenance practices extend the life of a Through Core Current Transformer?
Regularly inspect insulation, tighten terminals to specification, verify secondary circuit integrity, and recalibrate at recommended intervals; keeping the core clean and dry and avoiding mechanical stress on the window also helps maintain performance over many years.
Conclusion
Performance of a Through Core Current Transformer depends on core material, burden, conductor placement, frequency, temperature, and installation quality. By addressing these factors and selecting a trusted partner, engineers can achieve accurate, stable, and safe current measurement. Anqiang Power combines precision manufacturing with application expertise to support every stage of your project.
