What Is a 1000kva Dry Transformer and Its Role in Modern Power Distribution?
2026-06-25

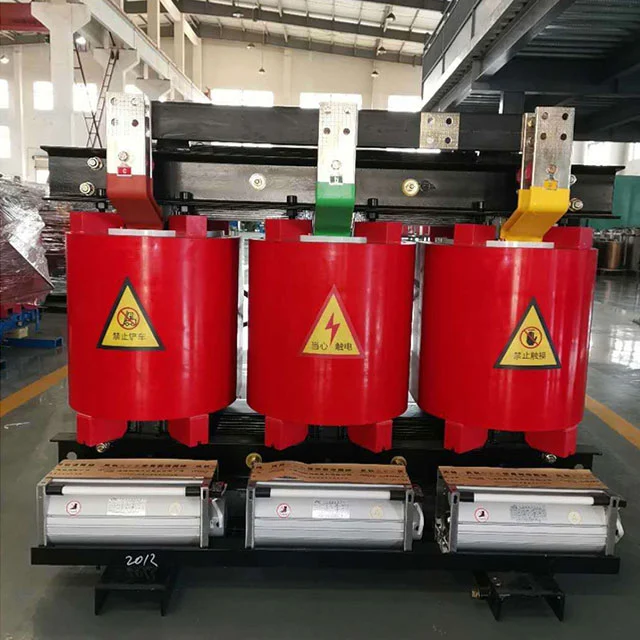

A 1000kva Dry Transformer is a highly efficient and safe electrical transformer designed to step up or step down voltage levels in medium to large-scale power distribution systems. Unlike oil-immersed transformers, dry-type transformers use air or solid insulation, making them more environmentally friendly, fire-resistant, and suitable for indoor installations. With the rapid expansion of urban infrastructure, industrial automation, and commercial complexes, the demand for reliable and low-maintenance transformers like the 1000kva Dry Transformer has significantly increased.
Manufactured with advanced technology and strict quality control, companies such as Shanghai Industrial Transformer Co., Ltd. provide high-performance solutions that meet international standards for safety, efficiency, and durability.
1. Working Principle of 1000kva Dry Transformer
The 1000kva Dry Transformer operates on the principle of electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field that induces voltage in the secondary winding.
Key characteristics include:
- No liquid insulation medium
- Air-cooled or forced air-cooled system
- Epoxy resin encapsulated windings
- Low partial discharge and high insulation strength
This structure ensures stable performance even under high-load conditions.
2. Why Choose a 1000kva Dry Transformer?
The 1000kva Dry Transformer is widely chosen due to its balance between capacity, safety, and efficiency. It is especially suitable for:
- Commercial buildings and shopping malls
- Hospitals and data centers
- Industrial manufacturing plants
- Airports and railway stations
- High-rise residential complexes
Advantages Overview
| Feature | Benefit |
|---|---|
| Fire resistance | No oil leakage or fire risk |
| Low maintenance | No regular oil testing required |
| Eco-friendly | No pollution or hazardous waste |
| Compact design | Easy indoor installation |
| High reliability | Stable voltage output |
3. Dry Transformer vs Oil-Immersed Transformer
Understanding the differences helps in selecting the right solution for your project.
| Comparison | 1000kva Dry Transformer | Oil-Immersed Transformer |
|---|---|---|
| Cooling method | Air cooling | Oil cooling |
| Safety level | High | Medium |
| Maintenance | Low | High |
| Installation | Indoor-friendly | Requires oil containment |
| Environmental impact | Clean | Risk of leakage |
The 1000kva Dry Transformer is particularly preferred in environments where fire safety and environmental protection are top priorities.
4. Core Applications of 1000kva Dry Transformer
The versatility of the 1000kva Dry Transformer makes it suitable for various sectors:
Industrial Use
Provides stable voltage for heavy machinery and automated production lines.
Commercial Infrastructure
Ensures uninterrupted power supply in malls, office towers, and hotels.
Public Facilities
Widely used in hospitals, schools, and transportation hubs where safety is critical.
Renewable Energy Systems
Supports solar and wind power integration into the grid.
5. Technical Specifications (Typical 1000kva Dry Transformer)
Below is a simplified specification table:
| Parameter | Value |
|---|---|
| Rated Capacity | 1000 kVA |
| Rated Voltage | 6kV / 10kV / 35kV (customizable) |
| Frequency | 50/60 Hz |
| Cooling Method | AN/AF (Air Natural / Air Forced) |
| Insulation Class | F or H |
| Efficiency | ≥ 98% |
| Temperature Rise | ≤ 100K |
These parameters may vary depending on customization requirements from Shanghai Industrial Transformer Co., Ltd.
6. Key Benefits in Real-World Applications
The 1000kva Dry Transformer delivers significant operational advantages:
- Enhanced Safety: Ideal for indoor environments with strict fire regulations
- Energy Efficiency: Reduces power loss during transmission
- Stable Operation: Maintains consistent voltage under fluctuating loads
- Long Service Life: Designed for decades of reliable performance
- Smart Integration: Compatible with modern monitoring systems
These benefits make it a preferred solution for next-generation power distribution networks.
7. Installation and Maintenance Considerations
Proper installation and maintenance are essential to maximize performance:
Installation Tips
- Ensure proper ventilation for heat dissipation
- Maintain adequate clearance around the transformer
- Use vibration-resistant mounting structures
Maintenance Guidelines
- Regular dust cleaning
- Thermal imaging inspections
- Terminal connection tightening checks
- Periodic insulation resistance testing
Compared to traditional systems, the 1000kva Dry Transformer significantly reduces maintenance workload and operational costs.
8. Why Shanghai Industrial Transformer Co., Ltd.?
As a professional manufacturer, Shanghai Industrial Transformer Co., Ltd. focuses on delivering high-quality power equipment tailored to global industrial demands. Their 1000kva Dry Transformer solutions are engineered with:
- Advanced epoxy resin casting technology
- Strict IEC standard compliance
- Customized voltage and design options
- Strong after-sales technical support
This ensures clients receive not only a product but a complete power solution.
Conclusion
The 1000kva Dry Transformer is a critical component in modern electrical infrastructure, offering high safety, efficiency, and environmental sustainability. Its widespread adoption across industries highlights its importance in ensuring stable and reliable power distribution. Whether used in commercial complexes, industrial facilities, or public infrastructure, it delivers consistent performance with minimal maintenance requirements.
For businesses seeking a dependable and high-performance transformer solution, Shanghai Industrial Transformer Co., Ltd. provides trusted expertise and advanced manufacturing capabilities.
If you are looking for a reliable power solution tailored to your project needs, contact us today to learn more about our 1000kva Dry Transformer and customized transformer solutions.
