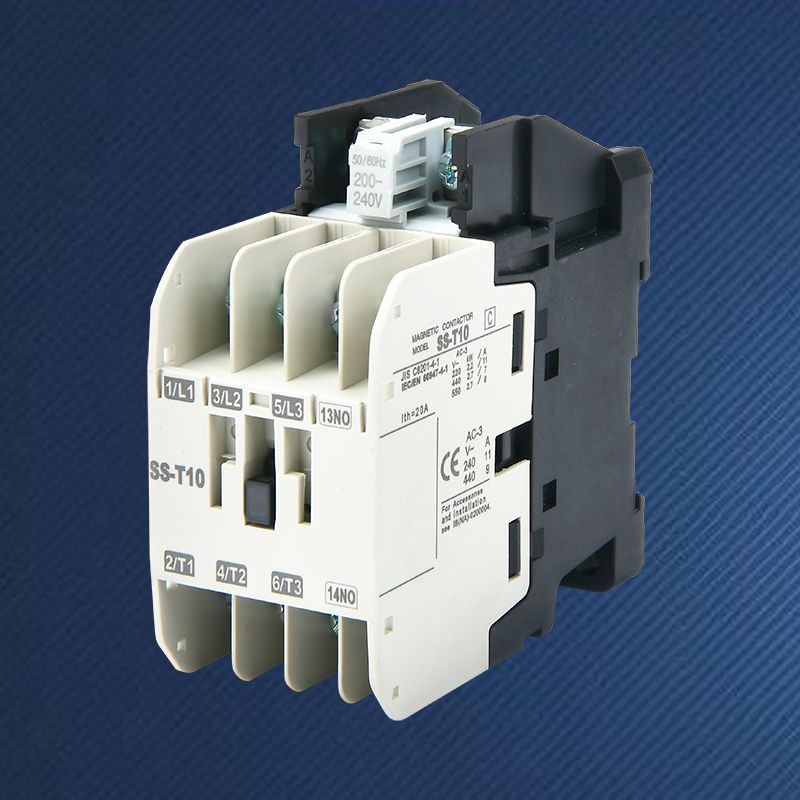

What Is a 10A AC Magnetic Contactor?
2026-06-30
A 10A AC Magnetic Contactor is an essential electrical switching device widely used in industrial automation, motor control systems, HVAC systems, and power distribution panels. It is designed to remotely switch electrical loads using an electromagnetic coil, ensuring safe, reliable, and efficient control of circuits carrying up to 10 amperes of current.
In modern electrical engineering, the demand for compact, durable, and energy-efficient switching components has increased significantly. The 10A AC Magnetic Contactor plays a key role in meeting these requirements by offering stable performance, long electrical life, and strong adaptability across various applications. Manufacturers like Zhejiang SPX Electric Appliance Co., Ltd. focus on producing high-quality contactors that meet international standards and industrial expectations.
Understanding the Working Principle of a 10A AC Magnetic Contactor
The working principle is based on electromagnetism. When the control coil is energized, it generates a magnetic field that pulls the movable contacts together, closing the circuit. When the coil is de-energized, a spring mechanism returns the contacts to their original open position, breaking the circuit safely.
This mechanism allows remote and automatic control of high-power devices using a low-power signal, improving both safety and operational efficiency.
Key Components of a 10A AC Magnetic Contactor
A typical 10A AC Magnetic Contactor consists of several important components:
- Electromagnetic Coil: Generates magnetic force when energized
- Main Contacts: Carry and switch the load current
- Auxiliary Contacts: Used for control circuits and signaling
- Arc Extinguishing Chamber: Reduces electrical arc during switching
- Spring Mechanism: Ensures fast and reliable disconnection
- Housing: Provides insulation and mechanical protection
Main Functions and Applications
The 10A AC Magnetic Contactor is widely used across multiple industries due to its versatility and reliability.
Common Applications:
- Motor control in industrial machinery
- HVAC systems (air conditioners, compressors)
- Lighting control systems in commercial buildings
- Pumping systems in agriculture and water treatment
- Automation control panels
- Small-scale industrial equipment
Its ability to handle frequent switching operations makes it ideal for environments requiring stable and repetitive control.
Advantages of Using a 10A AC Magnetic Contactor
The benefits of using a 10A AC Magnetic Contactor include:
- High operational reliability
- Long mechanical and electrical lifespan
- Fast switching response
- Compact design suitable for control panels
- Safe remote operation of high-voltage circuits
- Low power consumption for coil activation
These advantages make it a preferred choice for engineers and system designers seeking dependable switching solutions.
Technical Specifications Overview
Below is a simplified specification table for a typical 10A AC Magnetic Contactor:
| Parameter | Specification Example |
|---|---|
| Rated Current | 10A |
| Rated Voltage | 220V / 380V AC |
| Coil Voltage Range | 24V / 110V / 220V AC |
| Frequency | 50/60 Hz |
| Electrical Life | ≥ 100,000 operations |
| Mechanical Life | ≥ 1,000,000 operations |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Temperature | -5°C to +55°C |
10A AC Magnetic Contactor vs Relay: A Quick Comparison
Many users confuse contactors with relays. While both are switching devices, they serve different purposes.
| Feature | 10A AC Magnetic Contactor | Relay |
|---|---|---|
| Load Capacity | Higher (up to industrial) | Lower (signal level) |
| Durability | High | Moderate |
| Arc Handling | Strong arc suppression | Limited |
| Application Scope | Industrial systems | Control circuits |
| Size | Larger | Smaller |
In summary, contactors are designed for heavy-duty switching, while relays are used for lighter control tasks.
Why the 10A AC Magnetic Contactor Is Important in Modern Systems
Modern electrical systems demand high safety standards, automation capabilities, and energy efficiency. The 10A AC Magnetic Contactor provides:
- Safe isolation of high-power circuits
- Reduced manual intervention in operations
- Improved automation in industrial systems
- Enhanced system protection and control accuracy
Without such components, managing electrical loads efficiently would be far more complex and risky.
Quality and Manufacturing Standards at Zhejiang SPX Electric Appliance Co., Ltd.
Zhejiang SPX Electric Appliance Co., Ltd. is committed to delivering reliable and high-performance electrical components, including advanced 10A AC Magnetic Contactor products. The company emphasizes:
- Strict quality control procedures
- Advanced production technology
- Compliance with international certifications
- Durable material selection
- Continuous product innovation
Through consistent R&D investment, the company ensures that its contactors meet the evolving needs of global industrial markets.
Installation and Maintenance Tips
To ensure optimal performance of a 10A AC Magnetic Contactor, proper installation and maintenance are essential.
Installation Tips:
- Ensure correct coil voltage matching
- Secure wiring connections tightly
- Install in a ventilated control panel
- Avoid overloading beyond rated current
Maintenance Tips:
- Regularly inspect contact wear
- Clean dust and debris from housing
- Check for coil overheating
- Replace worn components promptly
Proper maintenance significantly extends the lifespan of the device and improves system reliability.
Conclusion
The 10A AC Magnetic Contactor is a crucial component in modern electrical control systems, offering safe, efficient, and reliable switching for a wide range of applications. Its robust design, long service life, and adaptability make it indispensable in industrial and commercial environments.
With strong manufacturing expertise and strict quality standards, Zhejiang SPX Electric Appliance Co., Ltd. continues to provide high-quality solutions that meet global demands for performance and safety.
If you are looking for dependable and cost-effective switching solutions for your electrical systems, contact us today to learn more about our 10A AC Magnetic Contactor products and customized solutions tailored to your needs.
