What is the Difference Between a Delta and Wye Connection in Three Phase Transformers
2026-01-27

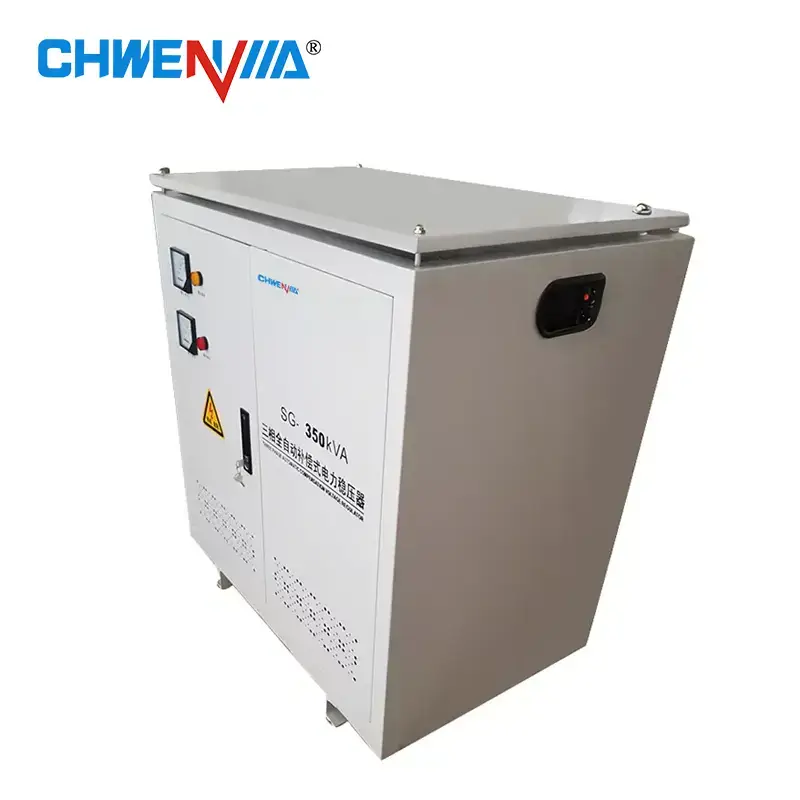

Understanding the internal wiring of a Three Phase Transformer is crucial for any electrical engineer or system designer. The two fundamental configurations—Delta and Wye (or Star)—define the transformer's characteristics, performance, and application suitability. At Wenma, we believe that selecting the correct connection is the cornerstone of building a reliable and efficient power system. This blog will demystify these two essential configurations, highlighting their key differences and guiding you toward the optimal choice for your project.
The core difference lies in how the three windings on each side of the transformer are interconnected.
-
Wye (Y) Connection: All three windings are connected at one common neutral point. This creates a fourth wire (neutral) terminal, allowing for two different output voltages: phase-to-phase (line voltage) and phase-to-neutral.
-
Delta (Δ) Connection: The windings are connected end-to-end to form a closed loop, resembling a triangle. There is no neutral point, and only one level of voltage (line voltage) is available.
To clearly compare their technical attributes, refer to the table below:
| Feature | Wye (Y) Connection | Delta (Δ) Connection |
|---|---|---|
| Neutral Point | Available (Provides a 4-wire system) | Not Available (3-wire system only) |
| Voltage Relationship | V_line = √3 × V_phase | V_line = V_phase |
| Current Relationship | I_line = I_phase | I_line = √3 × I_phase |
| Fault Current Handling | Better for handling unbalanced loads | Can circulate harmonic currents |
| Common Applications | Commercial power distribution, systems requiring a neutral | Industrial settings, high-power motor drives, transmission lines |
| Key Advantage | Provides voltage flexibility and system stability | Offers inherent reliability and handles three-phase faults well |
Choosing between Delta and Wye depends on your specific needs. A Wye connection from Wenma is often preferred for secondary distribution to offer 120/208V or 277/480V systems. A Delta configuration is typically chosen for robust industrial applications or as a primary winding to block third-harmonic currents.
Three Phase Transformer FAQ
Q: Can a single Three Phase Transformer replace three single-phase transformers?
A: Yes, absolutely. A single three-phase unit is generally more compact, cost-effective, and efficient for three-phase power applications than a bank of three single-phase units, making it a preferred choice in most industrial and commercial installations from providers like Wenma.
Q: How do I know if my facility needs a Delta or Wye connected transformer?
A: This decision is based on your voltage requirements and load type. If you need a neutral wire to supply both single-phase (e.g., lighting) and three-phase loads, choose Wye. For balanced three-phase loads like large motors, Delta is often suitable. Consulting with Wenma's engineering team is always recommended.
Q: What are the implications of an ungrounded system in these connections?
A: An ungrounded Delta system can continue operating with a single line-to-ground fault, but it risks transient overvoltages. A Wye system is typically solidly or impedance-grounded for safety and to provide a clear path for fault currents, ensuring protective devices operate correctly.
Selecting the right transformer configuration is a critical technical decision that impacts system safety, efficiency, and cost. Whether your project demands the flexible Wye or the robust Delta connection, Wenma provides expertly engineered Three Phase Transformer solutions tailored to your precise specifications.
Contact us today for a detailed consultation. Let Wenma's expertise power your project with reliability and precision.
