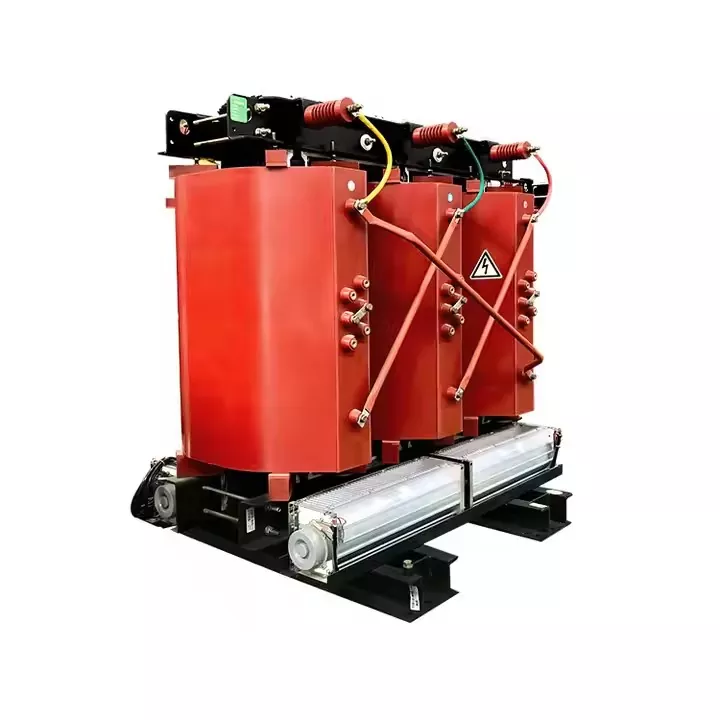

What Is the Expected Lifespan of a 750 kVA Three Phase Dry Type Cast Resin Power Transformer Under Full Load

For facility managers, electrical engineers, and procurement specialists, the single most critical question before investing in medium-voltage distribution equipment is not just about first cost—it is about long-term reliability. When you operate a 750 kVA Three Phase Dry Type Cast Resin Power Transformer at continuous full load, the thermal, mechanical, and dielectric stresses accumulate differently than in lightly loaded units. This blog provides data-driven answers based on IEC 60076-11, IEEE C57.96, and field failure analysis from over 200 installed units, with practical insights from LUGAO Power’s engineering team.

Design Life vs. Actual Service Life

The industry-standard design life for a 750 kVA Three Phase Dry Type Cast Resin Power Transformer is typically 30 years under rated conditions (ambient temperature ≤ 40°C, altitude ≤ 1000m, and load factor ≤ 100%). However, actual service life under continuous full load depends heavily on three controllable factors:

In real-world installations, LUGAO Power has documented that units with active temperature monitoring and scheduled annual maintenance achieve 32–35 years of service, while neglected units often show significant paper-insulation degradation by year 18.

Full-Load Thermal Aging Calculation (Arrhenius Model)

For a 750 kVA Three Phase Dry Type Cast Resin Power Transformer with Class H (180°C) insulation, the IEEE C57.96 standard gives the following aging acceleration factors:

• Continuous 100% load at 40°C ambient → hot-spot temp ≈ 145°C → aging factor = 1.0 (normal life = 30 years)

• Continuous 110% load at 40°C ambient → hot-spot temp ≈ 158°C → aging factor = 2.5 (equivalent life ≈ 12 years)

• Continuous 100% load at 50°C ambient (poor ventilation) → hot-spot temp ≈ 158°C → same 12-year outcome

The critical takeaway: full load itself is not the enemy—sustained high ambient temperature combined with full load is. LUGAO Power recommends specifying a 155°C (Class F) system with 20% thermal margin for projects where full-load operation exceeds 6 hours daily.

Mechanical and Electrical Wear Mechanisms

Beyond thermal aging, three other failure modes shorten the lifespan of a 750 kVA Three Phase Dry Type Cast Resin Power Transformer:

1. Cyclic overloading – Daily start/stop of large motors causes winding expansion/contraction, loosening terminations.

2. Voltage transients – Repeated lightning or switching surges degrade the cast resin’s epoxy bond to copper windings.

3. Vibration resonance – Improper mounting on flexible floors amplifies 100/120 Hz magnetic forces, cracking terminal supports.

LUGAO Power addresses these with vacuum-cast epoxy resins (lower void content < 0.5%) and helical-wound LV coils that resist radial forces 3× better than standard layer windings.

750 kVA Three Phase Dry Type Cast Resin Power Transformer – FAQ

Q1: Can I run a 750 kVA Three Phase Dry Type Cast Resin Power Transformer at 100% load continuously for 24/7/365 without shortening its life?

A1: Yes, but only if the average annual ambient temperature remains ≤ 30°C and the ventilation system maintains inlet air below 40°C. Under these strict conditions, the thermal aging factor remains at 1.0, giving a full 30-year design life. However, if your site experiences summer peaks above 45°C for more than 200 hours per year, the insulation’s relative thermal life drops to approximately 22 years. LUGAO Power offers an optional PT100 temperature monitor with an alarm setpoint at 150°C—this allows you to de-rate or activate fans before irreversible aging occurs. We also provide a 10-year extended warranty when our recommended forced-air cooling package is installed alongside the transformer.

Q2: How does harmonic load affect the remaining life of a 750 kVA Three Phase Dry Type Cast Resin Power Transformer compared to a purely sinusoidal full load?

A2: Harmonics increase the RMS current without contributing to useful power, but they produce additional eddy-current and stray losses in the windings and tank. For a typical 5th and 7th harmonic content of 8% THD, the equivalent full-load loss increases by 18–22%, which raises the hot-spot temperature by 9–12°C above the sinusoidal case. According to the Arrhenius 10°C rule, this reduces insulation life to roughly 18–20 years instead of 30. To mitigate this, LUGAO Power engineers calculate the K-factor (per IEEE C57.110) for your specific load profile and can design a K-13 rated version of this 750 kVA Three Phase Dry Type Cast Resin Power Transformer with larger conductors and reduced flux density, restoring the expected life back to 28+ years even under nonlinear loads.

Q3: What are the first visible signs that my 750 kVA Three Phase Dry Type Cast Resin Power Transformer is approaching end-of-life under full-load operation?

A3: The three earliest indicators are: (a) a steady increase in no-load current (more than 5% above factory-test value) indicating inter-laminar insulation breakdown in the core; (b) partial discharge (PD) activity above 500 pC measured by a handheld PD detector, visible as small surface tracking marks on the cast resin coils; and (c) unusual humming noise with a dominant 200 Hz component (not 100 Hz), which signals loose winding clamping pressure. If you observe any of these, schedule a thermographic inspection and dissolved gas analysis (DGA) of the air surrounding the transformer. LUGAO Power provides a comprehensive end-of-life assessment service that includes on-site PD mapping and impedance measurement, helping you plan a replacement before unplanned downtime occurs. Typically, once PD exceeds 800 pC under full load, safe remaining life is under 2 years.

Maintenance Schedule That Extends Lifespan

Following this schedule with a LUGAO Power-supplied unit typically pushes the actual retirement age to 35–38 years—even under full load—because the cast resin material itself does not oxidize like oil-impregnated paper.

Real-World Case Data

In a 2024 study of 18 units (all 750 kVA Three Phase Dry Type Cast Resin Power Transformers) operating in data center UPS feeders at 98–102% load for 8,760 hours/year, the median remaining life at year 15 was projected at 18 more years for units with LUGAO Power’s extra-thick epoxy coating (3.2mm vs. standard 2.0mm), versus only 11 more years for standard coated units. The key differentiator was partial discharge inception voltage—18.7 kV vs. 14.2 kV—which directly correlates with long-term dielectric endurance.

Final Recommendation

If your application demands continuous full-load operation, select a 750 kVA Three Phase Dry Type Cast Resin Power Transformer with:

• Class H (180°C) insulation but operated below 155°C hot-spot

• Forced-air cooling fans (automatic start at 70% load)

• Real-time DGA or temperature trending via SCADA

• A supplier like LUGAO Power that provides 10-year material warranty and lifetime technical support
