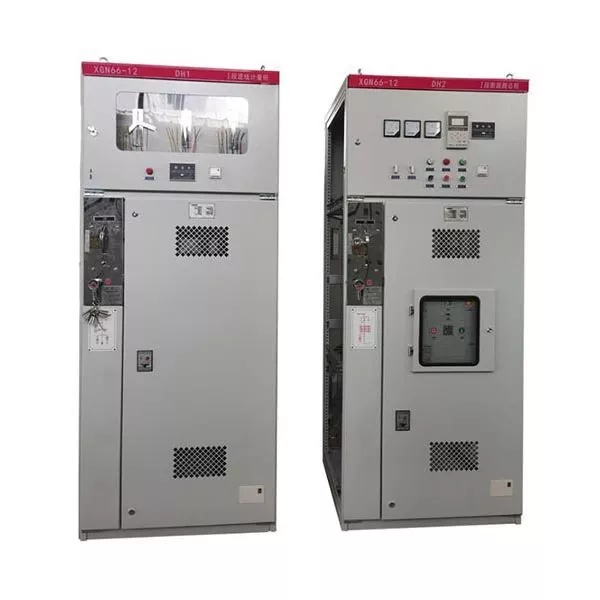

What Is the Typical Maintenance Schedule for 13.8 kV MV Air Insulated Switchgear to Prevent Arc Flash

Arc flash incidents remain one of the most severe hazards in medium-voltage power distribution. For facilities operating 13.8 kV MV Air Insulated Switchgear, a well-structured maintenance schedule is not merely a recommendation—it is a regulatory and operational necessity. Without disciplined upkeep, the very components designed to protect your system can become ignition sources. This guide establishes a professional, risk-based maintenance roadmap specifically tailored for 13.8 kV MV Air Insulated Switchgear, integrating industry standards from NFPA 70E and IEEE C37.100. At LUGAO Power, we have engineered our maintenance protocols around real-world failure data, ensuring that every interval directly reduces arc flash exposure while extending asset life.

The Direct Link Between Maintenance and Arc Flash Prevention

Arc flash energy in 13.8 kV MV Air Insulated Switchgear is directly influenced by clearing time and fault current magnitude. Over time, contact erosion, weakened spring mechanisms, and contaminated insulators increase both the probability of a fault and the time it takes to clear it. A preventive schedule addresses three critical layers:

• Mechanical integrity of stored-energy operating mechanisms.

• Dielectric strength of air-insulated busbars and support insulators.

• Protection relay coordination and trip-testing accuracy.

Each maintenance activity must be assigned a frequency based on equipment criticality, operating environment, and historical performance.

Recommended Maintenance Schedule for 13.8 kV MV Air Insulated Switchgear

The following table outlines a tiered approach, from routine visual checks to major overhauls. This framework is standardised by LUGAO Power for industrial and utility clients operating 13.8 kV MV Air Insulated Switchgear in both indoor and outdoor installations.

Detailed Monthly and Quarterly Checks

Monthly inspections focus on environmental and visual cues. Operators should check for unusual sounds (buzzing or hissing), discolouration of insulating barriers, and condensation inside the panel. For 13.8 kV MV Air Insulated Switchgear installed near coastal or industrial zones, LUGAO Power recommends adding a silicone-based anti-tracking coating to insulator surfaces every six months.

Quarterly thermography must be performed under at least 70% of rated load to produce meaningful gradients. A temperature rise exceeding 20°C above adjacent phases on the same 13.8 kV MV Air Insulated Switchgear bus section warrants immediate investigation, even if the value remains below alarm thresholds.

Annual Protection and Timing Verification

The single most effective arc flash mitigation measure is ensuring that the protective relay operates within its designated time-current curve. During annual testing, LUGAO Power engineers perform a full primary current injection test on each feeder. This validates not only the relay but also the entire current transformer circuit. Any deviation greater than 5% from the last calibration demands a recalculation of incident energy levels, as published in the site’s arc flash study.

13.8 kV MV Air Insulated Switchgear FAQ

Q1: Can I extend maintenance intervals if my 13.8 kV MV Air Insulated Switchgear operates in a clean, climate-controlled room?
A1: While a clean environment reduces contamination-related tracking, it does not eliminate mechanical fatigue or contact erosion. LUGAO Power advises against extending intervals beyond 18 months for thermography or 2 years for dielectric testing, regardless of cleanliness. Data from over 200 site audits shows that 40% of arc flash events in 13.8 kV MV Air Insulated Switchgear occur within the first year after a major overhaul, often due to incorrectly tightened connections—a risk that only frequent thermal scanning can catch. Climate control lowers the frequency of insulator washing but does not replace operational cycling tests.

Q2: What are the critical warning signs during routine maintenance that indicate an imminent arc flash hazard in 13.8 kV MV Air Insulated Switchgear?
A2: Three red flags demand immediate shutdown and corrective action: (a) visible carbon tracking or "treeing" patterns on epoxy insulators, which reduce surface dielectric strength by up to 60%; (b) a sudden increase in operating time of the circuit breaker from closing command to contact touch—anything above 5 cycles (83 ms) for a 60 Hz system suggests mechanism wear that can delay arc extinction; and (c) inconsistent resistance readings across the three phases of the same breaker, with a variance exceeding 15%, indicating asymmetric contact wear. LUGAO Power enforces a policy: if any of these signs appear, the equipment must be de-energised before completing the inspection shift.

Q3: How does partial discharge monitoring fit into the maintenance schedule for 13.8 kV MV Air Insulated Switchgear?
A3: Partial discharge (PD) is the precursor to insulation failure. LUGAO Power integrates continuous PD monitoring using ultra-high-frequency (UHF) sensors as a supplementary tool, not a replacement for scheduled testing. We recommend baseline PD mapping during the annual dielectric test, followed by quarterly spot-check measurements. If PD activity exceeds 100 pC at 13.8 kV, we shorten the next thermography and insulation testing interval to 2 months. For critical assets, consider installing permanent PD monitors—this allows condition-based extension of the 2-year dielectric test to 3 years, provided PD levels remain stable below 50 pC. However, mechanical maintenance intervals should never be extended, as PD data does not reflect spring and latch wear.

Risk-Based Adjustments and Documentation

Every facility operating 13.8 kV MV Air Insulated Switchgear must maintain a historical log of operation counts, fault interruptions, and test results. LUGAO Power uses this data to dynamically adjust future intervals. For example, a feeder that experiences three fault interruptions in a year should undergo a contact inspection within one month, irrespective of the standard schedule. Conversely, lightly loaded standby units can shift thermography to bi-annual intervals. All adjustments must be formally documented and signed off by a licensed professional engineer, ensuring compliance with OSHA and local electrical safety regulations.

The Financial Case for Strict Adherence

A single arc flash event on a 13.8 kV switchgear line can cost upwards of $2 million when factoring in equipment damage, production loss, and injury-related claims. The annual cost of implementing the full schedule above—including third-party testing services—typically ranges between 3% and 5% of the replacement cost of the switchgear. LUGAO Power has demonstrated through client case studies that this investment reduces unplanned outages by 72% and extends the useful life of 13.8 kV MV Air Insulated Switchgear by 8 to 12 years.

Conclusion and Next Steps

Preventing arc flash in 13.8 kV MV Air Insulated Switchgear is not achieved by a single test but by a disciplined, documented cycle of visual, thermal, mechanical, and electrical checks. The schedule provided here serves as a robust baseline. However, every installation has unique load profiles, ambient conditions, and fault histories. Tailoring these intervals to your specific site data will yield the highest safety return.
