What Maintenance Does a Photovoltaic AC Combiner Box Require
2026-03-09

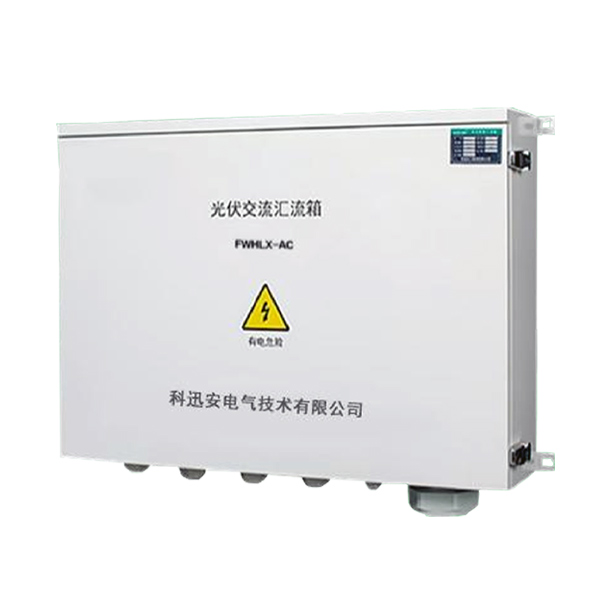

A Photovoltaic AC Combiner Box is a critical component in any solar power system, acting as the central hub where the outputs of multiple inverters are combined before transmission to the transformer or grid. To ensure long-term efficiency and safety, understanding what maintenance a Photovoltaic AC Combiner Box requires is essential for system owners and operators. At FATO, we engineer our equipment for durability, but regular upkeep remains key to optimal performance.
Proper maintenance not only extends the lifespan of the equipment but also prevents costly downtime. Below is a professional guide to maintaining your Photovoltaic AC Combinerbox, brought to you by FATO.
Recommended Maintenance Schedule
Adhering to a routine schedule is the foundation of reliability. The following table outlines the recommended frequency for each task.
| Frequency | Maintenance Task | Key Check Points |
|---|---|---|
| Monthly | Visual Inspection | Check for physical damage, rust, or animal entry. Ensure the enclosure door is sealed properly. |
| Quarterly | Thermal Imaging | Scan for hot spots on circuit breakers, busbars, and terminals, which indicate loose connections. |
| Semi-Annually | Electrical Checks | Verify torque settings on all bolts. Test the functionality of surge protection devices (SPDs). |
| Annually | Internal Cleaning | Remove dust and debris using dry, low-pressure air. Inspect for corrosion or signs of arcing. |
Detailed Maintenance Procedures
1. Enclosure and Environmental Checks
The cabinet must maintain its ingress protection (IP) rating. Inspect the gaskets and seals to ensure they are pliable and intact. If the unit is in a harsh environment, consider applying an anti-corrosive spray to external hinges and locks. FATO enclosures are designed with high-grade materials, but environmental wear affects all hardware over time.
2. Electrical Connection Integrity
Loose connections are a primary cause of failure in any Photovoltaic AC Combinerbox. Vibration from nearby equipment or thermal expansion can loosen terminals. Use a calibrated torque wrench to tighten all connections to the manufacturer's specifications. Infrared scanning is the most effective non-invasive method to identify resistance issues before they lead to failure.
3. Surge Protection Device (SPD) Status
SPDs have a limited lifespan and degrade with every surge event.
-
Visual Indicator: Most FATO SPDs feature a window that turns from green to red when protection is compromised.
-
Replacement: Any tripped or expired SPD must be replaced immediately to protect downstream inverters from voltage spikes.
4. Cooling and Ventilation
While many combiner boxes are passively cooled, they still rely on airflow. Ensure that ventilation grilles are not blocked by vegetation, debris, or nests. Overheating can drastically reduce the efficiency and lifespan of the internal components.
Common Issues and Solutions
-
Issue: Circuit breaker tripping frequently.
-
Solution: Investigate for ground faults or short circuits in the AC cabling before resetting.
-
-
Issue: Corroded terminals.
-
Solution: Clean the terminals with a wire brush and apply dielectric grease. Replace terminals if pitting is severe.
-
Frequently Asked Questions (FAQ)
Here are the top 3 frequently asked questions regarding the Photovoltaic AC Combinerbox:
Q: How often should I replace the surge protection devices inside my Photovoltaic AC Combinerbox?
A: The lifespan of an SPD depends on the number and intensity of surge events it experiences. However, as a rule of thumb, you should inspect the status indicators quarterly. Even without visible damage, it is best practice to replace SPD modules every 5 years to ensure optimal protection, as their internal components degrade over time. FATO offers easily replaceable plug-in modules to simplify this process.
Q: What are the signs that my Photovoltaic AC Combinerbox is overheating?
A: The most reliable sign is discoloration of the busbars or insulation. If you open the unit and smell burning plastic or notice a yellow/brown tint on plastic components, the box has likely been operating above its rated temperature. Regular thermal imaging can detect these hot spots before permanent damage occurs. Ensuring all ventilation paths are clear is the primary preventative measure.
Q: Is it safe to perform maintenance on a live Photovoltaic AC Combinerbox?
A: No. Working inside a live Photovoltaic AC Combinerbox is extremely dangerous due to the high voltages and currents present. Always follow strict lockout/tagout procedures to isolate the AC combiner box from both the inverter side and the grid side before opening the enclosure. Even after isolation, use a voltage meter to verify zero energy before touching any internal components. Safety is the top priority in FATO's design philosophy and operational guidelines.
Conclusion
Regular maintenance of your Photovoltaic AC Combinerbox is not just a recommendation—it is a necessity for system longevity and safety. By following a structured schedule of visual checks, electrical testing, and cleaning, you can ensure your solar investment continues to perform at its peak.
For expert advice or to source high-quality, low-maintenance components for your next project, do not hesitate to reach out to our team.
