What Makes 22kV SF6 GIS RMU Ring Main Unit Switchgear Essential for Modern Power Distribution?
2026-07-09
In today's rapidly developing power infrastructure, reliable and safe electricity distribution has become a critical requirement for industries, commercial buildings, renewable energy projects, and urban power networks. The 22kV SF6 GIS RMU Ring Main Unit Switchgear has become an important solution for medium-voltage power distribution systems due to its compact structure, high safety performance, and excellent operational reliability. As a professional electrical equipment provider, Wenzhou Huajidian Technology Co. Ltd. focuses on delivering advanced medium-voltage switchgear solutions designed to improve grid stability, reduce maintenance costs, and enhance power supply efficiency.
With the increasing demand for intelligent and secure electrical systems, traditional open-air switchgear is gradually being replaced by gas-insulated solutions. The 22kV SF6 GIS RMU Ring Main Unit Switchgear provides effective protection against environmental factors while ensuring continuous and stable power transmission.
What Is 22kV SF6 GIS RMU Ring Main Unit Switchgear?

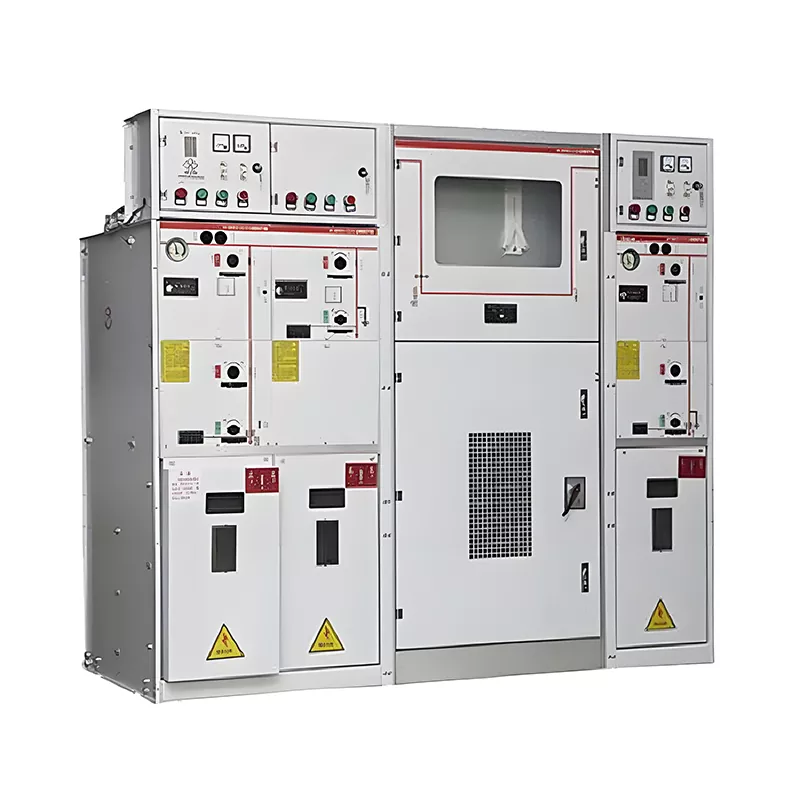

A 22kV SF6 GIS RMU Ring Main Unit Switchgear is a medium-voltage electrical distribution device designed for controlling, protecting, and isolating power circuits in ring network systems. It uses sulfur hexafluoride (SF6) gas as an insulating and arc-extinguishing medium, allowing the equipment to achieve high electrical performance within a compact enclosure.
The RMU (Ring Main Unit) configuration allows multiple power feeders to form a closed-loop distribution network. This design improves power supply reliability because electricity can be delivered through alternative paths when one section experiences a fault.
The main components usually include:
| Component | Function |
|---|---|
| SF6 Gas Chamber | Provides insulation and arc extinguishing performance |
| Load Break Switch | Controls normal current switching operations |
| Circuit Breaker | Protects the system from overload and short circuits |
| Earthing Switch | Ensures safe maintenance operations |
| Cable Connection Unit | Provides reliable cable integration |
| Intelligent Monitoring System | Enables condition monitoring and remote control |
Why Is 22kV SF6 GIS RMU Switchgear Important?
Power distribution networks face many challenges, including increasing electricity demand, limited installation space, and the need for higher operational safety. The 22kV SF6 GIS RMU Ring Main Unit Switchgear addresses these challenges through advanced design and reliable technology.
1. Enhanced Power Supply Reliability
One of the most important advantages of RMU switchgear is its ring network structure. Unlike traditional radial distribution systems, ring networks can continue supplying electricity even when a fault occurs in part of the system.
This makes the equipment particularly suitable for:
- Urban power distribution networks
- Industrial facilities
- Data centers
- Commercial complexes
- Renewable energy systems
- Infrastructure projects
2. Compact Design for Space-Saving Installation
Modern cities and industrial areas often face limited installation space. The gas-insulated structure of the 22kV SF6 GIS RMU Ring Main Unit Switchgear allows manufacturers to reduce equipment size while maintaining excellent electrical performance.
Compared with conventional air-insulated switchgear, GIS RMU systems require less installation space and can be installed in compact substations, underground facilities, and indoor electrical rooms.
3. Superior Safety Performance
Safety is a key factor in medium-voltage power systems. SF6 gas provides excellent insulation characteristics, reducing the possibility of electrical breakdown and improving operational security.
The sealed enclosure also protects internal components from:
- Dust contamination
- Moisture
- Salt spray corrosion
- Extreme weather conditions
- Industrial pollutants
This allows the switchgear to maintain stable performance even in challenging environments.
How Does 22kV SF6 GIS RMU Ring Main Unit Switchgear Work?
The operation principle of the switchgear is based on controlling medium-voltage power circuits through switching, protection, and isolation functions.
The basic working process includes:
-
Power Input
Electrical energy enters the RMU through incoming feeder cables.
-
Circuit Control
The load break switch or circuit breaker controls the connection and disconnection of power circuits.
-
Power Distribution
Electricity is distributed through outgoing feeders to different users or equipment.
-
Fault Protection
When abnormal conditions such as short circuits or overloads occur, protective devices quickly isolate the faulty section.
-
Safe Maintenance
The earthing switch provides a safe condition for inspection and maintenance work.
This efficient operating process helps maintain continuous power supply and minimizes downtime.
Main Applications of 22kV SF6 GIS RMU Ring Main Unit Switchgear
The flexibility and reliability of this equipment make it widely used across various industries.
| Application Field | Benefits |
|---|---|
| Power Distribution Networks | Improves grid stability and reduces outages |
| Industrial Plants | Provides reliable energy supply for production equipment |
| Commercial Buildings | Ensures safe electricity distribution |
| Solar and Wind Energy Projects | Supports renewable energy integration |
| Underground Substations | Saves installation space |
| Transportation Infrastructure | Provides stable power control |
22kV SF6 GIS RMU vs Traditional Switchgear
Understanding the differences between modern GIS RMU technology and traditional switchgear helps users choose the right solution.
| Feature | 22kV SF6 GIS RMU Switchgear | Traditional Switchgear |
|---|---|---|
| Insulation Method | SF6 gas insulation | Air insulation |
| Size | Compact structure | Larger installation space required |
| Environmental Resistance | Excellent protection | More affected by environment |
| Maintenance Requirement | Lower maintenance frequency | Higher maintenance demand |
| Safety Level | High operational safety | Depends on installation conditions |
| Installation Location | Indoor and compact areas | Requires more space |
The comparison shows why many modern electrical projects prefer SF6 GIS RMU solutions for reliable medium-voltage distribution.
Key Advantages of Wenzhou Huajidian Technology Co. Ltd. 22kV SF6 GIS RMU Solutions
Wenzhou Huajidian Technology Co. Ltd. provides professional medium-voltage electrical equipment designed according to industry requirements and customer applications.
The key advantages include:
Reliable Manufacturing Quality
High-quality materials and advanced manufacturing processes ensure stable operation and long service life.
Customized Electrical Solutions
Different projects have different requirements. Professional customization helps customers select suitable configurations based on voltage levels, protection requirements, and installation environments.
Intelligent Operation Support
Modern RMU switchgear can integrate monitoring systems, communication functions, and automation technologies to support smart grid development.
Reduced Maintenance Costs
The sealed SF6 insulation structure minimizes external influence and reduces maintenance workload, helping customers improve operational efficiency.
How to Choose the Right 22kV SF6 GIS RMU Ring Main Unit Switchgear?
Selecting suitable switchgear requires careful consideration of several factors.
Important selection points include:
- Rated voltage requirements
- Rated current capacity
- Short-circuit withstand capability
- Installation environment
- Protection level requirements
- Automation and communication needs
- Future expansion possibilities
A professional supplier can help customers design an optimized power distribution solution according to actual application conditions.
Future Development Trends of Medium Voltage RMU Technology
With the growth of smart grids and renewable energy systems, medium-voltage switchgear technology continues to evolve.
Future trends include:
- Digital monitoring systems
- Remote operation capabilities
- Improved energy efficiency
- Smart fault detection
- Environment-friendly insulation technologies
- Greater integration with renewable energy networks
The 22kV SF6 GIS RMU Ring Main Unit Switchgear will continue playing an important role in modern electrical infrastructure because of its reliability, flexibility, and safety advantages.
Frequently Asked Questions (FAQ)
1. What is the main advantage of 22kV SF6 GIS RMU Ring Main Unit Switchgear?
Its main advantage is providing reliable power distribution with a compact design, strong environmental protection, and excellent safety performance.
2. Where can 22kV SF6 GIS RMU Switchgear be used?
It is widely used in power grids, industrial facilities, commercial buildings, renewable energy projects, and infrastructure applications.
3. Why is SF6 gas used in GIS RMU switchgear?
SF6 gas has excellent insulation and arc-extinguishing properties, allowing switchgear to achieve high electrical performance in a smaller structure.
4. How can maintenance costs be reduced with GIS RMU equipment?
The sealed gas-insulated design protects internal components from external contamination, reducing inspection frequency and maintenance requirements.
Conclusion
The 22kV SF6 GIS RMU Ring Main Unit Switchgear has become an essential component for modern medium-voltage power distribution systems. With advantages including compact structure, reliable operation, high safety standards, and strong environmental adaptability, it provides an effective solution for improving power network performance.
Wenzhou Huajidian Technology Co. Ltd. is committed to providing high-quality electrical equipment and professional solutions for customers worldwide. Whether for industrial power systems, urban distribution networks, or renewable energy projects, our advanced RMU switchgear products can help achieve safer and more efficient electricity management.
For more information about 22kV SF6 GIS RMU Ring Main Unit Switchgear, customized solutions, and professional technical support, please contact us today. Wenzhou Huajidian Technology Co. Ltd. is ready to provide reliable power distribution solutions for your next project.
