What Makes 33kV SF6 GIS Gas-Insulated Switchgear the Ideal Solution for Modern Power Systems?
2026-06-23
In today's rapidly evolving power infrastructure, reliability, safety, and compact design are critical requirements for medium-voltage substations. Among the most advanced technologies available, the 33kV SF6 GIS Gas-Insulated Switchgear stands out as a highly efficient and durable solution. It is widely used in urban power distribution, industrial facilities, renewable energy plants, and underground substations where space and stability are key concerns. Manufactured and supported by industry players such as Wenzhou Huajidian Technology Co. Ltd., this technology continues to redefine modern electrical distribution systems.
Unlike traditional air-insulated switchgear, GIS (Gas-Insulated Switchgear) uses sulfur hexafluoride (SF6) gas as an insulating medium. This allows the system to operate safely at higher voltages in a much smaller footprint, while maintaining superior arc-quenching performance and long service life.

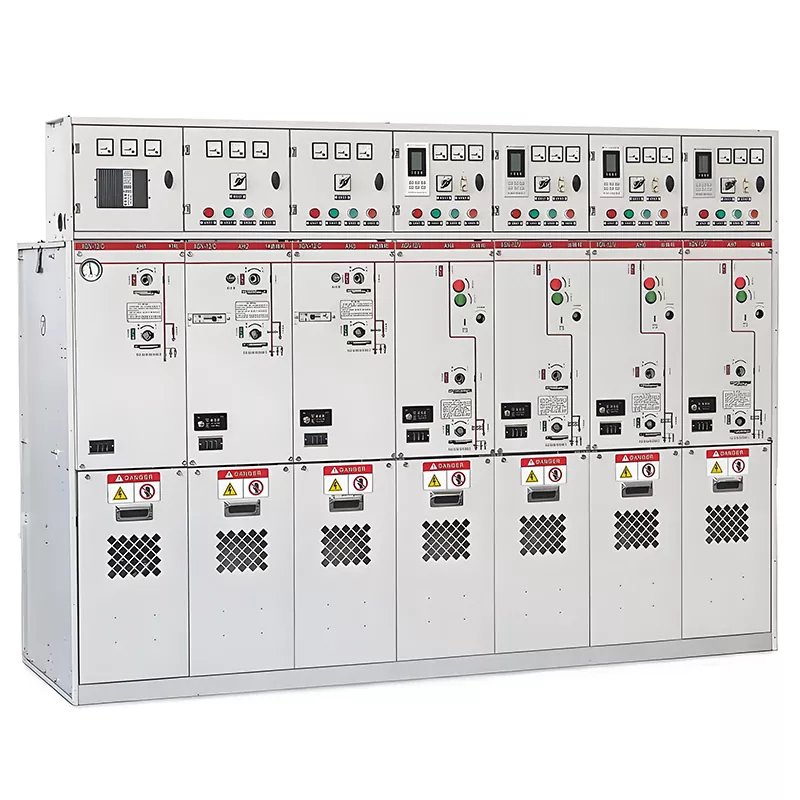

Overview of 33kV SF6 GIS Gas-Insulated Switchgear
The 33kV SF6 GIS Gas-Insulated Switchgear is designed for medium-voltage power distribution networks. It integrates key electrical components such as circuit breakers, isolators, busbars, and grounding switches into a sealed gas-insulated enclosure.
Key Functions:
- Power distribution and control
- Fault current interruption
- System protection and isolation
- Safe switching operations under load
Why Choose SF6 GIS Technology?
The popularity of GIS systems is driven by their technical advantages over conventional switchgear.
Advantages List:
- Compact design: Requires up to 70% less space than air-insulated systems
- High reliability: Sealed system reduces environmental contamination
- Enhanced safety: Fully enclosed live parts minimize accident risks
- Low maintenance: SF6 gas insulation reduces inspection frequency
- Long service life: Typically exceeds 30 years under normal operation
Technical Comparison Table
| Feature | SF6 GIS (33kV) | Air-Insulated Switchgear (AIS) |
|---|---|---|
| Space Requirement | Very compact | Large installation area |
| Insulation Medium | SF6 Gas | Air |
| Maintenance Frequency | Low | Medium to High |
| Safety Level | Very High | Moderate |
| Installation Cost | Higher initially | Lower initially |
| Lifecycle Cost | Lower long-term | Higher long-term |
Applications of 33kV SF6 GIS Gas-Insulated Switchgear
The versatility of GIS technology makes it suitable for various industries and environments:
Typical Applications:
- Urban power distribution substations
- Underground and indoor substations
- Renewable energy plants (solar & wind farms)
- Industrial manufacturing facilities
- Railway and metro power systems
Key Structural Features
The design of 33kV SF6 GIS Gas-Insulated Switchgear focuses on safety, efficiency, and durability.
Core Components:
- Gas-insulated circuit breaker unit
- Disconnector and earthing switch
- Busbar compartment
- Control and monitoring system
- Pressure monitoring device
Each component is sealed in a grounded metal enclosure filled with SF6 gas, ensuring stable insulation performance even under harsh environmental conditions.
Operational Benefits in Modern Power Systems
The integration of GIS technology significantly improves grid performance and operational stability.
Benefits Summary:
- Reduced outage risks due to fault isolation efficiency
- Improved urban installation feasibility due to compact design
- Strong resistance to environmental factors such as humidity, dust, and pollution
- Enhanced automation compatibility with smart grid systems
Industry Importance and Market Demand
With increasing urbanization and renewable energy integration, demand for compact and reliable substations is growing. The 33kV SF6 GIS Gas-Insulated Switchgear plays a critical role in:
- Supporting high-density urban electrical networks
- Enhancing renewable energy grid integration
- Improving power supply reliability in industrial zones
- Reducing land use costs for utility providers
Companies like Wenzhou Huajidian Technology Co. Ltd. continue to innovate in GIS manufacturing, ensuring higher efficiency, better safety standards, and improved cost-performance ratios for global clients.
Maintenance and Safety Considerations
Although GIS systems require less maintenance than traditional switchgear, periodic inspection is still necessary.
Maintenance Checklist:
- SF6 gas pressure monitoring
- Leakage detection checks
- Mechanical operation testing
- Control system diagnostics
- Insulation resistance verification
Proper handling of SF6 gas is also essential due to its environmental impact, requiring trained technicians and compliance with regulations.
Conclusion
The 33kV SF6 GIS Gas-Insulated Switchgear represents a modern, efficient, and highly reliable solution for today's demanding power distribution systems. Its compact structure, excellent insulation performance, and long operational life make it a preferred choice for utilities and industries worldwide.
With continuous innovation from manufacturers such as Wenzhou Huajidian Technology Co. Ltd., GIS technology is expected to play an even more important role in future smart grids and sustainable energy systems.
If you are looking for high-performance and cost-effective switchgear solutions, contact us today to learn more about our advanced 33kV SF6 GIS products and technical support.
