What Makes a 24KV Dry Type Transformer a Reliable Choice for Modern Power Distribution?

A reliable power distribution system is essential for industrial production, commercial buildings, and modern infrastructure. As electricity demand continues to grow, selecting the right transformer becomes increasingly important for operational safety, energy efficiency, and long-term cost control. A 24KV Dry Type Transformer is designed for medium-voltage power distribution applications where dependable voltage conversion and reduced oil-related risks are key considerations. With its solid insulation system and air-based cooling design, it can be an effective solution for facilities that require stable electricity without the maintenance demands associated with transformer oil. Yueqing Sarah Electric Co., Ltd. provides dry-type transformer solutions for different distribution requirements, helping customers identify equipment that matches their project specifications.

What Is a 24KV Dry Type Transformer?

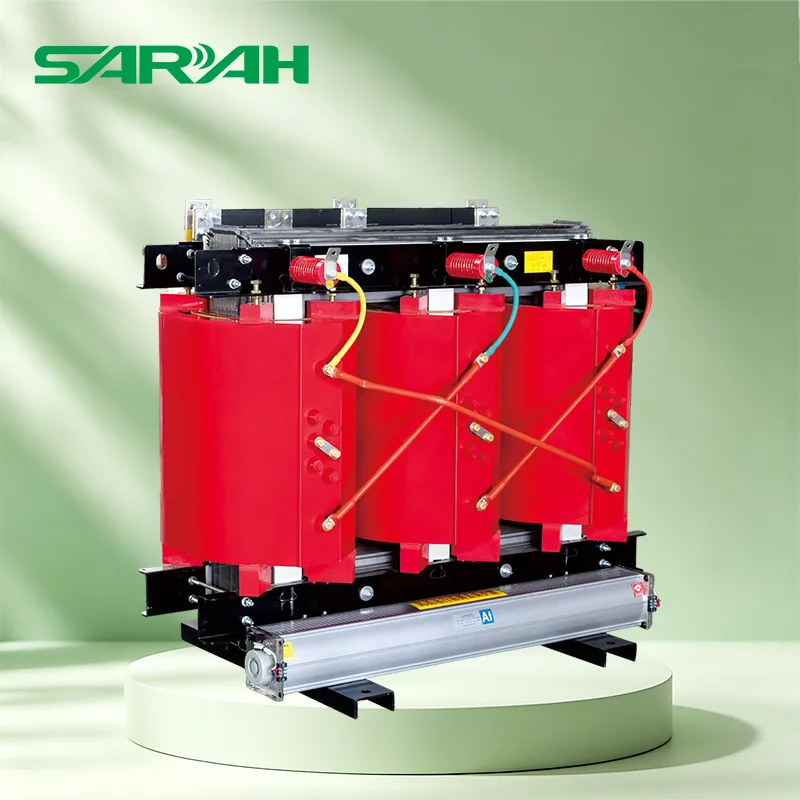

A 24KV Dry Type Transformer is a medium-voltage transformer designed for electrical systems operating at a specified 24 kV voltage class. Unlike oil-immersed transformers, it uses air and solid insulating materials rather than liquid insulation for its main insulation and cooling arrangements.

Depending on the design, its windings may use epoxy resin casting or other suitable insulation technologies. The magnetic core transfers energy between the primary and secondary windings, allowing the transformer to step voltage up or down according to the electrical system's requirements.

Typical components include:

• Magnetic core: Provides an efficient path for magnetic flux and helps reduce energy losses.

• High-voltage winding: Connects to the medium-voltage supply.

• Low-voltage winding: Delivers transformed power to downstream electrical equipment.

• Insulation system: Separates conductive components and helps maintain dielectric strength.

• Cooling structure: Dissipates heat through natural air circulation or, where designed, forced-air cooling.

The actual configuration depends on the transformer's rated capacity, insulation technology, cooling method, and installation environment.

Why Is a 24KV Dry Type Transformer Important?

Transformer selection affects more than voltage conversion. It also influences electrical safety, maintenance planning, operating expenses, and the reliability of connected equipment.

1. Improved Fire Safety for Indoor Installations

Because a dry-type transformer does not use insulating oil, it eliminates the risk of oil leakage and the fire hazards associated specifically with combustible insulating liquids. This makes it attractive for locations where fire protection and environmental considerations are important.

Common applications include hospitals, shopping centers, office buildings, data centers, and industrial facilities. However, the final installation must still comply with applicable fire codes, ventilation requirements, and electrical safety standards.

2. Reliable Medium-Voltage Power Distribution

A properly selected 24KV Dry Type Transformer supports voltage conversion between the incoming supply and the distribution network. Stable transformation helps connected equipment operate within its specified voltage range when the transformer is correctly sized and maintained.

This is particularly important for production lines, commercial facilities, and infrastructure projects where unexpected power interruptions can result in operational delays.

3. Lower Routine Maintenance Requirements

Dry-type transformers do not require oil sampling, oil filtration, or oil replacement. Routine maintenance generally focuses on cleaning, inspecting connections, checking insulation condition, and monitoring temperature in accordance with the manufacturer's instructions.

Although this can simplify maintenance planning, dry-type transformers are not completely maintenance-free. Inspection frequency should reflect the operating environment and the manufacturer's recommendations.

4. Support for Energy Efficiency

Core materials, winding resistance, insulation design, and operating load all influence transformer efficiency. A well-designed transformer can help reduce no-load and load losses, improving energy performance over its service life.

For buyers comparing different models, it is important to review guaranteed loss values rather than relying only on general energy-saving claims.

How Does a 24KV Dry Type Transformer Improve Operating Performance?

The practical benefits of a transformer depend on its engineering design and how closely its specifications match the application.

For example, a commercial building may prioritize indoor safety and low routine maintenance, while a manufacturing plant may place greater emphasis on load characteristics, thermal performance, and continuity of production.

The best results come from matching the transformer to the actual electrical load rather than choosing a model based on voltage rating alone.

Where Can a 24KV Dry Type Transformer Be Used?

A 24KV Dry Type Transformer can serve a variety of medium-voltage distribution applications, provided its electrical ratings and environmental design meet project requirements.

Industrial Manufacturing Plants

Factories use transformers to supply downstream distribution panels, machinery, and production systems. Correct sizing helps accommodate operating loads while controlling electrical losses and overheating risks.

Commercial Buildings

Office complexes, hotels, and shopping centers need dependable electricity for lighting, HVAC systems, elevators, and other building services. Dry-type transformers are often considered for indoor electrical rooms where oil-free equipment is preferred.

Hospitals and Data Centers

These facilities depend on reliable power infrastructure. Transformer selection should account for load growth, redundancy arrangements, harmonic distortion, and coordination with protective devices.

Infrastructure and Public Facilities

Transportation facilities, educational institutions, and other public buildings may benefit from dry-type transformer designs when indoor installation, environmental protection, and fire safety are priorities.

In every case, suitability depends on the project's actual voltage requirements, load profile, ambient conditions, and applicable electrical regulations.

Which Specifications Should Buyers Check Before Purchasing?

Choosing a 24KV Dry Type Transformer requires a technical review of the entire power distribution system.

Consider the following factors:

1. Rated voltage: Confirm the primary voltage class, secondary voltage, and system insulation requirements.

2. Rated capacity: Calculate the expected load and allow appropriate capacity for starting currents and future expansion.

3. Insulation technology: Compare cast-resin and other available designs according to environmental conditions and project needs.

4. Cooling method: Determine whether natural air cooling is sufficient or whether a supported forced-air option is required.

5. Energy losses: Request guaranteed no-load and load loss data for meaningful efficiency comparisons.

6. Protection and monitoring: Evaluate temperature sensors, protective relays, and monitoring interfaces where required.

7. Installation conditions: Check ambient temperature, humidity, altitude, ventilation, dust exposure, and enclosure protection.

8. Standards and testing: Confirm applicable requirements, such as IEC 60076-11 for dry-type transformers, and request relevant test documentation.

A professional technical review can help prevent undersizing, excessive losses, unsuitable installation arrangements, and unnecessary operating costs.

Why Consider Yueqing Sarah Electric Co., Ltd.?

Yueqing Sarah Electric Co., Ltd. supplies electrical equipment, including dry-type transformers for medium-voltage distribution applications. Its product information identifies the 24KV Dry Type Transformer as a solution for varied power distribution requirements.

For purchasing teams, selecting a supplier should involve more than comparing initial prices. It is important to establish whether the proposed equipment matches the project's technical specifications and whether the supplier can provide the documentation needed for engineering approval.

When evaluating a suitable model, buyers can discuss:

• Rated capacity and primary and secondary voltages.

• Core materials and winding configurations.

• Insulation technology and cooling arrangements.

• Protection accessories and enclosure requirements.

• Applicable standards, inspection procedures, and test reports.

• Delivery schedules and technical support requirements.

Confirm the availability of specific configurations, certifications, and customization options directly with the supplier before placing an order.

Conclusion

A 24KV Dry Type Transformer can be a practical choice for medium-voltage distribution systems that prioritize reliable voltage conversion, reduced oil-related risks, and simplified routine maintenance. Its overall performance depends on sound engineering, appropriate capacity selection, effective cooling, and compliance with the relevant electrical standards.

For industrial facilities, commercial buildings, and infrastructure projects, working with an experienced electrical equipment supplier helps make transformer selection more straightforward and supports long-term operating objectives.

Looking for a suitable 24KV Dry Type Transformer for your next project? Contact Yueqing Sarah Electric Co., Ltd. to discuss your voltage requirements, rated capacity, installation conditions, and technical specifications. Our team can help you explore suitable transformer solutions for your power distribution needs.
