What Makes a 3 Phase Air Circuit Breaker Essential for Modern Power Systems?
2026-07-14
In today's industrial and commercial electrical systems, reliable power protection is a key factor in ensuring safety, efficiency, and continuous operation. A 3 Phase Air Circuit Breaker is widely used in power distribution networks to protect electrical equipment from overloads, short circuits, and other abnormal conditions. With the increasing demand for stable electricity supply in factories, buildings, data centers, and infrastructure projects, selecting a high-quality air circuit breaker has become more important than ever. Shanghai DaDa Electric Co., Ltd. specializes in providing reliable electrical protection solutions, offering advanced circuit breakers designed to meet different application requirements.
What Is a 3 Phase Air Circuit Breaker?

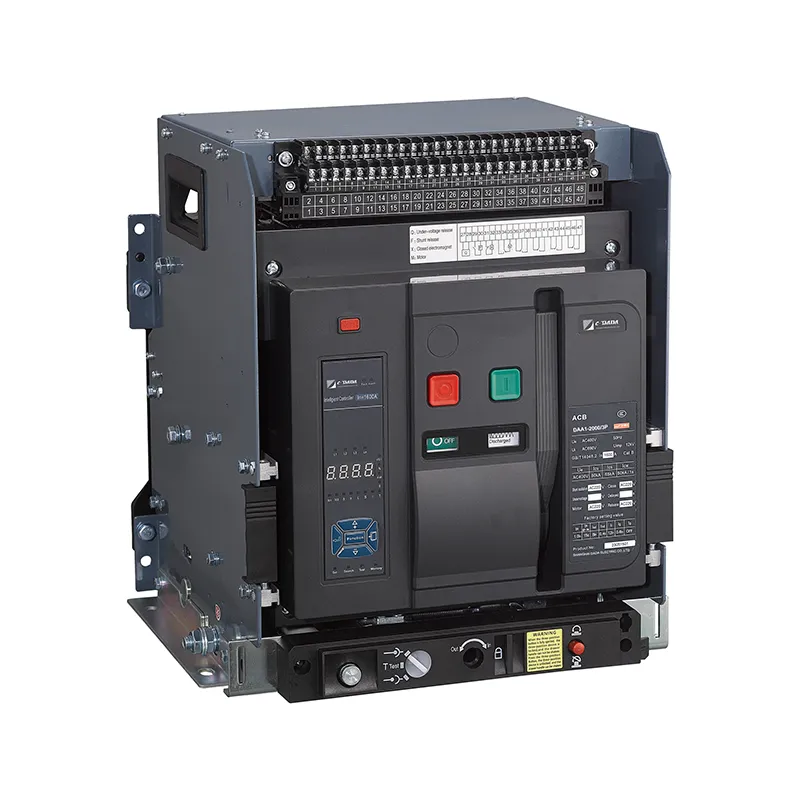

A 3 Phase Air Circuit Breaker is an automatic switching device designed to protect three-phase electrical circuits. Unlike traditional breakers that use oil or other insulating materials, air circuit breakers use air as the medium for arc extinguishing. When an electrical fault occurs, the breaker quickly disconnects the circuit to prevent damage to equipment and reduce safety risks.
Three-phase air circuit breakers are commonly installed in low-voltage power distribution systems, including industrial control panels, power stations, commercial buildings, and large electrical cabinets. They are designed to handle high current loads while providing reliable protection and convenient operation.
The main components of a 3 Phase Air Circuit Breaker usually include:
| Component | Function |
|---|---|
| Arc extinguishing system | Extinguishes electrical arcs safely during breaking operations |
| Operating mechanism | Controls opening and closing actions |
| Trip unit | Detects abnormal current conditions and triggers protection |
| Main contacts | Conduct electrical current under normal conditions |
| Protection module | Provides overload, short-circuit, and fault protection |
How Does a 3 Phase Air Circuit Breaker Work?
The working principle of a 3 Phase Air Circuit Breaker is based on monitoring current flow and automatically interrupting the circuit when dangerous conditions occur.
During normal operation, electrical current passes through the breaker contacts smoothly. When an overload or short circuit happens, the protection system detects the abnormal current level. The trip mechanism then activates and separates the contacts. At the same time, the arc generated between the contacts is controlled and extinguished through the air arc extinguishing system.
This rapid response helps prevent:
- Electrical equipment damage
- Power system instability
- Fire hazards caused by overheating
- Unexpected production downtime
Because of its fast protection response and high reliability, the 3 Phase Air Circuit Breaker has become an essential component in modern electrical distribution systems.
Why Is a 3 Phase Air Circuit Breaker Important?
Electrical systems in industrial environments often operate under heavy loads. Without proper protection devices, small electrical failures can lead to serious equipment damage and expensive maintenance costs.
A reliable 3 Phase Air Circuit Breaker provides several important advantages:
1. Enhanced Electrical Safety
Safety is the primary function of any circuit protection device. The breaker automatically disconnects faulty circuits, reducing the risk of electrical accidents and protecting operators from dangerous conditions.
2. Reliable Overload and Short-Circuit Protection
Power systems may experience sudden current increases due to equipment failures or unexpected operating conditions. The air circuit breaker quickly responds to these problems and prevents excessive current from damaging electrical components.
3. Improved System Stability
In large-scale power distribution networks, maintaining stable operation is critical. A high-performance circuit breaker minimizes interruptions and helps maintain a continuous power supply.
4. Easy Maintenance and Long Service Life
Modern air circuit breakers are designed for repeated operation and convenient maintenance. Their modular structure allows easier inspection, replacement, and upgrading.
3 Phase Air Circuit Breaker vs Traditional Circuit Protection Devices
Different electrical protection devices have different applications. Understanding their differences helps users select the most suitable solution.
| Feature | 3 Phase Air Circuit Breaker | Traditional Circuit Breaker |
|---|---|---|
| Protection capacity | Suitable for high-current applications | Usually designed for lower loads |
| Arc extinguishing method | Uses air technology | May use different insulating methods |
| Application range | Industrial, commercial, infrastructure projects | Residential and small electrical systems |
| Maintenance | Easier inspection and servicing | May have limited maintenance options |
| Operation reliability | Designed for frequent switching and protection | Depends on product type |
Compared with conventional protection devices, a 3 Phase Air Circuit Breaker offers stronger protection performance and greater adaptability for complex electrical environments.
What Are the Main Applications of a 3 Phase Air Circuit Breaker?
Due to its excellent protection capability, the 3 Phase Air Circuit Breaker is widely applied in various industries.
Industrial Manufacturing Facilities
Factories often require stable power distribution for production equipment, automation systems, and heavy machinery. Air circuit breakers help protect these systems from electrical failures.
Commercial Buildings
Shopping centers, office buildings, and large public facilities depend on reliable electrical systems. Circuit breakers ensure safe power distribution and reduce operational risks.
Power Distribution Stations
Power stations and substations require high-performance protection equipment. Three-phase air circuit breakers provide dependable protection for complex power networks.
Renewable Energy Systems
Solar power plants and other renewable energy projects also require advanced circuit protection solutions to ensure safe energy transmission.
How to Choose the Right 3 Phase Air Circuit Breaker?
Selecting the correct breaker requires careful consideration of electrical requirements and operating conditions.
Important factors include:
-
Rated Current Capacity
The breaker should match the expected load current of the electrical system. -
Breaking Capacity
A suitable breaking capacity ensures the breaker can safely interrupt fault currents. -
Protection Functions
Different applications may require overload protection, short-circuit protection, or advanced monitoring functions. -
Product Quality and Reliability
Choosing a trusted manufacturer helps ensure stable performance and long-term operation. -
Application Environment
Factors such as temperature, humidity, and installation conditions should be considered before selection.
Why Choose Shanghai DaDa Electric Co., Ltd. for Electrical Protection Solutions?
Shanghai DaDa Electric Co., Ltd. focuses on developing and supplying professional electrical products with reliable performance and advanced manufacturing technology. The company is committed to providing efficient power protection solutions for industrial, commercial, and infrastructure applications.
With attention to product quality, safety standards, and customer requirements, Shanghai DaDa Electric Co., Ltd. delivers electrical equipment designed to support modern power systems.
The company's advantages include:
- Professional electrical product manufacturing experience
- Strict quality control processes
- Solutions suitable for different application scenarios
- Reliable performance for long-term operation
- Support for customized electrical requirements
By choosing a trusted supplier, customers can improve electrical safety, reduce maintenance costs, and achieve more efficient power management.
Conclusion
A 3 Phase Air Circuit Breaker plays a vital role in modern electrical distribution systems by providing reliable protection against overloads, short circuits, and electrical failures. Its strong protection capability, high reliability, and wide application range make it an essential choice for industrial and commercial power systems.
As electrical demands continue to grow, selecting a dependable circuit protection solution is crucial for ensuring safe and stable operations. Shanghai DaDa Electric Co., Ltd. provides professional electrical solutions designed to meet various power protection needs. If you are looking for a reliable 3 Phase Air Circuit Breaker or customized electrical protection products, please contact us today to discuss your requirements and find the ideal solution for your project.
