What Makes a 4000 KVA Three Phase Oil Immersed Transformer Essential for Modern Power Systems?
2026-06-17
In today's rapidly expanding industrial and infrastructure sectors, reliable and efficient power distribution is more important than ever. The 4000 KVA Three Phase Oil Immersed Transformer plays a critical role in ensuring stable voltage conversion, safe energy transmission, and long-term operational reliability. Designed for high-capacity applications, this transformer type is widely used in power plants, large factories, commercial complexes, and utility substations. With advanced insulation technology and oil cooling systems, it provides superior performance under heavy load conditions. This article explores its functions, advantages, applications, and why it has become a preferred choice for modern power networks, including solutions offered by SYHF (Jiangsu) Electric Co., Ltd.

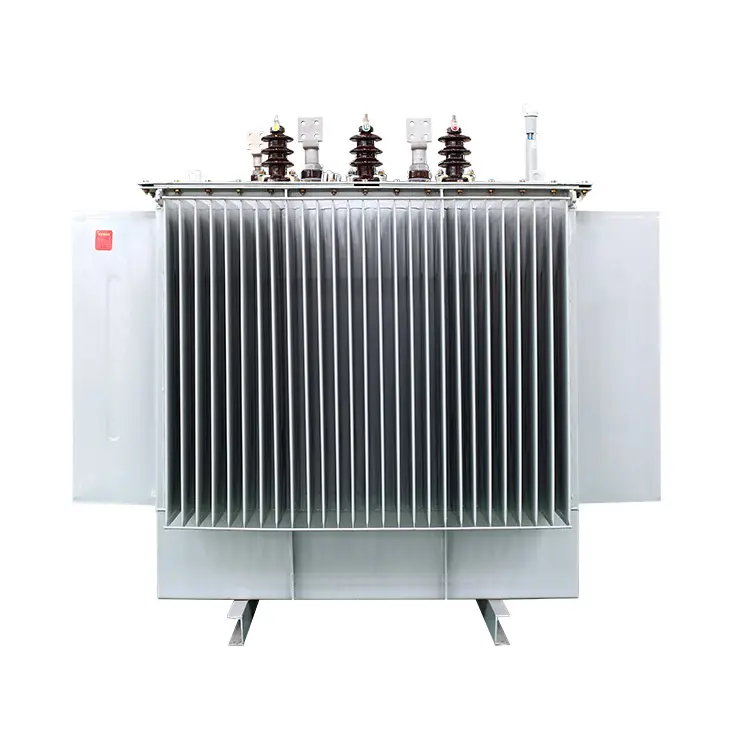

1. Overview of 4000 KVA Three Phase Oil Immersed Transformer
The 4000 KVA Three Phase Oil Immersed Transformer is a high-capacity electrical device designed to step up or step down voltage levels in three-phase power systems. It uses insulating oil as both a cooling and insulating medium, ensuring safe operation even under continuous heavy load.
Key characteristics include:
- High load-bearing capacity (4000 KVA rated power)
- Efficient heat dissipation through oil circulation
- Strong short-circuit resistance
- Long service life and low maintenance requirements
2. Working Principle
The transformer operates based on electromagnetic induction. When alternating current flows through the primary winding, it creates a magnetic field in the iron core, inducing voltage in the secondary winding.
Oil inside the tank plays two critical roles:
- Cooling medium: dissipates heat generated during operation
- Insulation medium: prevents electrical breakdown and enhances safety
This dual function ensures stable performance even in harsh environments.
3. Key Advantages
The 4000 KVA Three Phase Oil Immersed Transformer offers several technical and operational benefits:
- High efficiency with minimal energy loss
- Excellent thermal stability
- Strong overload capacity
- Reliable performance in outdoor and indoor installations
- Reduced operational noise
- Extended lifespan (typically over 20–25 years)
4. Technical Specifications Overview
| Parameter | Description |
|---|---|
| Rated Capacity | 4000 KVA |
| Phase Type | Three Phase |
| Cooling Method | Oil Immersed (ONAN/ONAF optional) |
| Frequency | 50/60 Hz |
| Insulation Class | High-grade mineral oil insulation |
| Application | Industrial, utility, infrastructure |
5. Applications Across Industries
The versatility of the 4000 KVA Three Phase Oil Immersed Transformer makes it suitable for a wide range of applications:
- Power generation plants
- Large manufacturing factories
- Mining operations
- Commercial skyscrapers
- Railway and transportation systems
- Renewable energy substations (solar/wind farms)
Its ability to handle high loads makes it indispensable in modern energy distribution networks.
6. Oil Immersed vs Dry Type Transformer
Understanding the difference helps in selecting the right solution:
| Feature | Oil Immersed Transformer | Dry Type Transformer |
|---|---|---|
| Cooling Method | Oil circulation | Air cooling |
| Capacity Range | High (up to 4000 KVA and above) | Medium to low |
| Maintenance | Moderate | Low |
| Cost Efficiency | High for large loads | Better for small installations |
| Application | Outdoor & heavy industry | Indoor commercial use |
The oil immersed type is clearly more suitable for high-capacity and heavy-duty environments.
7. Importance in Modern Power Systems
As industries expand and energy demand increases, stable power distribution becomes critical. The 4000 KVA Three Phase Oil Immersed Transformer ensures:
- Voltage stability across long-distance transmission
- Reduced power interruptions
- Improved energy efficiency
- Support for large-scale industrial growth
Without such transformers, modern infrastructure would face frequent overload risks and inefficiencies.
8. Engineering Excellence by SYHF (Jiangsu) Electric Co., Ltd.
SYHF (Jiangsu) Electric Co., Ltd. focuses on delivering high-quality transformer solutions designed for durability, efficiency, and safety. With advanced manufacturing techniques and strict quality control systems, SYHF ensures each 4000 KVA Three Phase Oil Immersed Transformer meets international performance standards.
Their products are engineered for:
- High electrical reliability
- Enhanced insulation performance
- Low failure rates
- Long-term operational stability
This makes SYHF a trusted partner for global energy infrastructure projects.
9. Maintenance and Operational Tips
To maximize performance and lifespan:
- Regularly check oil levels and quality
- Inspect cooling systems for proper operation
- Monitor load conditions to avoid overload
- Perform periodic insulation testing
- Keep the transformer environment clean and dry
Proper maintenance significantly extends service life and ensures stable operation.
Conclusion
The 4000 KVA Three Phase Oil Immersed Transformer is a cornerstone of modern power distribution systems, offering unmatched efficiency, durability, and load-handling capability. Its advanced oil cooling technology and robust design make it ideal for demanding industrial and utility applications. With reliable engineering support from SYHF (Jiangsu) Electric Co., Ltd., users can achieve long-term performance stability and energy efficiency.
If you are looking for a high-performance transformer solution tailored to your project needs, contact us today to learn more about specifications, pricing, and customized solutions for your power system requirements.
