What Makes a DC Solar MCB Circuit Breaker Essential for Modern Solar Power Systems?
2026-07-22
With the rapid development of renewable energy, solar power systems have become an important solution for residential, commercial, and industrial electricity needs. However, stable and safe operation of solar installations depends on reliable protection components. A DC Solar MCB Circuit Breaker plays a critical role in protecting photovoltaic systems from electrical faults, overloads, and short circuits. Designed specifically for direct current applications, it helps improve system safety, efficiency, and long-term reliability. As a professional electrical equipment provider, Zhejiang Dabo Electric Co., Ltd. focuses on supplying high-quality circuit protection solutions that meet the requirements of modern solar energy applications.

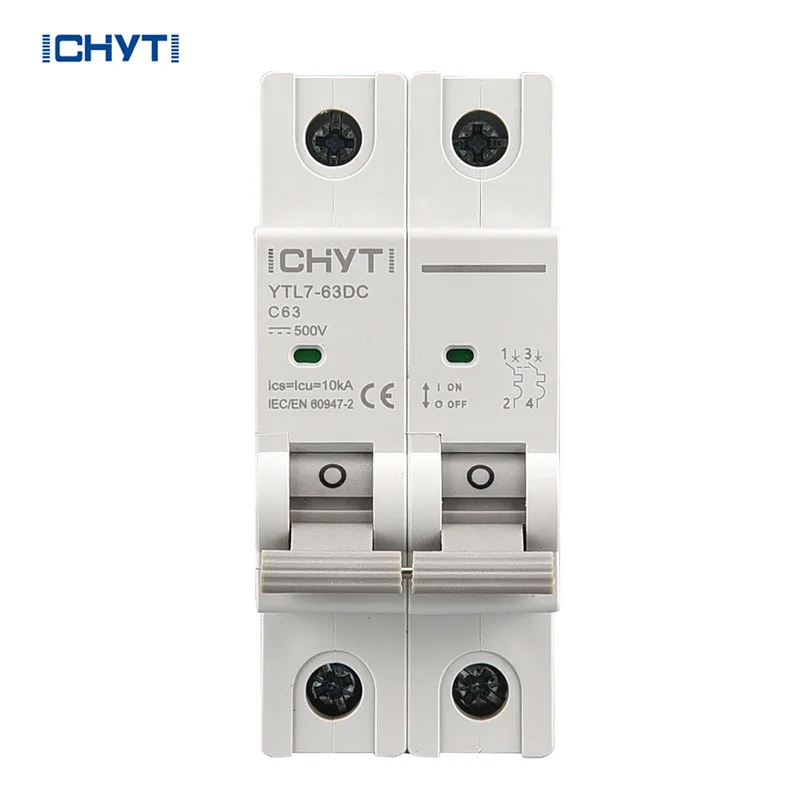

What Is a DC Solar MCB Circuit Breaker?
A DC Solar MCB Circuit Breaker is a miniature circuit breaker specially designed for photovoltaic and DC power systems. Unlike traditional AC circuit breakers, DC MCBs are engineered to handle continuous direct current flow and higher voltage levels commonly found in solar installations.
In solar power systems, electricity generated by photovoltaic panels is transmitted as DC power before being converted into AC power through an inverter. During this process, abnormal conditions such as overcurrent, short circuits, or equipment failures may occur. A DC Solar MCB Circuit Breaker quickly disconnects the electrical circuit when dangerous conditions are detected, preventing damage to solar panels, inverters, batteries, and other electrical components.
The main components usually include:
| Component | Function |
|---|---|
| Housing | Provides insulation and mechanical protection |
| Contact System | Controls current connection and disconnection |
| Arc Extinguishing System | Reduces electrical arc risks during switching |
| Trip Mechanism | Automatically disconnects the circuit during faults |
| Terminal Connection | Ensures stable electrical installation |
Why Is a DC Solar MCB Circuit Breaker Important for Solar Systems?
Solar power systems often operate under outdoor conditions with changing temperatures, sunlight intensity, and electrical loads. Without proper protection, unexpected electrical problems may reduce system performance or create safety hazards.
A reliable DC Solar MCB Circuit Breaker provides several important benefits:
1. Enhanced Electrical Safety
The primary function of a DC Solar MCB Circuit Breaker is protecting electrical equipment and users. When excessive current flows through the system, the breaker automatically interrupts the circuit to prevent overheating, component failure, and potential fire risks.
This protection is especially important for solar installations because DC current behaves differently from AC current. DC electrical arcs are more difficult to extinguish, requiring specialized breaker designs with efficient arc suppression technology.
2. Protection Against Overload and Short Circuit
Solar systems may experience overload situations due to incorrect wiring, equipment aging, or unexpected operating conditions. A DC Solar MCB Circuit Breaker detects abnormal current levels and disconnects the circuit before serious damage occurs.
Its protection functions include:
- Overload protection
- Short circuit protection
- Electrical isolation
- Equipment safety improvement
3. Improved Solar System Reliability
A properly installed DC Solar MCB Circuit Breaker helps maintain stable system operation. By preventing electrical failures from spreading throughout the system, it reduces downtime and extends the service life of solar equipment.
For solar farms, commercial buildings, and residential photovoltaic systems, reliable circuit protection directly affects energy efficiency and maintenance costs.
How Does a DC Solar MCB Circuit Breaker Work?
The working principle of a DC Solar MCB Circuit Breaker is based on automatic current monitoring and mechanical switching.
When the electrical current remains within the normal range, the breaker allows continuous power transmission. If the current exceeds the safe limit, the internal trip mechanism activates and separates the contacts, stopping the current flow.
The operation process can be explained as follows:
- Solar panels generate DC electricity.
- Current passes through the DC protection circuit.
- The MCB continuously monitors electrical conditions.
- Excessive current triggers the trip mechanism.
- The circuit is disconnected to protect the system.
This fast response helps prevent damage and ensures safer operation of photovoltaic equipment.
What Are the Main Applications of DC Solar MCB Circuit Breakers?
A DC Solar MCB Circuit Breaker is widely used in different renewable energy applications. Common application areas include:
| Application | Protection Role |
|---|---|
| Residential Solar Systems | Protects household photovoltaic equipment |
| Commercial Solar Projects | Ensures stable power generation |
| Solar Farms | Provides large-scale electrical protection |
| Battery Storage Systems | Protects DC energy storage circuits |
| Off-Grid Solar Systems | Improves reliability in remote areas |
Whether used in small rooftop solar systems or large renewable energy projects, DC MCB technology provides essential electrical protection.
DC Solar MCB Circuit Breaker vs Traditional AC Circuit Breaker
Although both devices provide circuit protection, they are designed for different electrical environments.
| Feature | DC Solar MCB Circuit Breaker | Traditional AC Circuit Breaker |
|---|---|---|
| Current Type | Direct Current (DC) | Alternating Current (AC) |
| Arc Control | Designed for DC arc suppression | Designed for AC arc interruption |
| Application | Solar systems, batteries, DC equipment | Household and industrial AC circuits |
| Voltage Handling | Suitable for photovoltaic DC voltage | Mainly for AC voltage systems |
| Safety Performance | Optimized for renewable energy systems | General electrical protection |
Choosing the correct breaker type is essential because using an unsuitable circuit breaker may reduce protection performance and affect system safety.
How to Choose a High-Quality DC Solar MCB Circuit Breaker?
Selecting the right DC Solar MCB Circuit Breaker requires consideration of several technical factors.
Important selection points include:
Rated Voltage
The breaker voltage rating should match or exceed the maximum DC voltage of the solar system. Proper voltage compatibility ensures safe operation.
Rated Current
The rated current should be selected according to the expected operating current of the photovoltaic system. An appropriate rating prevents unnecessary tripping while maintaining effective protection.
Breaking Capacity
A higher breaking capacity allows the breaker to safely interrupt larger fault currents, improving overall system protection.
Product Quality and Certification
High-quality materials and strict manufacturing standards contribute to better durability, reliability, and safety performance.
As an experienced electrical product manufacturer, Zhejiang Dabo Electric Co., Ltd. provides dependable circuit protection products designed to meet various solar energy requirements.
What Are the Usage Effects of DC Solar MCB Circuit Breakers?
The installation of a reliable DC Solar MCB Circuit Breaker brings noticeable improvements to solar system performance.
Key usage effects include:
- Reduced risk of electrical damage
- Improved system stability
- Safer maintenance and inspection
- Longer equipment service life
- Lower operational and repair costs
For installers and solar project developers, selecting suitable DC protection devices can significantly improve the overall quality of photovoltaic systems.
The Role of Zhejiang Dabo Electric Co., Ltd. in Solar Circuit Protection
With professional manufacturing capabilities and experience in electrical products, Zhejiang Dabo Electric Co., Ltd. is committed to providing efficient and reliable circuit protection solutions for global customers.
The company focuses on product quality, technical innovation, and customer requirements. Its DC electrical protection products are designed to support the growing demand for renewable energy systems and provide dependable safety solutions for solar applications.
By combining advanced production technology with strict quality control, Zhejiang Dabo Electric Co., Ltd. helps customers build safer, more efficient, and more durable solar power systems.
Frequently Asked Questions About DC Solar MCB Circuit Breaker
1. Why is a DC Solar MCB Circuit Breaker needed in photovoltaic systems?
A DC Solar MCB Circuit Breaker protects solar equipment from overloads, short circuits, and electrical faults, improving system safety and reliability.
2. Can a DC Solar MCB Circuit Breaker be used for AC applications?
No. DC Solar MCB Circuit Breakers are specially designed for direct current systems and should be used according to their rated specifications.
3. How often should a solar MCB circuit breaker be inspected?
Regular inspection is recommended according to system conditions and maintenance requirements to ensure stable performance.
4. What makes a high-quality DC Solar MCB Circuit Breaker different?
High-quality products provide better arc control, stronger durability, accurate protection performance, and improved safety.
Conclusion
A DC Solar MCB Circuit Breaker is an essential protection component for modern photovoltaic systems. It improves electrical safety, protects valuable solar equipment, and ensures stable energy production. As solar technology continues to expand worldwide, reliable DC circuit protection becomes increasingly important.
With professional expertise, advanced manufacturing capabilities, and a commitment to quality, Zhejiang Dabo Electric Co., Ltd. provides trusted solar circuit protection solutions for different applications. For more information about high-performance DC Solar MCB Circuit Breakers and customized electrical solutions, please contact us today. Our professional team is ready to provide reliable products and support for your solar energy projects.
