What Makes a Handcart Type Vacuum Circuit Breaker the Ideal Choice for Modern Power Systems?

In today's rapidly developing electrical industry, reliable power distribution equipment plays a critical role in ensuring safety, stability, and efficiency. A Handcart Type Vacuum Circuit Breaker has become an important solution for medium-voltage power systems due to its excellent insulation performance, flexible installation design, and convenient maintenance features. Compared with traditional fixed circuit breakers, this type of breaker provides easier replacement, inspection, and operation, making it widely used in substations, industrial facilities, power plants, and infrastructure projects. With advanced manufacturing capabilities, Zhejiang SanGao Electric Co., Ltd. provides high-quality vacuum circuit breaker solutions with strong customization capabilities, including ship-type customization to meet the special requirements of marine and offshore applications.

What Is a Handcart Type Vacuum Circuit Breaker?

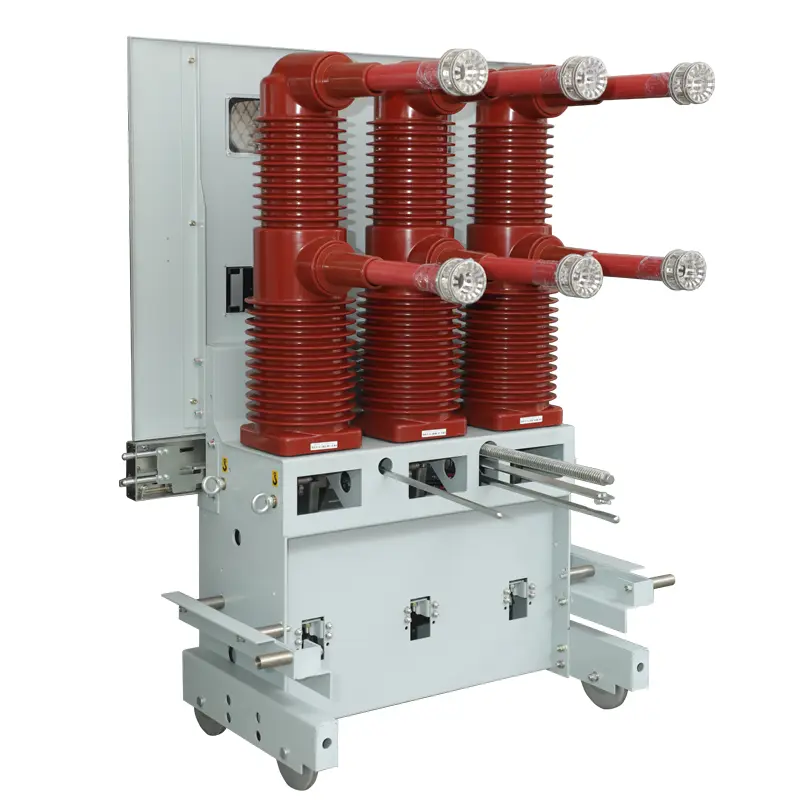

A Handcart Type Vacuum Circuit Breaker is a medium-voltage switching device that uses a vacuum interrupter as the arc-extinguishing medium. Unlike fixed installation breakers, the circuit breaker is mounted on a movable handcart structure, allowing operators to easily move the breaker between working and testing positions.

The vacuum environment inside the interrupter helps quickly extinguish electrical arcs, reducing contact wear and improving operational reliability. The handcart design also allows faster maintenance because the breaker body can be removed without affecting the main switchgear structure.

The main components usually include:

This structure makes the Handcart Type Vacuum Circuit Breaker an ideal choice for applications requiring frequent operation, high safety standards, and efficient maintenance.

Why Is a Handcart Type Vacuum Circuit Breaker Important?

Power systems require equipment that can handle sudden current changes, short circuits, and demanding operating environments. A reliable circuit breaker is not only responsible for disconnecting faulty circuits but also protecting expensive electrical equipment and ensuring continuous power supply.

The importance of this equipment can be reflected in several aspects:

1. Enhanced Electrical Safety

Electrical faults can cause serious damage if they are not controlled quickly. A Handcart Type Vacuum Circuit Breaker can rapidly interrupt abnormal currents, reducing the risk of equipment failure, fire, and power system instability.

The vacuum interrupter technology provides:

• Fast arc extinction
• High insulation strength
• Reduced contact erosion
• Long electrical service life

These features help create a safer operating environment for engineers and electrical systems.

2. Convenient Maintenance and Operation

One major advantage of the handcart structure is its mobility. Operators can easily move the breaker into different positions, including service position, test position, and isolation position.

Compared with fixed circuit breakers, the handcart design offers:

• Faster inspection procedures
• Reduced maintenance downtime
• Easier component replacement
• Improved operational flexibility

For large industrial projects where continuous operation is essential, these advantages significantly improve efficiency.

How Does a Handcart Type Vacuum Circuit Breaker Work?

The working principle of a Handcart Type Vacuum Circuit Breaker is based on controlling electrical current through vacuum arc interruption technology.

During normal operation, the circuit breaker maintains a closed connection and allows current flow. When a fault occurs, the operating mechanism separates the contacts inside the vacuum interrupter. Because there is no air inside the chamber, the electrical arc is quickly extinguished, stopping current flow and protecting the power network.

The basic working process includes:

1. Normal Operation
   The contacts remain connected, allowing electricity to pass through the system.
2. Fault Detection
   Protective devices detect abnormal current conditions.
3. Contact Separation
   The operating mechanism quickly opens the contacts.
4. Arc Extinction
   The vacuum environment eliminates the arc and interrupts the current.
5. System Protection
   Damaged equipment and connected systems are protected from further impact.

What Are the Main Advantages of This Circuit Breaker?

A Handcart Type Vacuum Circuit Breaker offers multiple advantages compared with conventional switching equipment.

These advantages make it suitable for various industries, including:

• Power distribution networks
• Manufacturing plants
• Mining facilities
• Transportation infrastructure
• Marine engineering projects
• Offshore platforms

Why Choose Customized Handcart Type Vacuum Circuit Breakers for Ships?

Marine electrical systems have unique requirements due to limited installation space, vibration, humidity, salt spray, and strict safety standards. Standard electrical equipment may not always meet these special operating conditions.

Zhejiang SanGao Electric Co., Ltd. focuses on providing customized Handcart Type Vacuum Circuit Breaker solutions, including ship-type customization designed for marine applications.

Customized solutions can include:

Ship-Specific Structural Design

Marine environments require equipment that can adapt to special installation conditions. Customized structures can be developed according to vessel layouts, space limitations, and operational requirements.

Enhanced Environmental Adaptability

Ship applications often require improved resistance against:

• High humidity
• Salt corrosion
• Mechanical vibration
• Temperature changes

Customized protection designs help ensure stable operation in challenging marine environments.

Flexible Technical Configuration

Different ships and offshore projects may require different electrical parameters. Customized solutions allow adjustments in:

• Rated voltage
• Current capacity
• Installation dimensions
• Control methods
• Communication interfaces

This flexibility helps customers achieve better compatibility with their electrical systems.

How Does Zhejiang SanGao Electric Co., Ltd. Support Customer Projects?

As an experienced electrical equipment manufacturer, Zhejiang SanGao Electric Co., Ltd. focuses on delivering reliable medium-voltage solutions for global customers. The company combines advanced production technology with engineering experience to provide products that meet different application requirements.

The company's advantages include:

• Professional electrical equipment manufacturing experience
• Flexible OEM and customization services
• Strict quality control processes
• Solutions for industrial and marine applications
• Support for special project requirements

Whether for power distribution systems, industrial facilities, or ship electrical networks, customized Handcart Type Vacuum Circuit Breakers can provide dependable protection and efficient operation.

Handcart Type Vacuum Circuit Breaker vs Fixed Vacuum Circuit Breaker

For projects requiring frequent maintenance, flexible operation, or special installation environments, the Handcart Type Vacuum Circuit Breaker provides significant advantages.

What Applications Use Handcart Type Vacuum Circuit Breakers?

Due to their reliability and flexibility, these circuit breakers are widely applied in many fields.

Common applications include:

• Power substations: Protecting transmission and distribution equipment.
• Industrial factories: Ensuring stable electricity supply for production lines.
• Marine vessels: Supporting safe ship power management through customized designs.
• Offshore platforms: Providing reliable switching performance in harsh environments.
• Infrastructure projects: Protecting critical electrical systems.

Future Development Trends of Vacuum Circuit Breaker Technology

With increasing demand for intelligent power systems, vacuum circuit breakers are continuously improving. Future development trends include smarter monitoring systems, improved energy efficiency, and stronger environmental adaptability.

Modern Handcart Type Vacuum Circuit Breakers are expected to integrate:

• Digital monitoring technology
• Remote control functions
• Intelligent fault diagnosis
• More compact designs
• Higher customization levels

These innovations will help electrical systems become safer, more efficient, and easier to manage.

Conclusion

A Handcart Type Vacuum Circuit Breaker is an advanced medium-voltage protection device that combines safety, reliability, and operational flexibility. Its movable structure, low maintenance requirements, and excellent interruption performance make it an essential solution for modern power distribution systems.

For customers with special requirements, especially marine and offshore projects, Zhejiang SanGao Electric Co., Ltd. provides professional customized solutions, including ship-type designs that improve equipment compatibility and operational reliability.

If you are looking for a reliable Handcart Type Vacuum Circuit Breaker manufacturer with professional customization capabilities and ship application experience, contact us today. Zhejiang SanGao Electric Co., Ltd. is ready to provide efficient electrical solutions tailored to your project needs.
